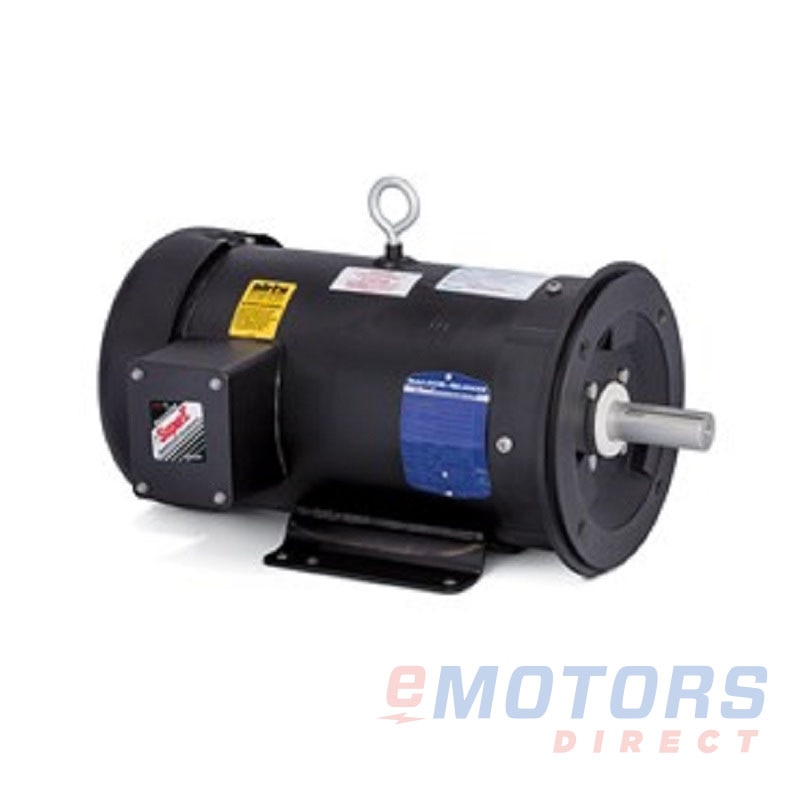

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor DM3542

Baldor · Dirty Duty Plus, 3HP, TEFC, foot mounted
3/4 HP 1725 56 TEFC 230V|460V General Purpose AC Motors
Catalog Number: DM3542
HP
3/4
RPM
1800
Voltage
230V,460V
Frame
56
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor Dirty Duty Plus 3HP, three-phase motor is built for demanding industrial environments, offering superior performance and durability. Featuring a Totally Enclosed Fan-Cooled (TEFC) design, it provides excellent protection against dust, dirt, and moisture, ensuring reliable operation in harsh conditions. The foot-mounted configuration ensures secure installation and stability, while the motor's robust construction is ideal for applications that require long-lasting performance. Designed to handle tough tasks, the Dirty Duty Plus motor is perfect for industries where environmental conditions are challenging, delivering consistent power and efficiency for a wide range of applications.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Dirty Duty Plus, 3HP, TEFC, foot mounted (2)

DM35381/21725208V, 230V, 460V56 $690.00
DM35423/41725230V, 460V56 $720.84

Dirty Duty Plus, 3HP, TEFC, foot mounted

Features

  • Durable cast iron endplates and conduit box for enhanced strength
  • 300 series stainless steel shaft extension for corrosion resistance
  • Two-part epoxy paint system that passes over 2,000 hours of salt fog testing (per ASTM B 117)
  • Permanently lubricated, double-sealed ball bearings for reduced maintenance
  • IP56-rated enclosure with labyrinth shaft seals, gasketed conduit box, and cover for superior protection
  • Inverter Duty rated for compatibility with variable frequency drives
  • Meets IEEE 45 standards, as indicated on the nameplate
  • Class F insulation with a 1.15 service factor, operating within Class "B" temperature limits at rated horsepower

Applications

  • Chemical, oil, and gas industries
  • Coastal marine environments
  • Pulp and paper, as well as forest product industries
Electrical Data
Rated Motor Output Power
3/4 HP
Rated Motor Speed
1725 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
1.4 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
-
Nominal Efficiency
74
Nominal Power Factor
68
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
34lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.85"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cCSAus, CSA EEV, UR
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
