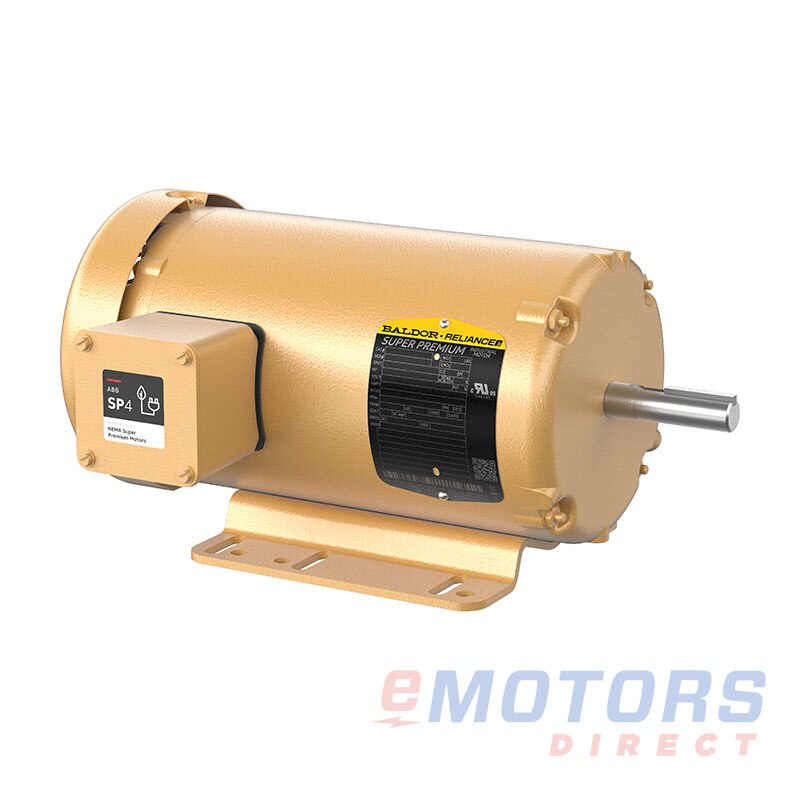

Baldor SPM3542

Baldor · Super Premium SP4 General purpose, three phase, totally enclosed, foot mounted
3/4 HP 1735 56H TEFC 230V|460V General Purpose AC Motors
Catalog Number: SPM3542
HP
3/4
RPM
1800
Voltage
230V,460V
Frame
56H
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Super Premium SP4 General Purpose motor from Baldor is designed for efficiency and durability, with 60 Hz ratings and 50 Hz information available for 2, 4, and 6 pole 1-20 horsepower models. It is suitable for inverter use in accordance with NEMA MG1 Part 31.4.4.2, unless specified otherwise. Featuring a simple F1 to F2 conversion on cast iron frames, this motor is built to last, offering a 4-year warranty on Super Premium Efficient SP4 motors. Ideal for a wide range of applications, it excels in powering industrial systems, including HVAC systems, industrial fans and blowers, pumping systems, conveyors, compressors, and general-purpose manufacturing machinery.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Baldor: Super Premium SP4 General purpose, three phase, totally enclosed, foot mounted (54)

SPNM34571/33450230V, 460V48 $969.38
SPM35341/31740230V, 460V56H $1,043.95
SPNM35341/31740230V, 460V56H $1,120.37
SPM35371/23450230V, 460V56H $1,124.11
SPM34601/23450230V, 460V48 $1,124.11
SPM34581/31740230V, 460V48 $1,163.26
SPM35413/43450230V, 460V56H $1,237.82
SPM34633/43450230V, 460V48 $1,237.82
SPM35423/41735230V, 460V56H $1,276.97
SPNM35381/21725230V, 460V56H $1,299.35
SPM34611/21725230V, 460V48 $1,362.73
SPM34643/41735230V, 460V48 $1,472.72
SPM35311/41150230V, 460V56H $1,485.77
SPM35351/31140230V, 460V56H $1,670.32
SPM35391/21140230V, 460V56H $1,798.94
SPM35381/21725230V, 460V56H $1,798.94
SPM3543T3/41175230V, 460V143T $1,836.23
SPM35433/41175230V, 460V56H $1,836.23
SPM354513450230V, 460V56H $1,968.59
SPNM35391/21140230V, 460V56H $1,976.04
SPM3546T11770230V, 460V143T $2,011.46
SPM354611770230V, 460V56H $2,011.46
SPM3550T1 1/23500230V, 460V143T $2,227.71
SPM35501 1/23500230V, 460V56H $2,227.71
SPM3554T1 1/21770230V, 460V145T $2,235.18
SPM35541 1/21770230V, 460V56H $2,235.18
SPNM3546T11770230V, 460V143T $2,265.00
SPNM354611770230V, 460V56H $2,265.00
SPM3558T21765230V, 460V145T $2,363.79
SPM3611T31765230V, 460V182T $2,425.31
SPM3555T23475230V, 460V145T $2,440.23
SPM355523475230V, 460V56H $2,440.23
SPM3615T51755230V, 460V184T $2,505.48
SPNM3554T1 1/21770230V, 460V145T $2,516.67
SPM3556T11170230V, 460V145T $2,596.82
SPM355611170230V, 460V56H $2,596.82
SPM3610T33500230V, 460V182T $2,706.81
SPM3613T53475230V, 460V184T $3,001.36
SPM3607T1 1/21175230V, 460V182T $3,036.77
SPM3614T21175230V, 460V184T $3,184.04
SPM3710T7 1/21775230V, 460V213T $3,612.80
SPM3714T101775230V, 460V215T $4,078.86
SPM3704T31165230V, 460V213T $4,140.38
SPM3709T7 1/23520230V, 460V213T $4,496.44
SPM3711T103500230V, 460V215T $4,557.95
SPM3708T51165230V, 460V215T $4,679.14
SPM3713T153515230V, 460V215T $6,431.48
SPM3910T151770230V, 460V254T $7,097.62
SPM3914T201775230V, 460V256T $8,465.84
SPNM35423/41735230V, 460V56H Contact for Pricing

Super Premium SP4 General purpose, three phase, totally enclosed, foot mounted

Features

  • Available in 60 Hz designs, with 50 Hz details for 2, 4, and 6-pole motors in 1-20 Hp ratings
  • Inverter-compatible per NEMA MG1 Part 31.4.4.2, unless noted otherwise
  • Easy F1 to F2 conversion on cast iron frames
  • Built for durability with a 4-year warranty on Super Premium Efficient SP4® motors

Applications

  • HVAC systems
  • Industrial fans and blowers
  • Pumping systems
  • Conveyor belts
  • Compressor units
  • Manufacturing machinery
  • General industrial use
Electrical Data
Rated Motor Output Power
3/4 HP
.5625 kW
Rated Motor Speed
1735 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
1.9/0.95 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
N
Nominal Efficiency
84
Nominal Power Factor
87
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56H
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
40lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
13.72"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
24 °C
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.88"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus
Country of Origin
USA
Warranty
4-Year
