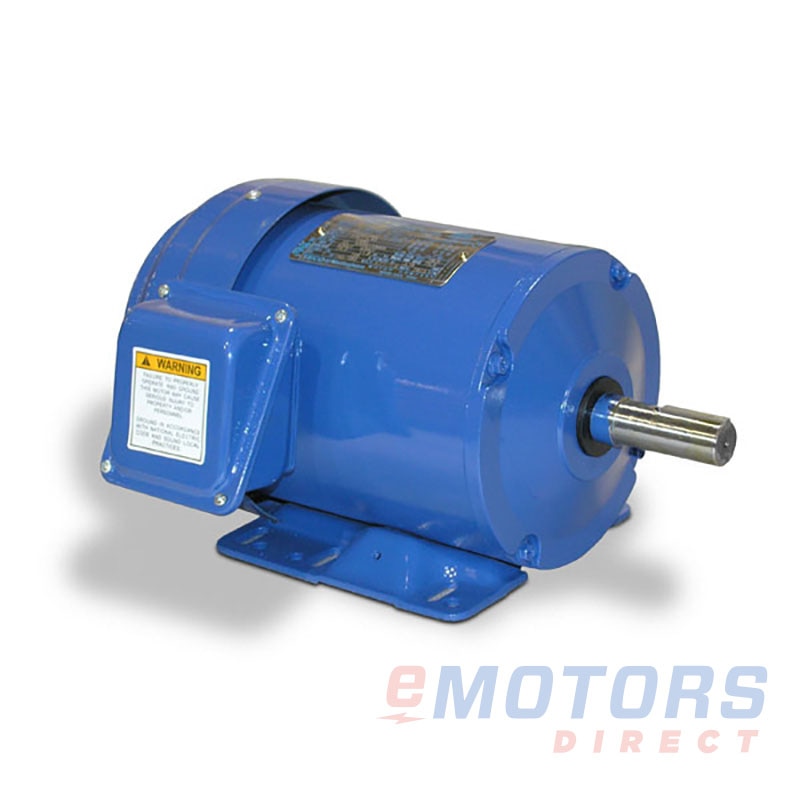

TECO-Westinghouse GH0/74

TECO Westinghouse
3/4HP 1800 56 TEFC 230V|460V General Purpose AC Motor
Catalog Number: GH0/74
HP
3/4
RPM
1800
Voltage
230V,460V
Frame
56
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
3/4 HP
.5625 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
2.23/1.12 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
81.1
Nominal Power Factor
77.5
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
WYE
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:01
3
Constant Torque
10:01
6
General Data
Frame
56
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
25lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.16
NEMA Design
B
Degree of Protection (IP)
IP44
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6204ZZ
NDE Bearing
6203ZZ
Shaft Diameter
0.625
Shaft Length
1.875
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
CHINA
Warranty
3-Year
