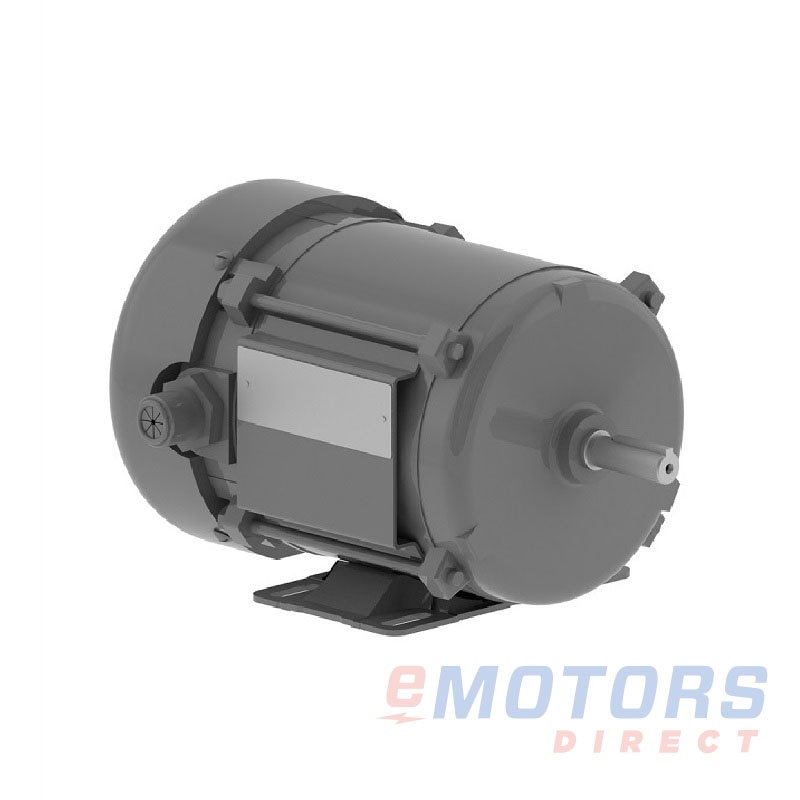

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

WEG XF.50104

WEG · NEMA Premium Explosion Proof 56 Frame
5.0
1/2 HP 1800 56 TEFC-XP 115V,208-230V Explosion Proof Motors
Catalog Number: XF.50104
HP
1/2
RPM
1800
Voltage
115V,208-230V
Frame
56
Phase
1
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

WEG Explosion Proof NEMA 56 Motors are designed for operation in hazardous locations containing flammable liquids, explosive gases and dust.

Feature

  • Single-phase, 4 poles, 60HZ, Service Factor 1.15
  • Voltage:115/208-230V
  • Totally Enclosed Fan Cooled (IP44)
  • Continuous Duty (S1)
  • Overload protection:Automatic Thermostats
  • 104°F (40°C) ambient temperature
  • Insulation class ‘B’ (Δt 80°C)
  • Terminal box included
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
7.4/3.7 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
4.09
Service Factor
1.15
KVA Code
-
Nominal Efficiency
68.6
Nominal Power Factor
63
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
36.8lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
12.204"
NEMA Design
-
Degree of Protection (IP)
IP44
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3C
Mechanical Data
DE Bearing
6203-ZZ
NDE Bearing
6203-ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
