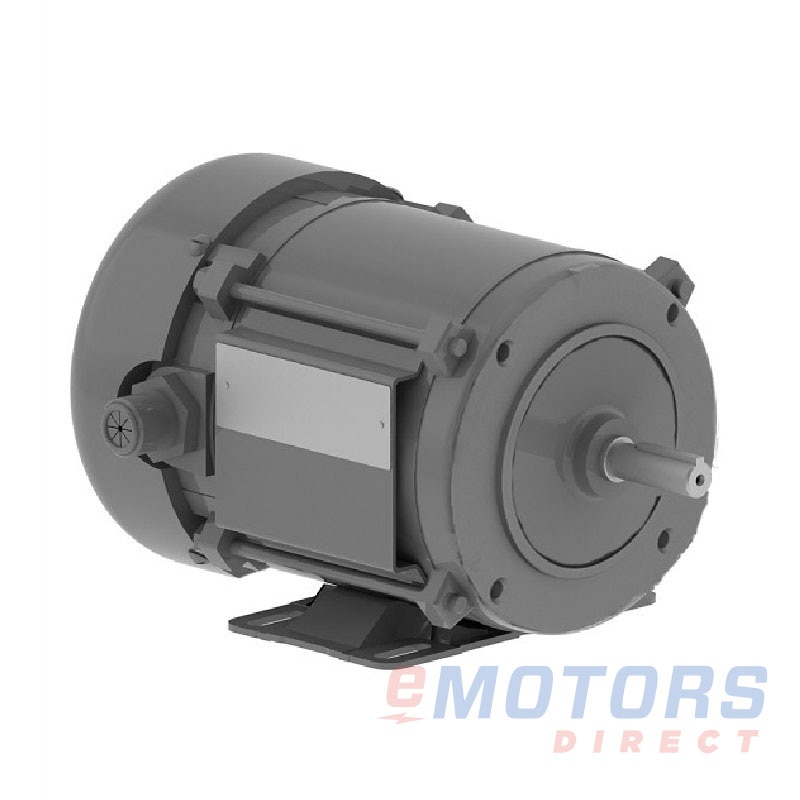

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

WEG XC.33404

WEG · NEMA Premium Explosion Proof 56 Frame
5.0
1/3 HP 1800 56C TEFC-XP 208-230V,460V Explosion Proof Motors
Catalog Number: XC.33404
HP
1/3
RPM
1800
Voltage
208-230V,460V
Frame
56C
Phase
3
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
C-Face / Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

WEG Explosion Proof NEMA 56 Motors are designed for operation in hazardous locations containing flammable liquids, explosive gases and dust.

Feature

  • Three-phase, 4 poles, 60HZ, Service Factor 1.15
  • Voltage: 208-230/460 or 575V
  • Totally Enclosed Fan Cooled (IP44)
  • Continuous Duty (S1)
  • Overload protection:Thermostats
  • 104°F (40°C) ambient temperature
  • Insulation class ‘B’ (Δt 80°C)
  • Terminal box included
Electrical Data
Rated Motor Output Power
1/3 HP
.25 kW
Rated Motor Speed
1750 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
1.3/0.65 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
1.44
Service Factor
1.15
KVA Code
-
Nominal Efficiency
74
Nominal Power Factor
65
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC-XP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
29.5lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
11.41"
NEMA Design
-
Degree of Protection (IP)
IP44
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
T3C
Mechanical Data
DE Bearing
6203-ZZ
NDE Bearing
6203-ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download

Downloads unlock once you're signed in.

Product Line Review

5.0

Average rating based on 1 reviews

Reviews for this product are combined with others in the same product line, as they share the same design but differ in specifications like HP or RPM.

5 stars
1
4 stars
0
3 stars
0
2 stars
0
1 star
0
Sign in to write a review

Technical Sales Specialist

Reviewed by –

Product Line: NEMA Premium Explosion Proof 56 Frame

Application: Painting equipment sourced from Sweden

This motors is for an specific motor for a classified area, is an explosion's proof motor with 56C Frame to adapt on a gearbox. Additional has two Thermostat wire to protect form high temperature.
