Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New Overstock

TECO-Westinghouse VCN04065 Overstock

TECO Westinghouse · Overstock Motors

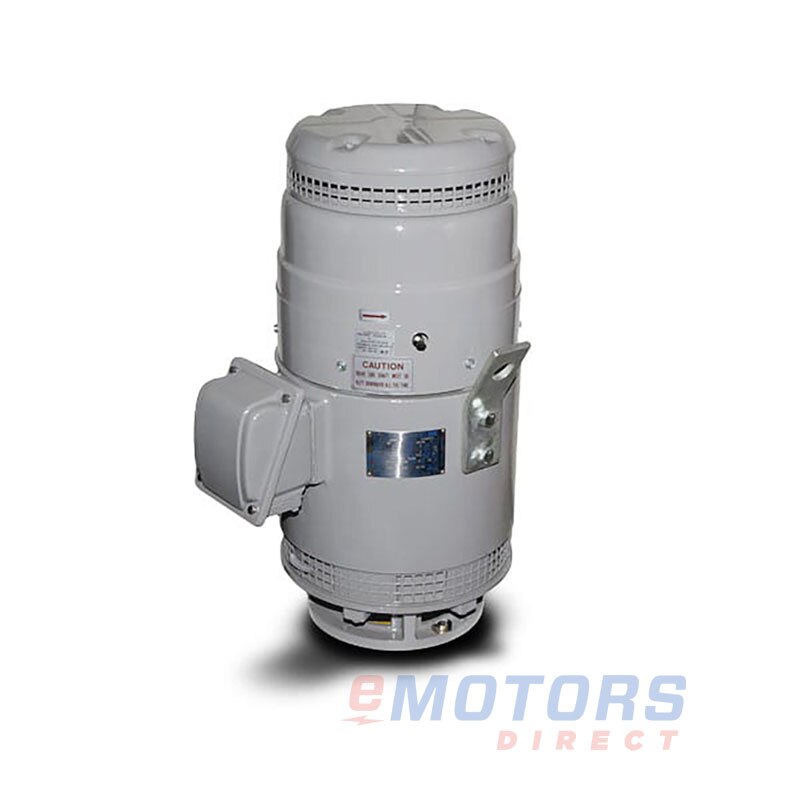

40HP 1200 364TP WPI 575V Vertical Shaft Motors
Catalog Number: VCN04065 Overstock
HP
40
RPM
1200
Voltage
575V
Frame
364TP
Phase
3
Enclosure
WPI
Material
Cast Iron
Mounting
P-Base

Product-line overview

Shop overstock electric motors. This diverse selection covers a wide variety of applications. All motors are new, unused, and supplied in original manufacturer packaging. Availability is limited to existing stock, and configurations vary by SKU.

Final Sale Product

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

TECO Westinghouse: Overstock Motors (59)

SDP00325 Overstock33600575V145T $195.64
SDP0052 Overstock53600230V, 460V182T $240.19
SDP7/52 Overstock7 1/23600230V, 460V184T $297.25
SDP0102 Overstock103600230V, 460V213T $369.43
SDP0056 Overstock51200230V, 460V215T $420.68
APH7/52 Overstock7 1/23600460V213T $430.05
APH1/585 Overstock1 1/2900575V184T $475.06
SDP00565 Overstock51200575V215T $529.43
SDP0106 Overstock101200230V, 460V256T $658.22
SDP01065 Overstock101200575V256T $889.28
APH7/585 Overstock7 1/2900575V256T $1,408.42
VCN7/545 Overstock81800575V213TP $1,602.52
VCN0102 Overstock103600230V, 460V213TP $1,627.48
PDH02065C Overstock201200575V286TC $1,670.60
VCN0104 Overstock101800230V, 460V215TP $1,698.33
SDP04065 Overstock401200575V364T $1,796.38
SDP06025 Overstock603600575V326TS $2,067.34
SDP0604 Overstock601800230V, 460V364T $2,075.57
PDX02585C Overstock25900575V326TC $2,179.19
VCN0252 Overstock253600230V, 460V256TP $2,193.44
VCN0204 Overstock201800230V, 460V256TP $2,204.59
VCN02025 Overstock203600575V254TP $2,309.35
VCN01565 Overstock151200575V284TP $2,677.86
VCN02065 Overstock201200575V286TP $2,757.18
VCN0304 Overstock301800230V, 460V286TP $2,800.41
SDP06065 Overstock601200575V404T $3,403.86
SDP1004 Overstock1001800230V, 460V404T $3,416.21
VCN04045 Overstock401800575V324TP $4,075.38
VCN0404 Overstock1800230V, 460V324TP $4,075.38
SDP12525 Overstock1253600575V404TS $4,181.45
PDH06085 Overstock60900575V405T $4,265.68
SDP1006 Overstock1001200230V, 460V444T $5,097.46
VCN04065 Overstock401200575V364TP $5,139.59
VCN05065 Overstock501200575V365TP $5,272.38
SDP1256 Overstock1251200230V, 460V445T $6,122.36
PDH12585 Overstock125900575V447T $8,809.01
SDP25065 Overstock2501200575V449T $10,305.50
PDH15085 Overstock150900575V449T $10,503.01
PDH25065 Overstock2501200575V449T $11,085.23
PDX3504 Overstock3501800460V449T $13,148.33
PDX35025 Overstock3503600575V449TS $13,352.27
PDX40025 Overstock4003600575V449TS $13,890.55
VCN10065 Overstock1001200575V444TP $14,799.32
VCN15065 Overstock1501200575V445TP $15,648.27
XHP3002 Overstock30036002300V, 4000V5009A $17,490.55
XHP2504 Overstock25018002300V, 4000V5009B $17,644.73
PF40045 Overstock4001800575V5009B $18,667.94
PF35065 Overstock3501200575V5009B $19,332.82
VCN25065 Overstock2501200575V447TP $20,510.22
PF5006 Overstock5001200460V5011B $24,520.54
Electrical Data
Rated Motor Output Power
40 HP
30 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
575V
Rated Motor Current
36.6 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
94.1
Nominal Power Factor
87
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
DELTA
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
364TP
Enclosure
WPI
Mounting
P-Base
Number of Speeds
-
Approximate Weight
775
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
35.89
NEMA Design
B
Degree of Protection (IP)
IP22
Insulation Class
F
Rotation
CCWLE
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6313C3
NDE Bearing
7220B
Shaft Diameter
1.653
Shaft Length
-
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
1-Year
