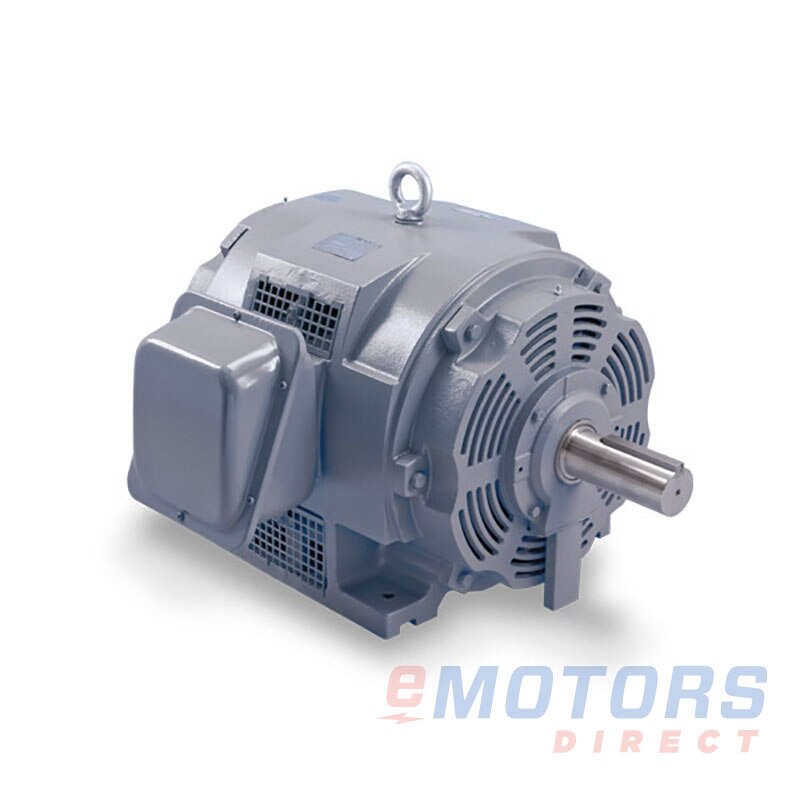

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New Overstock

TECO-Westinghouse SDP0052 Overstock

TECO Westinghouse · Overstock Motors
5HP 3600 182T ODP 230V/460V General Purpose
Catalog Number: SDP0052 Overstock
Alternative Number: DHP0052
HP
5
RPM
3600
Voltage
230V,460V
Frame
182T
Phase
3
Enclosure
ODP
Material
Cast Iron
Mounting
Rigid

Product-line overview

Shop overstock electric motors. This diverse selection covers a wide variety of applications. All motors are new, unused, and supplied in original manufacturer packaging. Availability is limited to existing stock, and configurations vary by SKU.

Final Sale Product

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

TECO Westinghouse: Overstock Motors (59)

SDP00325 Overstock33600575V145T $195.64
SDP0052 Overstock53600230V, 460V182T $240.19
SDP7/52 Overstock7 1/23600230V, 460V184T $297.25
APH7/52 Overstock7 1/23600460V213T $363.68
SDP0102 Overstock103600230V, 460V213T $369.43
APH1/585 Overstock1 1/2900575V184T $401.74
SDP0056 Overstock51200230V, 460V215T $420.68
SDP00565 Overstock51200575V215T $529.43
SDP0106 Overstock101200230V, 460V256T $658.22
SDP01065 Overstock101200575V256T $889.28
APH7/585 Overstock7 1/2900575V256T $1,191.07
VCN7/545 Overstock81800575V213TP $1,602.52
VCN0102 Overstock103600230V, 460V213TP $1,627.48
PDH02065C Overstock201200575V286TC $1,670.60
VCN0104 Overstock101800230V, 460V215TP $1,698.33
SDP04065 Overstock401200575V364T $1,796.38
SDP06025 Overstock603600575V326TS $2,067.34
SDP0604 Overstock601800230V, 460V364T $2,075.57
PDX02585C Overstock25900575V326TC $2,179.19
VCN0252 Overstock253600230V, 460V256TP $2,193.44
VCN0204 Overstock201800230V, 460V256TP $2,204.59
VCN02025 Overstock203600575V254TP $2,309.35
VCN01565 Overstock151200575V284TP $2,677.86
VCN02065 Overstock201200575V286TP $2,757.18
VCN0304 Overstock301800230V, 460V286TP $2,800.41
SDP06065 Overstock601200575V404T $3,403.86
SDP1004 Overstock1001800230V, 460V404T $3,416.21
VCN04045 Overstock401800575V324TP $4,075.38
VCN0404 Overstock1800230V, 460V324TP $4,075.38
SDP12525 Overstock1253600575V404TS $4,181.45
PDH06085 Overstock60900575V405T $4,265.68
SDP1006 Overstock1001200230V, 460V444T $5,097.46
VCN04065 Overstock401200575V364TP $5,139.59
VCN05065 Overstock501200575V365TP $5,272.38
SDP1256 Overstock1251200230V, 460V445T $6,122.36
PDH12585 Overstock125900575V447T $8,809.01
SDP25065 Overstock2501200575V449T $10,305.50
PDH15085 Overstock150900575V449T $10,503.01
PDH25065 Overstock2501200575V449T $11,085.23
PDX3504 Overstock3501800460V449T $13,148.33
PDX35025 Overstock3503600575V449TS $13,352.27
PDX40025 Overstock4003600575V449TS $13,890.55
VCN10065 Overstock1001200575V444TP $14,799.32
VCN15065 Overstock1501200575V445TP $15,648.27
XHP3002 Overstock30036002300V, 4000V5009A $17,490.55
XHP2504 Overstock25018002300V, 4000V5009B $17,644.73
PF40045 Overstock4001800575V5009B $18,667.94
PF35065 Overstock3501200575V5009B $19,332.82
VCN25065 Overstock2501200575V447TP $20,510.22
PF5006 Overstock5001200460V5011B $24,520.54

Description

The TECO-Westinghouse OPTIM ODP motors are engineered and designed for environments where dirt and moisture are minimal. This inverter duty motor offers premium efficiency ratings that deliver significant life-cycle savings.

Feature

  • Available from 1-500HP; 2, 4 & 6 Pole
  • NEMA Premium Efficiency
  • HPE™ High Pulse Endurance Spike Resistant Wire for Inverter Duty Applications
  • Inverter Speed Range 10:1 CT & 20:1 VT up to 300HP; 3:1 CT & 20:1 VT 301-500HP
  • UL Listed (UL 1004-5) for Fire Pump Applications (1-400HP)
Electrical Data
Rated Motor Output Power
5 HP
3.75 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
11.8/5.9 AMP
Phase
3
Poles
2
Locked Rotor Current
92.00/46.00 AMP
Fl Current @ 208V
13.1 AMP
Service Factor
1.15
KVA Code
J
Nominal Efficiency
87.5
Nominal Power Factor
91
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
Wye
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
182T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
95
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
C
Degree of Protection (IP)
IP22
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
-
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6306ZZ
NDE Bearing
6306ZZ
Shaft Diameter
-
Shaft Length
-
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
CHINA
Warranty
1-Year
