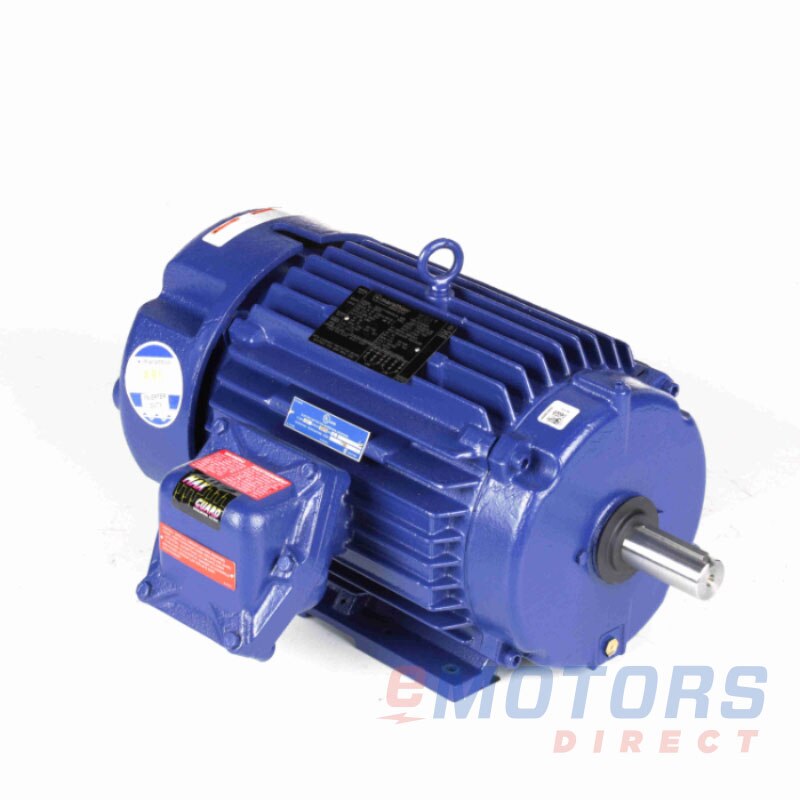

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Marathon U025B

Marathon · Explosion Proof NEMA Premium Efficiency Blue Chip Series Hazardous Duty
7 1/2 HP 1765 213T TEFC-XP 575V Explosion Proof
Catalog Number: U025B
Model Number: 213TTGND16537
HP
7 1/2
RPM
1800
Voltage
575V
Frame
213T
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
Rigid

Product-line overview

Marathon’s line of explosion proof motors is designed to protect against contamination that could lead to an explosion and to internally contain an explosion if it were to happen. They are the right choice for your severe duty applications in hazardous locations across various industries.

Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Marathon: Explosion Proof NEMA Premium Efficiency Blue Chip Series Hazardous Duty (99)

C303B33525230V, 460V182TC $1,008.94
C324B51755230V, 460V184TC $1,031.55
C304B53495230V, 460V184TC $1,059.96
U062B7 1/23525230V, 460V213T $1,334.23
C305B7 1/23525230V, 460V213TC $1,394.54
U063B103520230V, 460V215T $1,399.76
U991B7 1/21765230V, 460V213T $1,537.76
U025B7 1/21765575V213T $1,537.76
U006B7 1/21765230V, 460V213T $1,537.76
U043B51170230V, 460V215T $1,539.50
C306B103520230V, 460V215TC $1,575.45
C325C7 1/21765230V, 460V213TC $1,598.07
U992B101765230V, 460V215T $1,618.95
U026B101765575V215T $1,618.95
U007B101765230V, 460V215T $1,618.95
C370B7 1/21765575V213TC $1,618.95
C366B7 1/21765230V, 460V213TC $1,618.95
U991B-P7 1/21765208-230V, 460V213T $1,683.89
C367B101765230V, 460V215TC $1,700.13
C326B101765230V, 460V215TC $1,794.64
C307B153535230V, 460V254TC $2,161.69
C327B151775230V, 460V254TC $2,239.39
C328B201775230V, 460V256TC $2,526.99
C308B203537230V, 460V256TC $2,587.87
E547A251800230V, 460V284T $3,465.36
U032A501800575V326T $5,305.63
U080A601800230V, 460V364TS $8,479.74
U033A601800575V364T $8,479.74
E573A601800230V, 460V364T $8,479.74
U034A751800575V365T $9,019.00
E576A751800230V, 460V365T $9,019.00
E571501200230V, 460V365T $9,076.98
E575753600230V, 460V365TS $9,148.31
E5781003600230V, 460V405TS $10,538.21
E574601200230V, 460V404T $10,697.67
E577751200230V, 460V405T $11,216.63
U082A1001800230V, 460V405TS $11,516.42
U035A1001800575V405T $11,516.42
U073A1253600460V444TS $15,560.64
E582A1251800460V444T $15,623.90
E580A1001200230V, 460V444T $16,462.00
E5831251200460V445T $16,857.82
U084A1501800460V445TS $16,872.94
U090A1501200460V445T $21,772.24
U038A2001800575V445T $23,009.52
E5882001800460V445T $23,009.52
E595A2503575460V447TS, 449TS $24,361.58
E5912501800460V449T $26,458.80
E5963001785460V447T, 449T $33,317.59
H504A3501785460V447T, 449T $41,658.33

Feature

  • Meets NEMA Premium efficiencies
  • 10:1 variable torque, see Inverter Duty column for constant torque
  • MAX GUARD® Class F insulation
  • Blue Chip Series® motor quality, 100% cast iron construction for rigidity and reduced vibration
  • Internal and external surfaces treated with epoxy paint
  • 1.15 service factor on sinewave or 1.0 service factor on IBGT power
  • Precision balanced to .08”/sec.
  • Extended grease tubes
  • Normally closed thermostats (must be connected to control circuit)
  • Meets temperature code T3B
  • Shaft slinger
  • UL listed file no. E12044
  • CSA certified file no. LR47504
  • Three year warranty
Electrical Data
Rated Motor Output Power
7 1/2 HP
5.6 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
575V
Rated Motor Current
7.7 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
91.7
Nominal Power Factor
79.2
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
213T
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
234lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
19.63"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6208
NDE Bearing
6208
Shaft Diameter
1.375"
Shaft Length
3.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UL
Country of Origin
-
Warranty
3-Year
