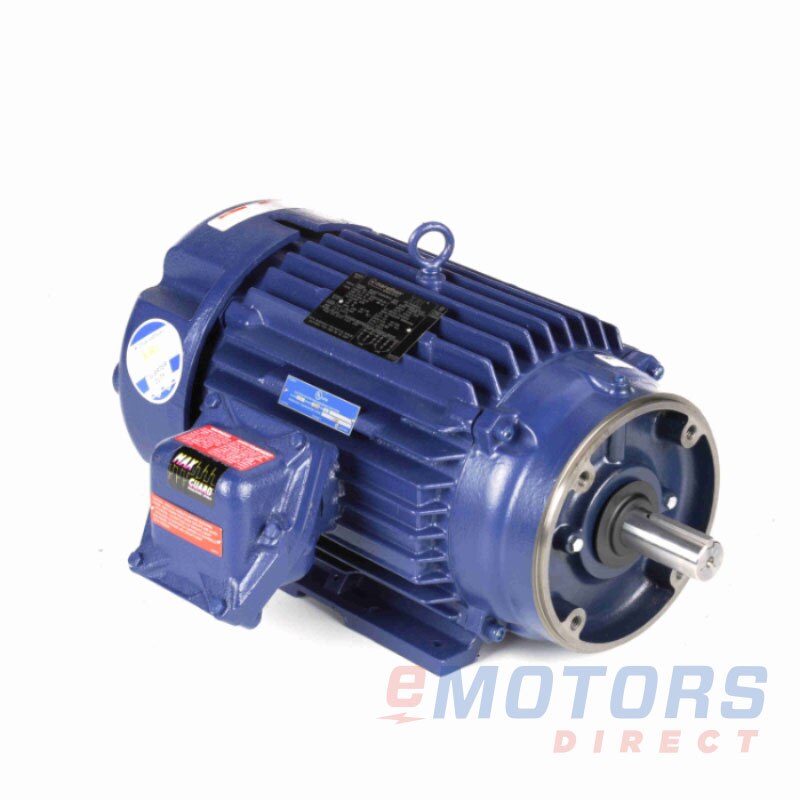

Marathon C367B

Marathon · Explosion Proof NEMA Premium Efficiency Blue Chip Series Hazardous Duty
10 HP 1765 215TC TEFC-XP 230V|460V Explosion Proof
Catalog Number: C367B
Model Number: 215TTGND6528
HP
10
RPM
1800
Voltage
230V,460V
Frame
215TC
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

Marathon’s line of explosion proof motors is designed to protect against contamination that could lead to an explosion and to internally contain an explosion if it were to happen. They are the right choice for your severe duty applications in hazardous locations across various industries.

Usually ships in 2 to 3 Weeks

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

Marathon: Explosion Proof NEMA Premium Efficiency Blue Chip Series Hazardous Duty (99)

C303B33525230V, 460V182TC $1,008.94
C324B51755230V, 460V184TC $1,031.55
C304B53495230V, 460V184TC $1,059.96
U062B7 1/23525230V, 460V213T $1,334.23
C305B7 1/23525230V, 460V213TC $1,394.54
U063B103520230V, 460V215T $1,399.76
U991B7 1/21765230V, 460V213T $1,537.76
U025B7 1/21765575V213T $1,537.76
U006B7 1/21765230V, 460V213T $1,537.76
U043B51170230V, 460V215T $1,539.50
C306B103520230V, 460V215TC $1,575.45
C325C7 1/21765230V, 460V213TC $1,598.07
U992B101765230V, 460V215T $1,618.95
U026B101765575V215T $1,618.95
U007B101765230V, 460V215T $1,618.95
C370B7 1/21765575V213TC $1,618.95
C366B7 1/21765230V, 460V213TC $1,618.95
U991B-P7 1/21765208-230V, 460V213T $1,683.89
C367B101765230V, 460V215TC $1,700.13
C326B101765230V, 460V215TC $1,794.64
C307B153535230V, 460V254TC $2,161.69
C327B151775230V, 460V254TC $2,239.39
C328B201775230V, 460V256TC $2,526.99
C308B203537230V, 460V256TC $2,587.87
E547A251800230V, 460V284T $3,465.36
U032A501800575V326T $5,305.63
U080A601800230V, 460V364TS $8,479.74
U033A601800575V364T $8,479.74
E573A601800230V, 460V364T $8,479.74
U034A751800575V365T $9,019.00
E576A751800230V, 460V365T $9,019.00
E571501200230V, 460V365T $9,076.98
E575753600230V, 460V365TS $9,148.31
E5781003600230V, 460V405TS $10,538.21
E574601200230V, 460V404T $10,697.67
E577751200230V, 460V405T $11,216.63
U082A1001800230V, 460V405TS $11,516.42
U035A1001800575V405T $11,516.42
U073A1253600460V444TS $15,560.64
E582A1251800460V444T $15,623.90
E580A1001200230V, 460V444T $16,462.00
E5831251200460V445T $16,857.82
U084A1501800460V445TS $16,872.94
U090A1501200460V445T $21,772.24
U038A2001800575V445T $23,009.52
E5882001800460V445T $23,009.52
E595A2503575460V447TS, 449TS $24,361.58
E5912501800460V449T $26,458.80
E5963001785460V447T, 449T $33,317.59
H504A3501785460V447T, 449T $41,658.33

Feature

  • 10:1 variable torque, constant torque, as noted
  • CR200 corona resistant, 200°C rated magnet wire
  • 1.15 service factor
  • Normally closed thermostats (must be connected to control circuit)
  • Meets temperature code T3B
  • External surface treated with epoxy paint
  • UL listed file no. E12044
  • CSA certified file no. LR47504
  • Three year warranty
Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
26.6/13.3 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
91.7
Nominal Power Factor
76.9
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
215TC
Enclosure
TEFC-XP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
268lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
23.45"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6208
NDE Bearing
6208
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UL
Country of Origin
USA
Warranty
3-Year
