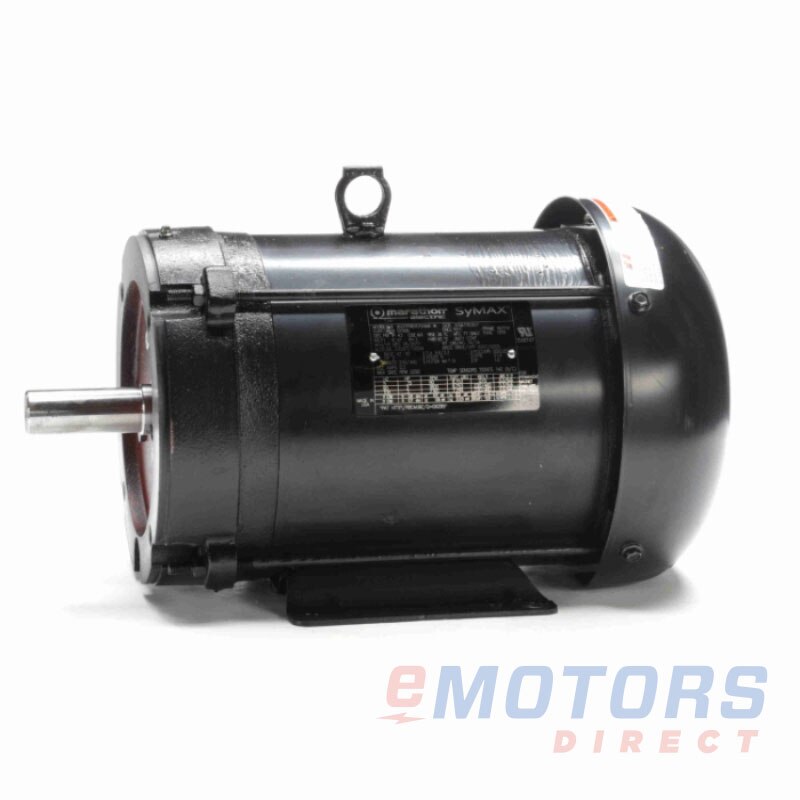

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Marathon SY066

Marathon · SYMAX PMAC Motors
3 HP 1800 RPM @ 90Hz 182TC TEFC 230V|460V
Catalog Number: SY066
Model Number: 182TPFRB10194
HP
3
RPM
1800 RPM @ 90Hz
Voltage
230V,460V
Frame
182TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Marathon’s permanent magnet AC motors are highly efficient due to the permanent magnet design. They are highly reliable and operate at a cooler temperature to allow for a long life span. These electric motors are variable speed and provide torque even in the lower speed range. TEFC or TENV enclosed.

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Feature

  • TENV - Operational to 20:1 constant torque open-loop (1000:1 closed-loop)
  • TEFC - Operational to 20:1 constant torque open-loop or closed-loop)
  • High power density, low weight design
  • Three year warranty
  • Ball bearing
  • Requires drive for operation
Electrical Data
Rated Motor Output Power
3 HP
2.25 kW
Rated Motor Speed
1800 RPM @ 90Hz RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
6.6/3.3 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
91.4
Nominal Power Factor
85
Leads (Qty, Size)
-
Frequency
90 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
110lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
16.42"
NEMA Design
-
Degree of Protection (IP)
IP43
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal / Shaft Down
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6205
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UL
Country of Origin
-
Warranty
3-Year
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download

Downloads unlock once you're signed in.
