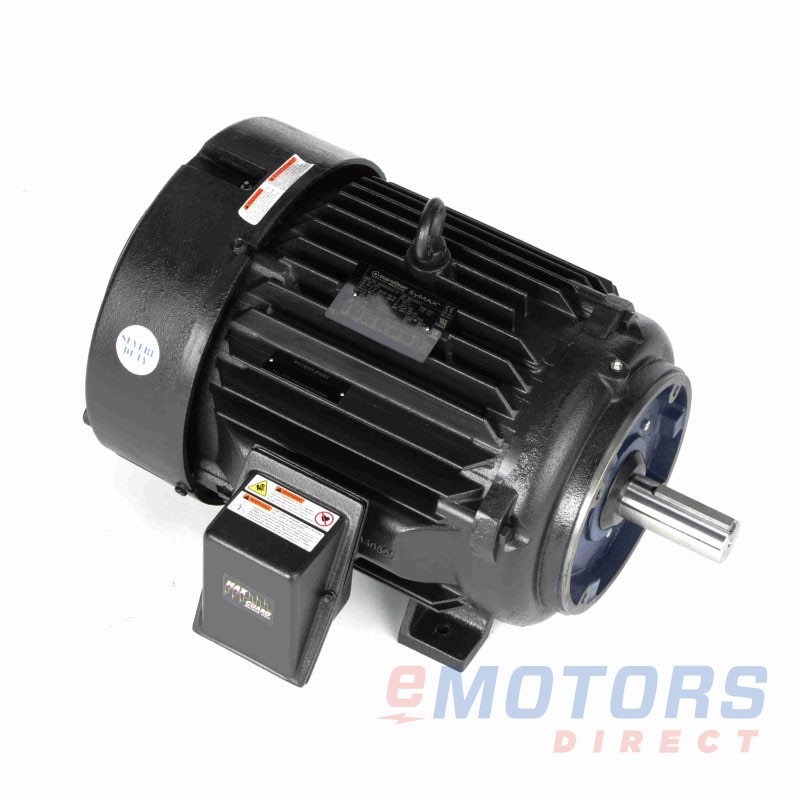

Marathon SY010

Marathon · SYMAX PMAC Motors
15 HP 1800 254TC TEFC 460V Permanent Magnet AC
Catalog Number: SY010
Model Number: 254TPFSA10088
HP
15
RPM
1800
Voltage
460V
Frame
254TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Product-line overview

Marathon’s permanent magnet AC motors are highly efficient due to the permanent magnet design. They are highly reliable and operate at a cooler temperature to allow for a long life span. These electric motors are variable speed and provide torque even in the lower speed range. TEFC or TENV enclosed.

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Feature

  • TENV - Operational to 20:1 constant torque open-loop (1000:1 closed-loop)
  • TEFC - Operational to 20:1 constant torque open-loop or closed-loop)
  • High power density, low weight design
  • Three year warranty
  • Ball bearing
  • Requires drive for operation
Electrical Data
Rated Motor Output Power
15 HP
11.25 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
460V
Rated Motor Current
18 AMP
Phase
3
Poles
8
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
94
Nominal Power Factor
80
Leads (Qty, Size)
-
Frequency
120 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
254TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
392lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
25.68"
NEMA Design
-
Degree of Protection (IP)
IP54
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6210
NDE Bearing
6210
Shaft Diameter
1.625"
Shaft Length
3.75"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
USA
Warranty
3-Year
