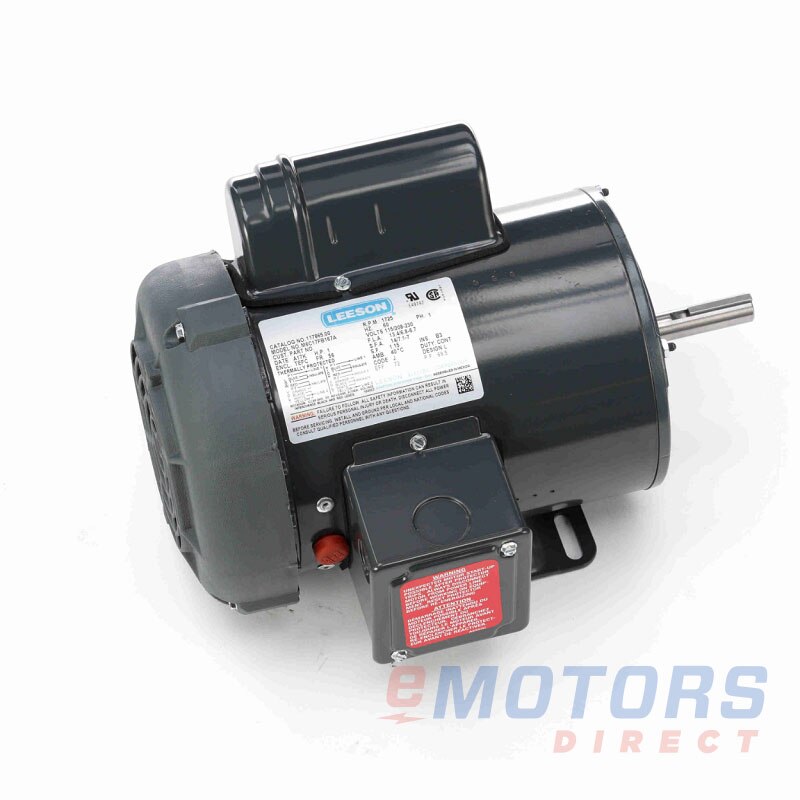

Leeson M009088.00

Leeson
1HP 1725 56 Fr 115V|208-230V TEFC Farm Duty
Catalog Number: M009088.00
HP
1
RPM
1800
Voltage
115V,208-230V
Frame
56
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

Our complete line of single-phase and three phase Farm Duty/Agricultural Duty series of motors are designed and built for the tough applications found in the agricultural industry.

Feature

  • 1/3 to 10 HP, TEFC, High Torque (HT): Feeders, conveyors, fans, compressors, spray washers, grinders, elevators, pumps and other demanding applications that require high starting torque.
  • 2 to 10 HP, TEFC, Extra High Torque (EHT): Silo unloaders, barn cleaners, bunk feeders, conveyors and other machinery requiring extra high starting torque. Motors have 300% and greater LRT.
  • Manual overload protector
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
13.6/6.6-6.8 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
6.6
Service Factor
1.15
KVA Code
J
Nominal Efficiency
76
Nominal Power Factor
64
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
34lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
N
Degree of Protection (IP)
IP43
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
1-Year
