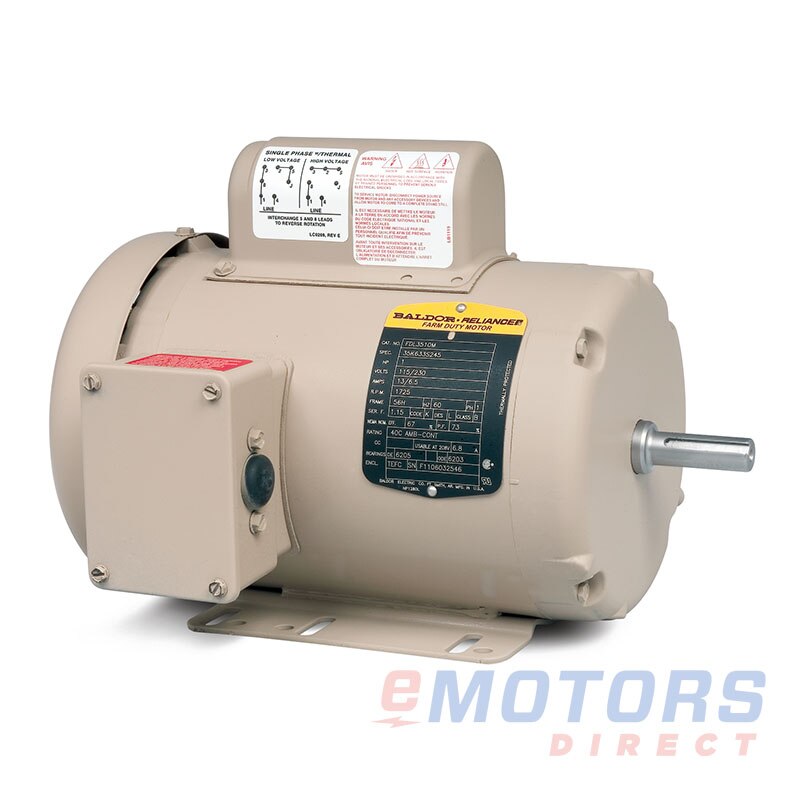

Baldor FDL3510M

Baldor · General Purpose, Farm Duty, single phase, TEFC, foot mounted
1 HP 1740 56H TEFC 115V|230V Farm Duty
Catalog Number: FDL3510M
HP
1
RPM
1800
Voltage
115V,208-230V
Frame
56H
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The General Purpose Farm Duty motor, single phase, TEFC, foot mounted from Baldor is designed for reliable performance in agricultural and industrial applications. It features lubed-for-life double-sealed ball bearings, ensuring long-lasting durability, and includes a lip seal and V-ring slinger on the drive end to enhance moisture resistance. Additionally, the motor is equipped with a gasketed manual reset thermal overload protection for added reliability. Ideal for general farm use, industrial fans, and pumps, this motor is well-suited for agri-duty and other general-purpose applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

General Purpose, Farm Duty, single phase, TEFC, foot mounted

Features

  • Lubed-for-life double-sealed ball bearings for enhanced durability
  • Lip seal and V-ring slinger on the drive end for improved moisture protection
  • Gasketed manual reset thermal overload protection for added reliability

Applications

  • Agricultural-duty equipment
  • General farm use
  • Industrial fans and pumps
  • General industrial applications
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
13/6.5 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
6.8
Service Factor
1.15
KVA Code
K
Nominal Efficiency
67
Nominal Power Factor
73
Leads (Qty, Size)
4
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56H
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
41lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
12.93"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
USA
Warranty
2-Year
