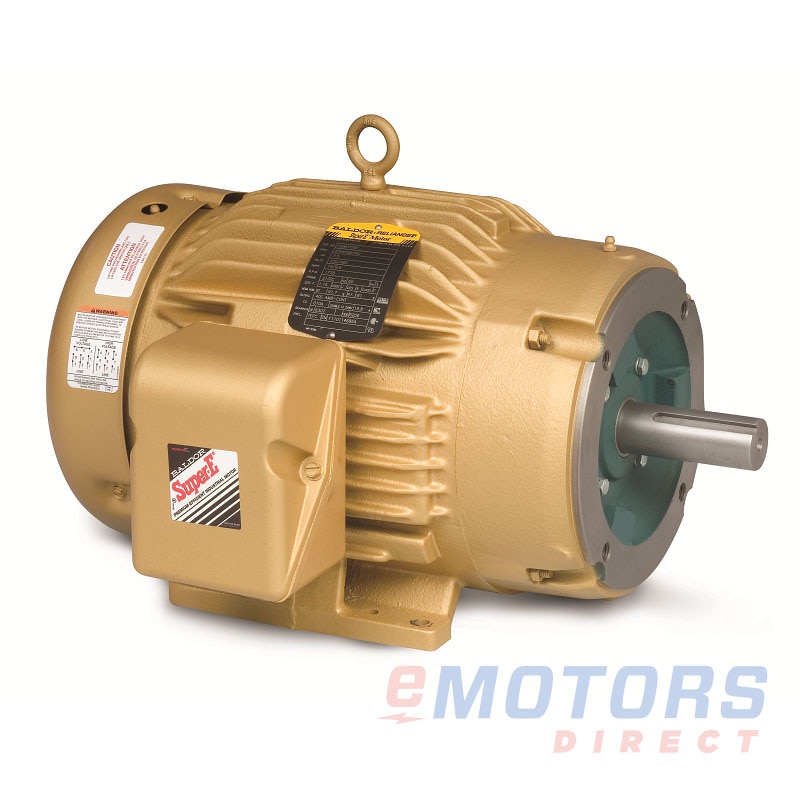

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor EM4117T-D

Baldor · General purpose, three phase, totally enclosed, foot mounted
30 HP 1180 326TD TEFC 230V|460V General Purpose
Catalog Number: EM4117T-D
HP
30
RPM
1200
Voltage
230V,460V
Frame
326TD
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
D-Flange / Rigid

Product-line overview

The Baldor General Purpose three-phase motor is designed for a wide range of applications, offering reliable performance and durability. It operates on a 60 Hz design with specifications available for 50 Hz, covering 2, 4, and 6-pole models with ratings ranging from 1 to 125 HP. The motor is suitable for use with inverters in accordance with NEMA MG1 Part 31.4.4.2, unless otherwise noted. Its simple F1 to F2 conversion is made possible on cast iron frames, ensuring flexibility in installation. Built for longevity, this motor is backed by a 3-year warranty on NEMA Premium® efficient models, making it a dependable choice for industrial and commercial applications.
Final Sale Product

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Baldor: General purpose, three phase, totally enclosed, foot mounted (427)

M3454-C1/41800230V, 460V48C $404.49
M3457-C1/33600230V, 460V48C $408.76
NM3454-C1/41800230V, 460V48C $413.36
M3460-C1/23600230V, 460V48C $446.85
M3458-C1/31800230V, 460V48C $463.20
M3463-C3/43600230V, 460V48C $480.39
M3452-C1/61200230V, 460V48C $509.99
M3461-C1/21800230V, 460V48C $520.24
M3464-C3/41800230V, 460V48C $546.89
M3455-C1/41200230V, 460V48C $560.80
NM3542-D3/41800230V, 460V56D $833.35
M3560-C1/2900230V, 460V56HC $961.05
EM3546-D11800230V, 460V56D $1,009.78
EM3546T-D11800230V, 460V143TD $1,024.60
EM3546T-5-D11800575V143TD $1,026.36
M3532-D1/4900230V, 460V56D $1,067.50
EM3550T-D1 1/23600230V, 460V143TD $1,085.64
EM3554T-5-D1 1/21800575V145TD $1,087.74
EM3554T-D1 1/21800230V, 460V145TD $1,087.74
EM3558-D21800230V, 460V56D $1,109.23
EM3546T-8-D11800200V143TD $1,111.33
M3536-D1/3900230V, 460V56D $1,122.98
EM3558T-D21800230V, 460V145TD $1,124.05
EM3558T-5-D21800575V145TD $1,125.98
EM3555T-D23600230V, 460V145TD $1,147.60
EM3554T-8-D1 1/21800200V145TD $1,169.20
EM3556-D11200230V, 460V56D $1,177.02
M3560-D1/2900230V, 460V56HD $1,188.69
EM3610T-533450575V182T $1,191.99
EM3611T-5-D31800575V182TD $1,197.81
EM3611T-D31800230V, 460V182TD $1,197.81
EM3558T-8-D21800200V145TD $1,208.25
EM3615T-5-D51800575V184TD $1,220.43
EM3615T-D51800230V, 460V184TD $1,220.43
EM3613T-D53600230V, 460V184TD $1,362.74
EM4103T-D251800230V, 460V284TD $3,884.44
EM4103T-8-D251800200V284TD $4,299.37
EM4104T-D301800230V, 460V286TD $4,408.00
EM4100T-D151200230V, 460V284TD $4,433.79
EM4104T-8-D301800200V286TD $4,897.40
EM4102T-D201200230V, 460V286TD $5,548.27
EM4110T-D401800230V, 460V324TD $6,167.23
EM4115T-D501800230V, 460V326TD $6,560.24
EM4110T-8-D401800200V324TD $6,802.55
EM4109T-5-D403600575V324TSD $6,897.79
EM4115T-8-D501800200V326TD $7,264.54
EM4114T-D503600230V, 460V326TSD $7,450.73
EM4114T-5-D503600575V326TSD $7,466.19
EM4117T-D301200230V, 460V326TD $7,645.25
EM44156T-4-D1501200460V447TD $22,830.60

General purpose, three phase, totally enclosed, foot mounted

Features

  • Designed for 60 Hz operation with 50 Hz specifications for 2, 4, and 6-pole models ranging from 1 to 125 HP
  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2, unless otherwise indicated
  • Easy F1 to F2 conversion on cast iron frames
  • Built for durability, with a 3-year warranty on NEMA Premium® efficient motors

Applications

  • General-purpose use
  • Fans and ventilation
  • Conveying systems
  • Blowers and air handling
  • Compressors and pressure systems
  • Pumps for fluid movement
  • Industrial machinery and equipment
Electrical Data
Rated Motor Output Power
30 HP
Rated Motor Speed
1200 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
78/39 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
93
Nominal Power Factor
78
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
326TD
Enclosure
TEFC
Mounting
D-Flange / Rigid
Number of Speeds
-
Approximate Weight
665lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
30.28"
NEMA Design
A
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6312
NDE Bearing
6311
Shaft Diameter
2.125"
Shaft Length
5.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
-
