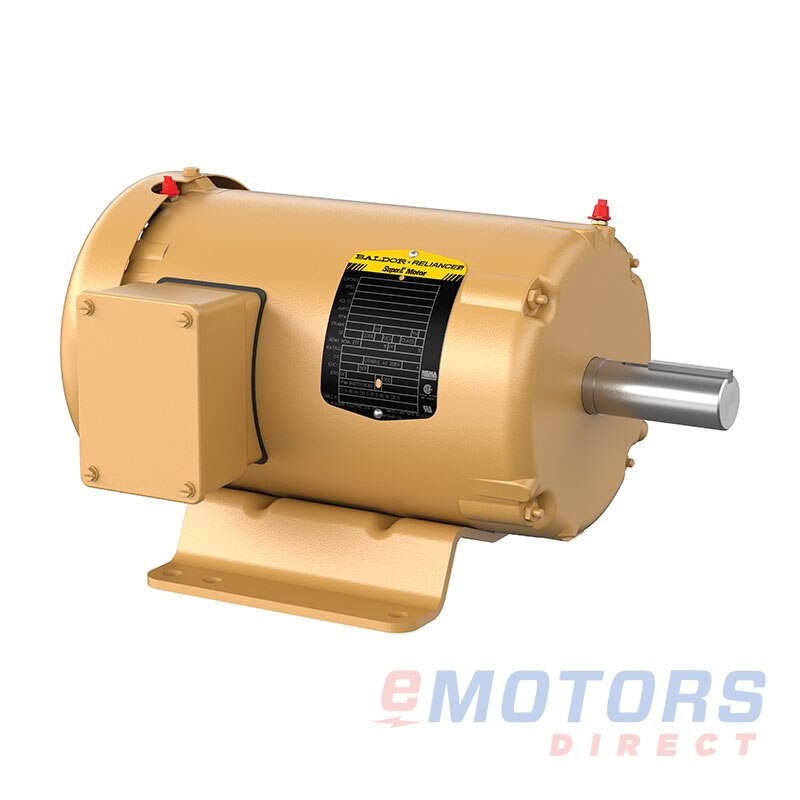

Baldor EM3610T-5

Baldor · General purpose, three phase, totally enclosed, foot mounted
3 HP 3450 182T TEFC 575V General Purpose AC Motors
Catalog Number: EM3610T-5
HP
3
RPM
3600
Voltage
575V
Frame
182T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor General Purpose three-phase motor is designed for a wide range of applications, offering reliable performance and durability. It operates on a 60 Hz design with specifications available for 50 Hz, covering 2, 4, and 6-pole models with ratings ranging from 1 to 125 HP. The motor is suitable for use with inverters in accordance with NEMA MG1 Part 31.4.4.2, unless otherwise noted. Its simple F1 to F2 conversion is made possible on cast iron frames, ensuring flexibility in installation. Built for longevity, this motor is backed by a 3-year warranty on NEMA Premium® efficient models, making it a dependable choice for industrial and commercial applications.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: General purpose, three phase, totally enclosed, foot mounted (427)

M3454-C1/41800230V, 460V48C $404.49
M3457-C1/33600230V, 460V48C $408.76
NM3454-C1/41800230V, 460V48C $413.36
M3460-C1/23600230V, 460V48C $448.19
M3458-C1/31800230V, 460V48C $463.20
M3463-C3/43600230V, 460V48C $480.39
M3452-C1/61200230V, 460V48C $515.98
M3461-C1/21800230V, 460V48C $520.24
M3464-C3/41800230V, 460V48C $546.89
M3455-C1/41200230V, 460V48C $560.80
NM3542-D3/41800230V, 460V56D $843.44
M3560-C1/2900230V, 460V56HC $963.93
EM3546-D11800230V, 460V56D $1,012.81
EM3546T-D11800230V, 460V143TD $1,027.67
EM3546T-5-D11800575V143TD $1,036.46
M3532-D1/4900230V, 460V56D $1,067.50
EM3550T-D1 1/23600230V, 460V143TD $1,088.90
EM3554T-5-D1 1/21800575V145TD $1,091.01
EM3554T-D1 1/21800230V, 460V145TD $1,091.01
EM3546T-8-D11800200V143TD $1,111.33
EM3558-D21800230V, 460V56D $1,112.56
M3536-D1/3900230V, 460V56D $1,122.98
EM3558T-D21800230V, 460V145TD $1,127.43
EM3558T-5-D21800575V145TD $1,137.25
EM3555T-D23600230V, 460V145TD $1,149.07
EM3554T-8-D1 1/21800200V145TD $1,183.35
EM3556-D11200230V, 460V56D $1,188.80
EM3610T-533450575V182T $1,191.99
M3560-D1/2900230V, 460V56HD $1,192.25
EM3611T-5-D31800575V182TD $1,201.41
EM3611T-D31800230V, 460V182TD $1,201.41
EM3558T-8-D21800200V145TD $1,211.87
EM3615T-5-D51800575V184TD $1,224.10
EM3615T-D51800230V, 460V184TD $1,224.10
EM3613T-D53600230V, 460V184TD $1,364.48
EM4103T-D251800230V, 460V284TD $3,896.10
EM4103T-8-D251800200V284TD $4,299.37
EM4104T-D301800230V, 460V286TD $4,421.24
EM4100T-D151200230V, 460V284TD $4,447.10
EM4104T-8-D301800200V286TD $4,897.40
EM4102T-D201200230V, 460V286TD $5,564.92
EM4110T-D401800230V, 460V324TD $6,175.13
EM4115T-D501800230V, 460V326TD $6,637.27
EM4110T-8-D401800200V324TD $6,802.55
EM4109T-5-D403600575V324TSD $6,981.27
EM4115T-8-D501800200V326TD $7,264.54
EM4114T-D503600230V, 460V326TSD $7,450.73
EM4114T-5-D503600575V326TSD $7,466.19
EM4117T-D301200230V, 460V326TD $7,668.20
EM44156T-4-D1501200460V447TD $23,106.90

General purpose, three phase, totally enclosed, foot mounted

Features

  • Designed for 60 Hz operation with 50 Hz specifications for 2, 4, and 6-pole models ranging from 1 to 125 HP
  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2, unless otherwise indicated
  • Easy F1 to F2 conversion on cast iron frames
  • Built for durability, with a 3-year warranty on NEMA Premium® efficient motors

Applications

  • General-purpose use
  • Fans and ventilation
  • Conveying systems
  • Blowers and air handling
  • Compressors and pressure systems
  • Pumps for fluid movement
  • Industrial machinery and equipment
Electrical Data
Rated Motor Output Power
3 HP
2.25 kW
Rated Motor Speed
3450 RPM
Rated Motor Voltage
575V
Rated Motor Current
2.9 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
86.5
Nominal Power Factor
92
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
182T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
56lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
15.16"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
61 °C
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6203
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus EEV
Country of Origin
USA
Warranty
-
