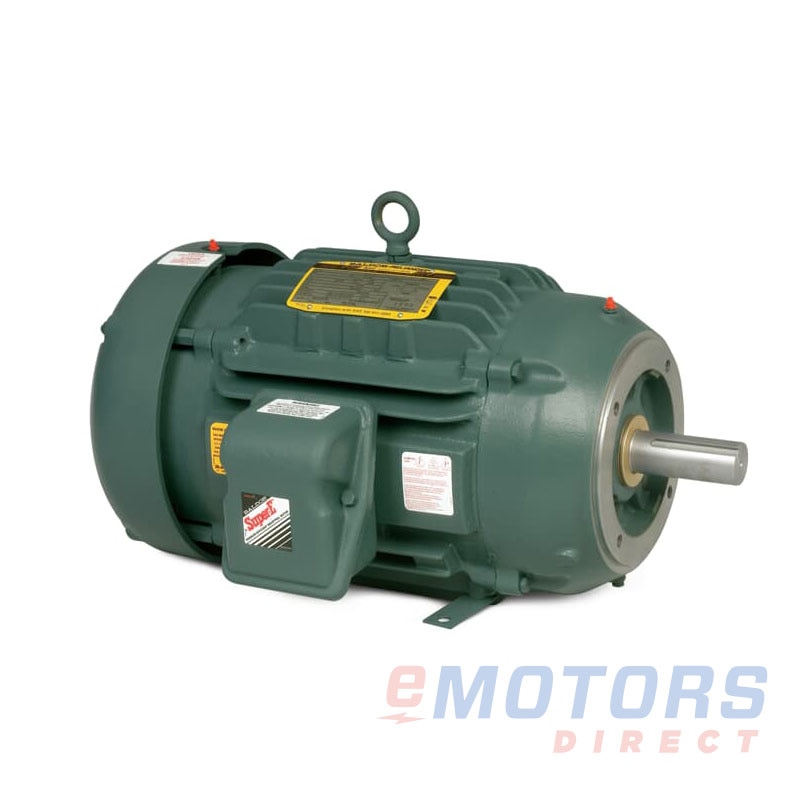

Baldor VECP82394T-4

Baldor · IEEE 841XL, three phase, totally enclosed, C-face, footless
15 HP 3520 254TC TEFC 460V Severe Duty IEEE 841 Motors
Catalog Number: VECP82394T-4
HP
15
RPM
3600
Voltage
460V
Frame
254TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Round Body

Product-line overview

The Baldor IEEE 841XL three-phase motor is designed to provide exceptional reliability and performance in challenging industrial environments. Its totally enclosed construction ensures superior protection against dust, dirt, and moisture, making it ideal for harsh operating conditions. The C-face design allows for easy mounting and alignment with a variety of equipment, while the footless configuration offers flexibility in installation, especially in space-constrained areas. Built to meet and exceed IEEE 841 standards, this motor incorporates advanced features such as a patented lubrication system for longer bearing life and a 5-year warranty for added confidence. With its robust design, the IEEE 841XL motor is an ideal choice for a wide range of demanding industrial applications.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

IEEE 841XL, three phase, totally enclosed, C-face, footless

Features

  • Complies with and exceeds the standards of IEEE Std. 841-2021
  • Patented PLS lubrication system designed for extended bearing life
  • Inverter Duty rated for compatibility with variable frequency drives
  • Meets IEEE 45 standards, as indicated on the nameplate
  • Division 2, Class I, Groups A, B, C, D ratings on nameplate for hazardous environments
  • Includes IEEE 841 test report with each motor shipment
  • Backed by a 5-year warranty for added peace of mind
  • Class F insulation with a 1.15 service factor, operating within Class "B" temperature limits at rated horsepower
  • "TR" catalog numbers feature standard roller bearings for enhanced reliability

Applications

  • Cement, aggregate, and above-ground mining operations
  • Chemical, oil, and gas industries
  • Coastal marine environments
  • Food processing and packaging
  • Metals manufacturing and foundries
  • Power generation systems
  • Pulp and paper, as well as forest product industries
Electrical Data
Rated Motor Output Power
15 HP
11.25 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
460V
Rated Motor Current
16.8 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
92.6
Nominal Power Factor
-
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
254TC
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
304lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
25.06"
NEMA Design
B
Degree of Protection (IP)
IP56
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3C
Mechanical Data
DE Bearing
6309
NDE Bearing
6309
Shaft Diameter
1.625"
Shaft Length
4.0"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA EEV, UR, CSA, CCSA US
Country of Origin
USA
Warranty
5-Year
