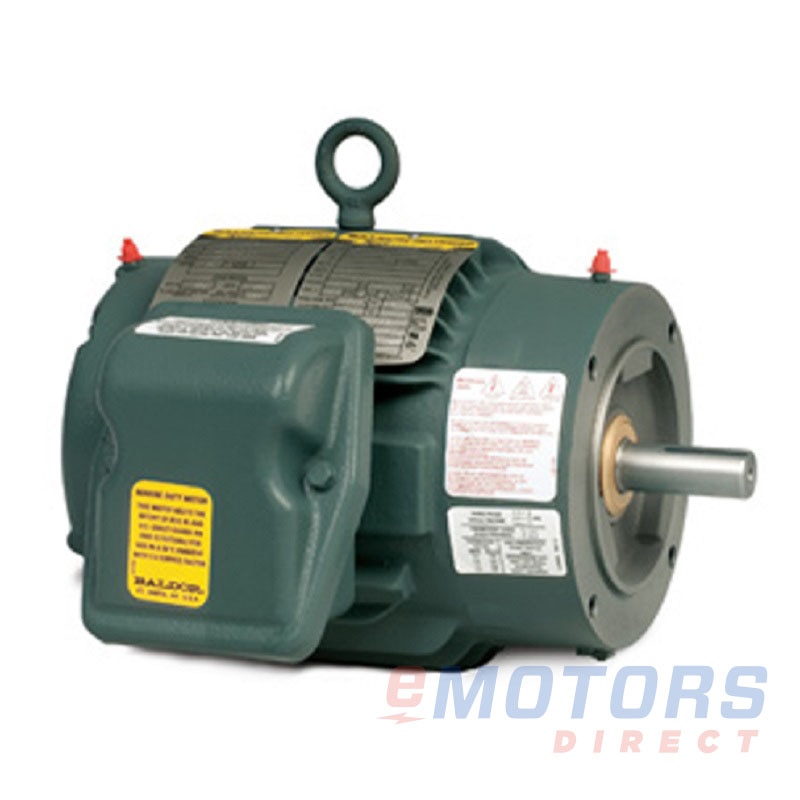

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor VENCP83581T-4

Baldor · IEEE 841XL, three phase, totally enclosed, C-face, footless
1 HP 1775 143TC TENV 460V Severe Duty IEEE 841 Motors
Catalog Number: VENCP83581T-4
HP
1
RPM
1800
Voltage
460V
Frame
143TC
Phase
3
Enclosure
TENV
Material
Cast Iron
Mounting
C-Face / Round Body

Product-line overview

The Baldor IEEE 841XL three-phase motor is designed to provide exceptional reliability and performance in challenging industrial environments. Its totally enclosed construction ensures superior protection against dust, dirt, and moisture, making it ideal for harsh operating conditions. The C-face design allows for easy mounting and alignment with a variety of equipment, while the footless configuration offers flexibility in installation, especially in space-constrained areas. Built to meet and exceed IEEE 841 standards, this motor incorporates advanced features such as a patented lubrication system for longer bearing life and a 5-year warranty for added confidence. With its robust design, the IEEE 841XL motor is an ideal choice for a wide range of demanding industrial applications.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

IEEE 841XL, three phase, totally enclosed, C-face, footless

Features

  • Complies with and exceeds the standards of IEEE Std. 841-2021
  • Patented PLS lubrication system designed for extended bearing life
  • Inverter Duty rated for compatibility with variable frequency drives
  • Meets IEEE 45 standards, as indicated on the nameplate
  • Division 2, Class I, Groups A, B, C, D ratings on nameplate for hazardous environments
  • Includes IEEE 841 test report with each motor shipment
  • Backed by a 5-year warranty for added peace of mind
  • Class F insulation with a 1.15 service factor, operating within Class "B" temperature limits at rated horsepower
  • "TR" catalog numbers feature standard roller bearings for enhanced reliability

Applications

  • Cement, aggregate, and above-ground mining operations
  • Chemical, oil, and gas industries
  • Coastal marine environments
  • Food processing and packaging
  • Metals manufacturing and foundries
  • Power generation systems
  • Pulp and paper, as well as forest product industries
Electrical Data
Rated Motor Output Power
1 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
460V
Rated Motor Current
1.5 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
87.5
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
143TC
Enclosure
TENV
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
63lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
12.00"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
-
