Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New

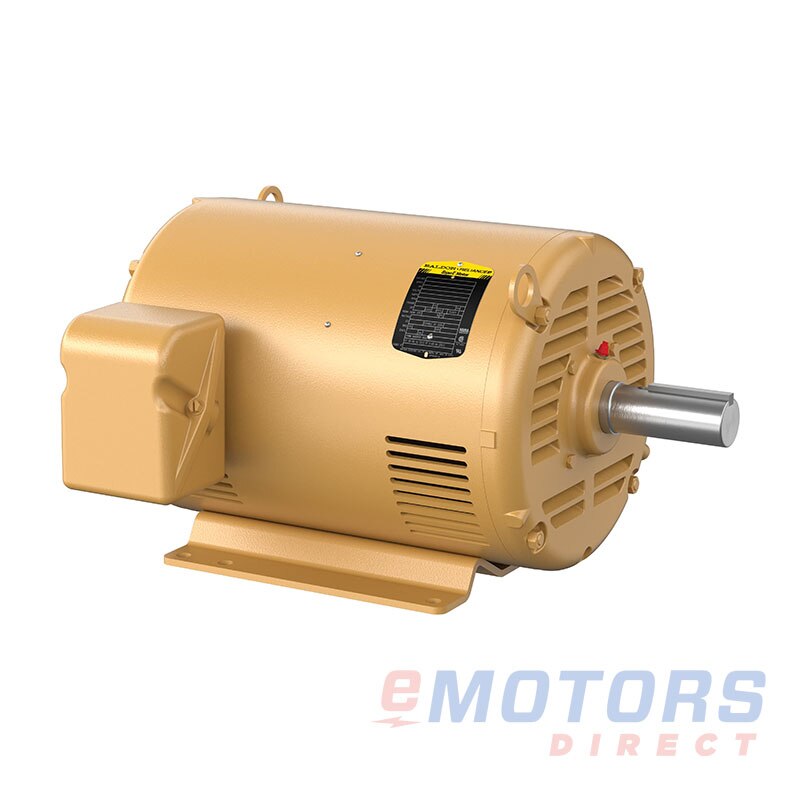

Baldor EM2515T-5BG

Baldor · HVAC, NEMA Premium, three phase, ODP, foot mounted, Shaft Grounding
20 HP 1765 256T ODP 575V General Purpose AC Motors
Catalog Number: EM2515T-5BG
HP
20
RPM
1800
Voltage
575V
Frame
256T
Phase
3
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The HVAC, NEMA Premium, three-phase, ODP, foot-mounted motor from Baldor is designed for high-efficiency performance in demanding HVAC applications. Equipped with Class H insulation, it provides added protection for inverter use and features an internal grounding brush to mitigate bearing currents on the DE retainer ring. Built for durability and long-term reliability, the motor includes a 3-year warranty. Suitable for variable speed operations, it meets NEMA MG1 Part 31.4.4.2 standards, making it an ideal choice for fans, pumps, blowers, and other general HVAC equipment. This motor ensures smooth and efficient operation in both fixed and variable speed environments.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: HVAC, NEMA Premium, three phase, ODP, foot mounted, Shaft Grounding (35)

EM3116T-BG11760230V, 460V143T $1,185.41
EM3155T-BG23450230V, 460V143T $1,195.28
EM3158T-BG33450230V, 460V145T $1,206.77
EM3154T-BG1 1/21755230V, 460V145T $1,228.93
EM3157T-BG21750230V, 460V145T $1,300.35
EM3212T-BG53450230V, 460V182T $1,339.76
EM3211T-5BG31760575V182T $1,425.96
EM3211T-BG31765230V, 460V182T $1,425.96
EM3218T-5BG51750575V184T $1,536.78
EM3218T-BG51750230V, 460V184T $1,536.78
EM3305T-BG31165230V, 460V213T $1,795.38
EM3219T-BG7 1/23450230V, 460V184T $1,968.59
EM3311T-5BG7 1/21770575V213T $2,165.61
EM3311T-BG7 1/21770230V, 460V213T $2,165.61
EM3312T-BG103475230V, 460V213T $2,245.24
EM3309T-BG51160230V, 460V215T $2,260.02
EM3313T-5BG101770575V215T $2,558.83
EM3313T-BG101770230V, 460V215T $2,558.83
EM2506T-BG7 1/21180230V, 460V254T $2,706.60
EM3314T-BG153500230V, 460V215T $3,062.89
EM2511T-BG101180230V, 460V256T $3,414.24
EM2513T-5BG151765575V284T $3,555.44
EM2513T-BG151765230V, 460V254T $3,555.44
EM2515T-5BG201765575V256T $3,865.76
EM2515T-BG201765230V, 460V256T $3,865.76
EM2524T-BG151180230V, 460V284T $4,528.25
EM2531T-5BG251770575V284T $4,684.23
EM2531T-BG251770230V, 460V284T $4,684.23
EM2535T-5BG301775575V286T $5,084.02
EM2535T-BG301775230V, 460V286T $5,084.02
EM2528T-BG201180230V, 460V286T $5,423.07
EM2539T-5BG401770575V324T $6,599.46
EM2539T-BG401770230V, 460V324T $6,599.46
EM2543T-5BG501775575V326T $7,230.75
EM2543T-BG501775230V, 460V326T $7,230.75

HVAC, NEMA Premium, three phase, ODP, foot mounted, Shaft Grounding

Features

  • Class H insulation for enhanced protection in inverter-driven applications
  • Internal grounding brush on DE retainer ring to mitigate bearing currents
  • Built for long-lasting performance with a 3-year warranty
  • Compatible with inverter use, adhering to NEMA MG1 Part 31.4.4.2 standards

Applications

  • Fans
  • Pumps
  • Blowers
  • Unit handling
  • HVAC systems
  • Variable speed operations
  • General purpose uses
Electrical Data
Rated Motor Output Power
20 HP
15 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
575V
Rated Motor Current
19.1 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
93
Nominal Power Factor
85
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
2:1
30
General Data
Frame
256T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
250lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
23.19"
NEMA Design
A
Degree of Protection (IP)
IP22
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
37 °C
Temp Code
-
Mechanical Data
DE Bearing
6309
NDE Bearing
6208
Shaft Diameter
1.625"
Shaft Length
4"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus EEV
Country of Origin
USA
Warranty
3-Year
