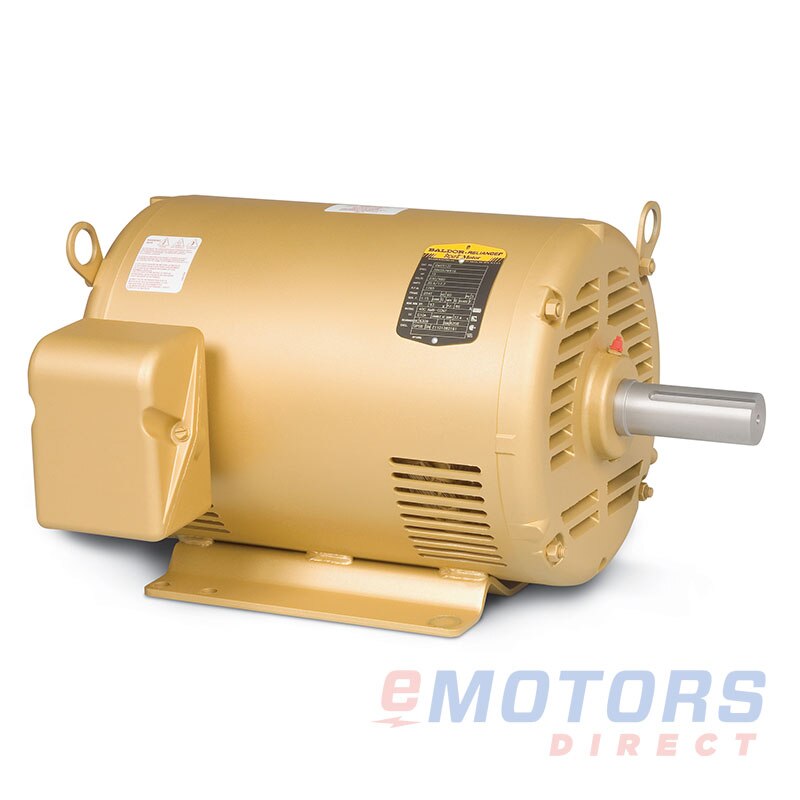

Baldor EM2515T-5G

Baldor · HVAC, NEMA Premium, three phase, ODP, foot mounted, Aegis
20 HP 1765 256T ODP 575V General Purpose AC Motors
Catalog Number: EM2515T-5G
HP
20
RPM
1800
Voltage
575V
Frame
256T
Phase
3
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor HVAC, NEMA Premium, three-phase, ODP, foot-mounted motor is engineered for reliable performance in demanding HVAC applications. It features Class H insulation, providing enhanced protection for inverter use, and includes an internal grounding ring to mitigate bearing currents. Designed for longevity, this motor comes with a 3-year warranty, ensuring consistent and dependable operation. It is suitable for inverter use, meeting NEMA MG1 Part 31.4.4.2 standards. This motor is ideal for various applications, including fans, pumps, blowers, unit handling, HVAC systems, variable speed operations, and general-purpose uses, delivering consistent and efficient performance across a range of industries.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: HVAC, NEMA Premium, three phase, ODP, foot mounted, Aegis (65)

EM31115-G13600208-230V, 460V56 $950.63
EM3120T-G1 1/23600208-230V, 460V143T $1,051.61
EM3116T-G11800208-230V, 460V143T $1,185.41
EM3116T-8G11760200V143T $1,185.41
EM3116T-5G11760575V143T $1,185.41
EM3155T-G23600208-230V, 460V143T $1,195.28
EM3158T-G33600208-230V, 460V145T $1,206.77
EM3156T-G11200208-230V, 460V145T $1,206.77
EM3154T-G1 1/21800208-230V, 460V145T $1,228.93
EM3154T-8G1 1/21755200V145T $1,228.93
EM3154T-5G1 1/21755575V145T $1,228.93
EM3157T-G21800208-230V, 460V145T $1,300.35
EM3157T-8G21750200V145T $1,300.35
EM3157T-5G21750575V145T $1,300.35
EM3212T-G53600208-230V, 460V182T $1,339.76
EM3207T-G1 1/21200208-230V, 460V182T $1,416.93
EM3211T-G31800208-230V, 460V182T $1,425.96
EM3211T-8G31765200V182T $1,425.96
EM3211T-5G31765575V182T $1,425.96
EM3215T-G21200208-230V, 460V184T $1,442.38
EM3218T-G51800208-230V, 460V184T $1,536.78
EM3218T-8G51750200V184T $1,536.78
EM3218T-5G51750575V184T $1,536.78
EM3305T-G31200208-230V, 460V213T $1,795.38
EM3219T-G7 1/23600208-230V, 460V184T $1,968.59
EM3311T-G7 1/21800208-230V, 460V213T $2,165.61
EM3311T-8G7 1/21770200V213T $2,165.61
EM3311T-5G7 1/21770575V213T $2,165.61
EM3312T-G103600208-230V, 460V213T $2,245.24
EM3309T-G51200230V, 460V215T $2,260.02
EM3313T-G101800208-230V, 460V215T $2,558.83
EM3313T-8G101770200V215T $2,558.83
EM3313T-5G101770575V215T $2,558.83
EM2506T-G7 1/21200208-230V, 460V254T $2,746.84
EM3314T-G153600230V, 460V215T $3,062.89
EM2511T-G101200208-230V, 460V256T $3,455.29
EM2513T-G151800208-230V, 460V254T $3,595.67
EM2514T-G203600208-230V, 460V254T $3,643.28
EM2515T-G201800208-230V, 460V256T $3,906.79
EM2516T-G253600208-230V, 460V256T $4,294.28
EM2524T-G151200208-230V, 460V284T $4,634.16
EM2531T-G251800208-230V, 460V284T $4,789.30
EM2534T-G303600208-230V, 460V284TS $5,111.12
EM2535T-G301800208-230V, 460V286T $5,189.91
EM2528T-G201200208-230V, 460V286T $5,528.96
EM2538T-G403600208-230V, 460V286TS $6,436.91
EM2532T-G251200208-230V, 460V324T $6,679.09
EM2539T-G401800208-230V, 460V324T $6,720.95
EM2536T-G301200208-230V, 460V326T $6,940.14
EM2540T-G401200208-230V, 460V364T $9,692.72

HVAC, NEMA Premium, three phase, ODP, foot mounted, Aegis

Features

  • Enhanced inverter protection with Class H insulation
  • Grounding ring minimizes bearing current issues
  • Built for long-term use and backed by a 3-year warranty
  • Meets NEMA MG1 Part 31.4.4.2 standards for inverter duty

Applications

  • Fans and blowers
  • Pumping systems
  • HVAC and unit handling equipment
  • Suitable for variable speed and general-purpose uses
Electrical Data
Rated Motor Output Power
20 HP
Rated Motor Speed
1765 RPM
Rated Motor Voltage
575V
Rated Motor Current
19.1 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
93
Nominal Power Factor
85
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
256T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
250lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
23.19"
NEMA Design
A
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6309
NDE Bearing
6208
Shaft Diameter
1.625"
Shaft Length
4.0"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UR, CSA EEV, CSA
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
  • CAD 3DRegister or log in to download
