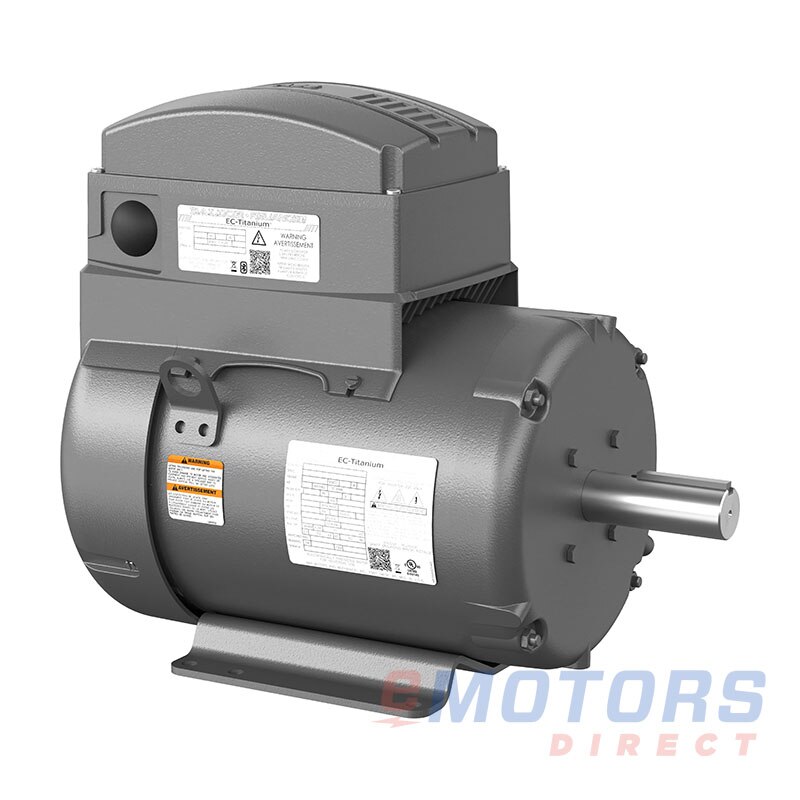

Baldor ECS101T4H10FF4

Baldor · EC Titanium Integrated motor-drive, TEFC, foot mounted, Top Mount Drive, Plenum Use
10 HP 1800 215T TEFC 460V Integrated Drive Motors
Catalog Number: ECS101T4H10FF4
HP
10
RPM
1800
Voltage
460V
Frame
215T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor EC Titanium™ Integrated Motor-Drive, TEFC, Foot Mounted with Top Mount Drive and designed for plenum use, offers superior efficiency and reliable performance in a compact, all-in-one solution. Equipped with a permanent magnet motor and PWM AC drive control, it delivers IE5+ efficiency for optimal energy savings and precise speed regulation. The motor is housed in a rugged IP54-rated enclosure with a gasketed aluminum cover, ensuring reliable protection in challenging environments, including plenum spaces. Integrated ABB Ability™ and Bluetooth® connectivity provide easy monitoring and setup, while the Serial Modbus RJ45 interface allows for smooth communication. This motor features flexible control options with two digital inputs, two configurable analog/digital inputs, and one relay output. Designed for inverter use and compliant with NEMA MG1 Part 31.4.4.2, it includes Class F insulation, Class B temperature rise, and an internal grounding brush to mitigate bearing currents. Ideal for a wide range of applications such as HVAC systems, blowers, fans, pumps, and variable-speed operations, this motor ensures energy-efficient and long-lasting performance.
