Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New

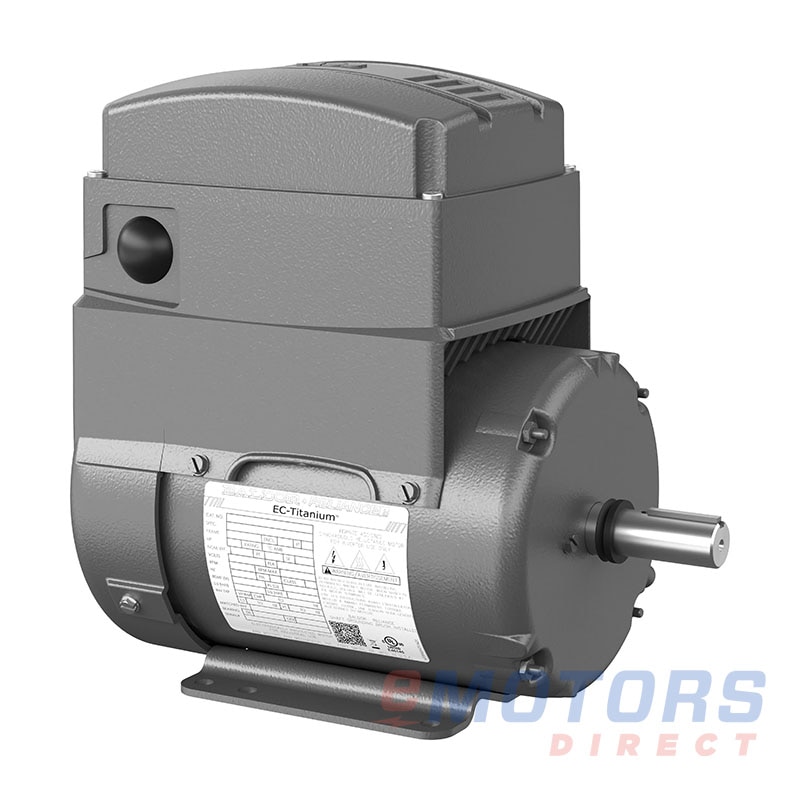

Baldor ECS101T2H2DF4

Baldor · EC Titanium Integrated motor-drive, TEFC, foot mounted, Top Mount Drive, Plenum Use
2 HP 1800 145T TEFC 230V Integrated Drive Motors
Catalog Number: ECS101T2H2DF4
HP
2
RPM
1800
Voltage
230V
Frame
145T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor EC Titanium™ Integrated Motor-Drive, TEFC, Foot Mounted with Top Mount Drive and designed for plenum use, offers superior efficiency and reliable performance in a compact, all-in-one solution. Equipped with a permanent magnet motor and PWM AC drive control, it delivers IE5+ efficiency for optimal energy savings and precise speed regulation. The motor is housed in a rugged IP54-rated enclosure with a gasketed aluminum cover, ensuring reliable protection in challenging environments, including plenum spaces. Integrated ABB Ability™ and Bluetooth® connectivity provide easy monitoring and setup, while the Serial Modbus RJ45 interface allows for smooth communication. This motor features flexible control options with two digital inputs, two configurable analog/digital inputs, and one relay output. Designed for inverter use and compliant with NEMA MG1 Part 31.4.4.2, it includes Class F insulation, Class B temperature rise, and an internal grounding brush to mitigate bearing currents. Ideal for a wide range of applications such as HVAC systems, blowers, fans, pumps, and variable-speed operations, this motor ensures energy-efficient and long-lasting performance.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

EC Titanium Integrated motor-drive, TEFC, foot mounted, Top Mount Drive, Plenum Use

Features

  • IP54-rated gasket aluminum cover enclosure and fan cover for durable protection
  • Non-Bluetooth drive for streamlined functionality
  • Serial Modbus RJ45 interface for easy communication
  • Two digital inputs and two configurable inputs (analog or digital) for versatile control
  • One relay output for external control integration
  • High-efficiency IE5+ motor for energy savings
  • Class F insulation with Class B motor temperature rise for reliable operation
  • Internal grounding brush to mitigate bearing currents and enhance motor longevity
  • Inverter-duty rated motor, compliant with NEMA MG1 Part 31.4.4.2

Applications

  • General-purpose industrial use
  • Blowers and air handling systems
  • Fan operations
  • Unit handling and material transport
  • HVAC systems
  • Pumping systems
  • Variable speed and control applications
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V
Rated Motor Current
4.8 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
90.7
Nominal Power Factor
96
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
10:1
6
General Data
Frame
145T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
41lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
12.37"
NEMA Design
-
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cULus
Country of Origin
USA
