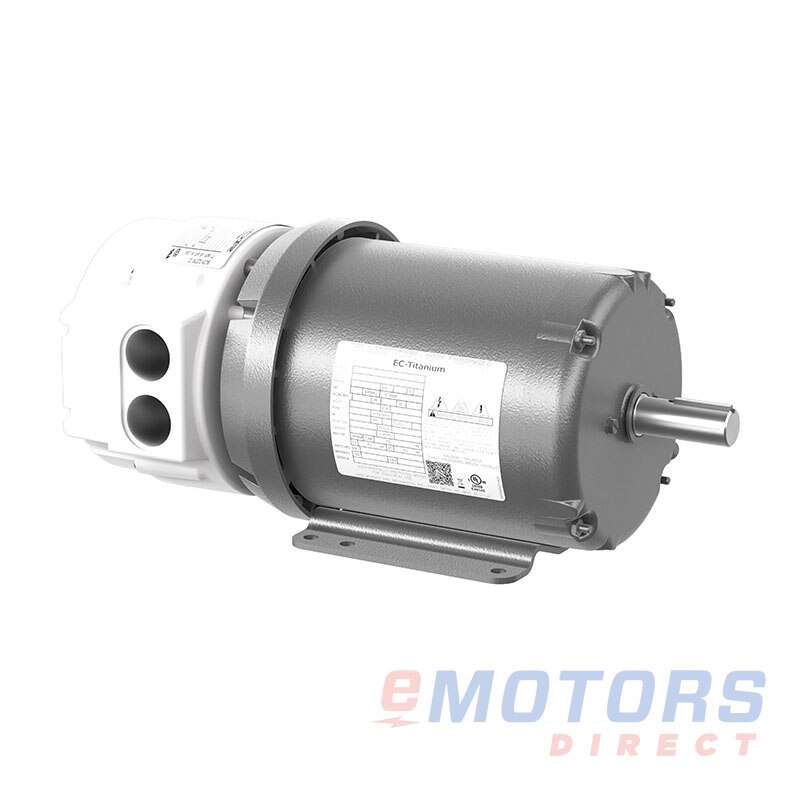

Baldor ECS100A8H2DF4

Baldor · EC Titanium Integrated motor-drive, TEFC, foot mounted, Axial Mount Drive
2 HP 1800 145T TEFC 230V Integrated Drive Motors
Catalog Number: ECS100A8H2DF4
HP
2
RPM
1800
Voltage
230V
Frame
145T
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

The Baldor EC Titanium™ Integrated Motor-Drive, TEFC, Foot Mounted with Axial Mount Drive combines advanced efficiency and robust performance in a compact design. Featuring a permanent magnet motor with PWM AC drive control, it delivers IE5+ efficiency and precise speed control. The motor is housed in an IP54-rated enclosure, ensuring durability in demanding environments. Integrated ABB Ability™ and Bluetooth® connectivity enable easy monitoring and setup, while the Serial Modbus RJ45 interface facilitates seamless communication. With two digital inputs, two configurable analog/digital inputs, and one relay output, it provides versatile control options. Rated for inverter use and compliant with NEMA MG1 Part 31.4.4.2, the motor also features Class F insulation, Class B temperature rise, and an internal grounding brush to reduce bearing currents. This motor is ideal for applications including fans, compressors, blowers, HVAC systems, and pumps, offering energy efficiency and reliable performance.

Availability: Factory Order
