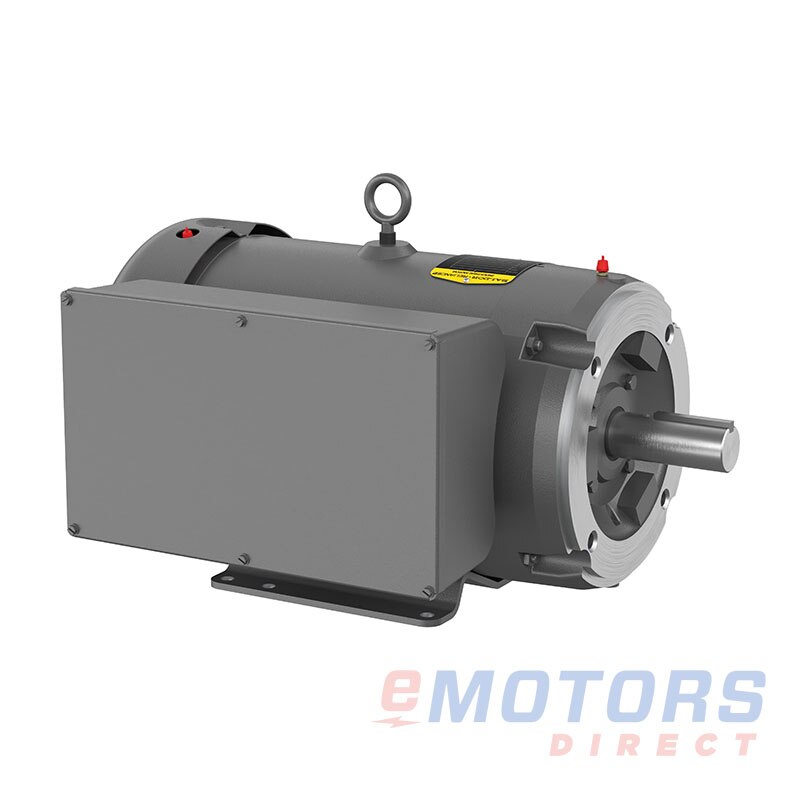

Baldor CL3710T

Baldor · General Purpose, single phase, TEFC, C-face foot mounted
7 1/2 HP 1745 215TC TEFC 208V|230V General Purpose AC Motors
Catalog Number: CL3710T
HP
7 1/2
RPM
1800
Voltage
208V,230V
Frame
215TC
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor general-purpose motor is a versatile, single-phase, TEFC, C-face foot-mounted motor designed for a variety of industrial applications. It features a low-noise, vibration-dampening base that ensures quiet, reliable performance while the dynamically balanced rotor enhances bearing longevity. The motor’s superior switch design optimizes torque delivery for smoother operation and greater efficiency. Built with robust, heavy-gauge steel, this motor offers exceptional durability and is suitable for use in fans, air handling systems, conveyors, pumps, material handling operations, and industrial machinery.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

General Purpose, single phase, TEFC, C-face foot mounted

Features

  • Low-noise, vibration-dampening base ensures smooth operation
  • Dynamically balanced rotor design to prolong bearing life
  • Advanced switch technology for optimized torque delivery
  • Heavy-duty steel construction for superior durability

Applications

  • Ventilation and fan systems
  • Air handling units
  • Conveyor machinery
  • Pump systems
  • Material handling equipment
  • Industrial machine tools
Electrical Data
Rated Motor Output Power
7 1/2 HP
5.625 kW
Rated Motor Speed
1745 RPM
Rated Motor Voltage
208V,230V
Rated Motor Current
31.0/29.0 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
31
Service Factor
1
KVA Code
G
Nominal Efficiency
86.5
Nominal Power Factor
97
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
215TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
127lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
19.75"
NEMA Design
L
Degree of Protection (IP)
IP44
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
90 °C
Temp Code
-
Mechanical Data
DE Bearing
6307
NDE Bearing
6206
Shaft Diameter
1.375"
Shaft Length
3.12"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus
Country of Origin
USA
Warranty
-
  • Data PackageRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download
  • Dimensional DrawingRegister or log in to download
  • Connection DiagramRegister or log in to download
  • CAD 3DRegister or log in to download
