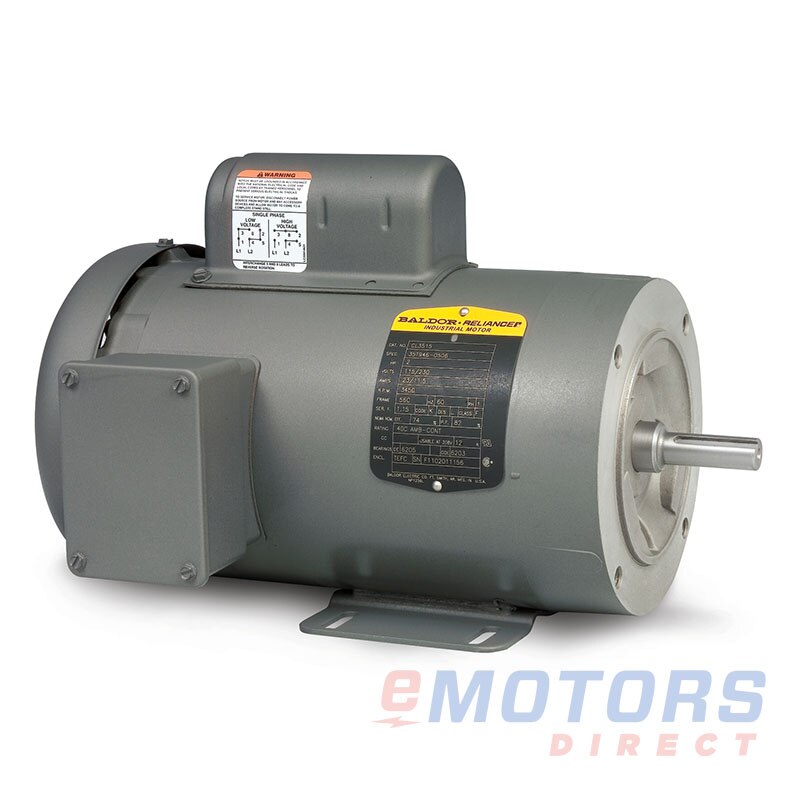

Baldor CL3403

Baldor · General Purpose, single phase, TEFC, C-face foot mounted
1/4 HP 1725 56C TEFC 115V|208-230V General Purpose AC Motors
Catalog Number: CL3403
HP
1/4
RPM
1800
Voltage
115V,208-230V
Frame
56C
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor general-purpose motor is a versatile, single-phase, TEFC, C-face foot-mounted motor designed for a variety of industrial applications. It features a low-noise, vibration-dampening base that ensures quiet, reliable performance while the dynamically balanced rotor enhances bearing longevity. The motor’s superior switch design optimizes torque delivery for smoother operation and greater efficiency. Built with robust, heavy-gauge steel, this motor offers exceptional durability and is suitable for use in fans, air handling systems, conveyors, pumps, material handling operations, and industrial machinery.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

General Purpose, single phase, TEFC, C-face foot mounted

Features

  • Low-noise, vibration-dampening base ensures smooth operation
  • Dynamically balanced rotor design to prolong bearing life
  • Advanced switch technology for optimized torque delivery
  • Heavy-duty steel construction for superior durability

Applications

  • Ventilation and fan systems
  • Air handling units
  • Conveyor machinery
  • Pump systems
  • Material handling equipment
  • Industrial machine tools
Electrical Data
Rated Motor Output Power
1/4 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
2.5 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
3
Service Factor
1.35
KVA Code
L
Nominal Efficiency
55
Nominal Power Factor
57
Leads (Qty, Size)
6
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
20lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.48"
NEMA Design
N
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
