Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New

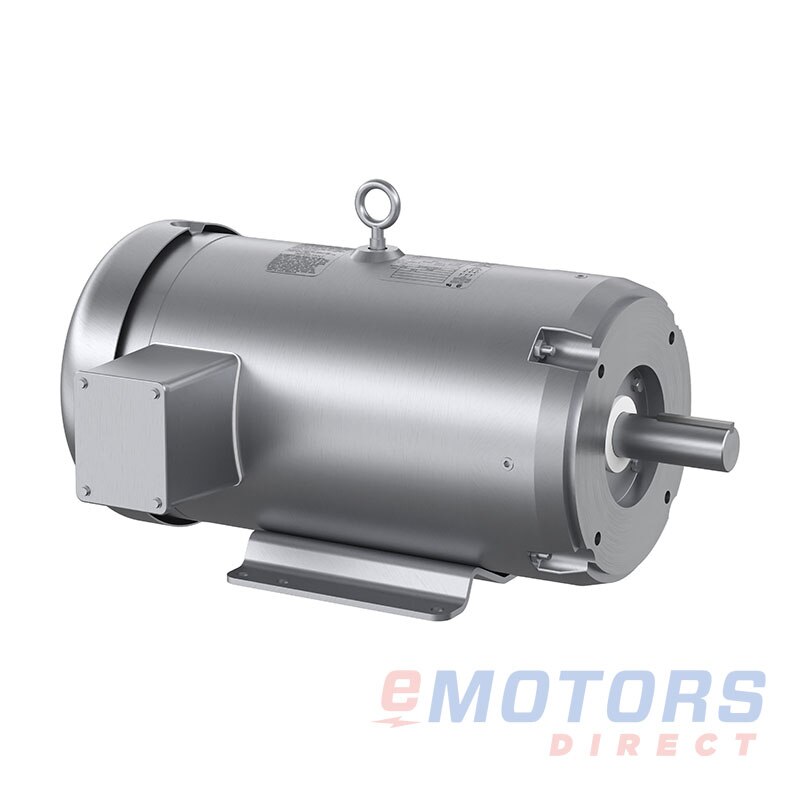

Baldor CESSWDM3710T-5

Baldor · Stainless Steel, three phase, C-face foot mounted
7 1/2 HP 1770 213TC TEFC 575V Washdown Motors
Catalog Number: CESSWDM3710T-5
HP
7 1/2
RPM
1800
Voltage
575V
Frame
213TC
Phase
3
Enclosure
TEFC
Material
Stainless Steel
Mounting
C-Face / Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Stainless Steel, three phase, C-face foot mounted (62)

CSSWDM34571/33450208V, 230V, 460V56C $1,674.54
CSSWDM35341/31755208V, 230V, 460V56C $1,761.34
CSSWDM3538-51/21755575V56C $2,122.11
CSSWDM3542-53/41740575V56C $2,196.38
CESSWDM3546-511775575V56C $2,232.09
CESSWDM3546-H11770230V, 460V56HC $2,232.09
CESSWDM354611745230V, 460V56C $2,232.09
CESSWDM3545-H13450230V, 460V56HC $2,240.75
CESSWDM354513450230V, 460V56C $2,240.75
CESSWDM3550-51 1/23450575V56C $2,254.26
CESSWDM35501 1/23500230V, 460V56C $2,254.26
CESSWDM3546T-511765575V143TC $2,264.86
CESSWDM3546T11760230V, 460V143TC $2,264.86
CESSWDM3550T1 1/23500230V, 460V143TC $2,272.57
CESSWDM3554-H1 1/21770230V, 460V56HC $2,274.51
CESSWDM35541 1/21760230V, 460V56C $2,274.51
CSSWDM3539-H1/21175208-230V, 460V56HC $2,288.97
CESSWDM3554T-51 1/21760575V145TC $2,308.27
CESSWDM3554T1 1/21760230V, 460V145TC $2,308.27
CSSWDM3543-H3/41170230V, 460V56HC $2,483.83
CESSWDNM3556-H11180230V, 460V56HC $2,527.24
CESSWDM3558-H21765230V, 460V56HC $2,740.40
CESSWDM355821750230V, 460V56C $2,740.40
CESSWDM3555T23450208V, 230V, 460V145TC $2,753.91
CESSWDM3558T-521750575V145TC $2,773.22
CESSWDM3558T21750230V, 460V145TC $2,773.22
CESSWDNM3555-H23450230V, 460V56HC $3,003.76
CESSWDM3611T-531760575V182TC $3,241.99
CESSWDM3559T-533470575V145TC $3,318.20
CESSWDM3559T33470208V, 230V, 460V145TC $3,318.20
CESSWDNM3610T-533500575V182TC $3,543.92
CESSWDM3610T33500230V, 460V182TC $3,543.92
CESSWDM3615T-551750575V184TC $3,648.09
CESSWDM3613T-553480575V184TC $3,770.61
CESSWDM3709T-57 1/23500575V213TC $4,425.54
CESSWDM3710T-57 1/21770575V213TC $4,563.49
CESSWDM3711T-5103500575V215TC $4,937.75
CESSWDM3714T-5101770575V215TC $5,033.24
CESSWDM3713T153500230V, 460V215TC $7,410.00
CESSWDM23933T-5151765575V254TC $9,918.90
CESSWDM23933T151800230V, 460V254TC $9,918.90
CESSWDM23934T201800230V, 460V256TC $11,502.77
CESSWDM41906T203600230V, 460V256TC $11,568.35
CESSWDNM3555T-523475575V143TC Contact for Pricing
CESSWDNM3611T-531750575V182TC Contact for Pricing
CESSWDM3550-H1 1/23500230V, 460V56HC Contact for Pricing
CSSWDM3542-H3/41765208-230V, 460V56HC Contact for Pricing
CSSWDM3541-H3/43450230V, 460V56HC Contact for Pricing
CSSWDM3538-H1/21770208-230V, 460V56HC Contact for Pricing
CSSWDM3537-H1/23450208-230V, 460V56HC Contact for Pricing

Stainless Steel, three phase, C-face foot mounted

Features

  • Motor frame, endplates, conduit box, shaft, base, and hardware made from durable 300 series stainless steel
  • Four condensate drains located in each endplate
  • Sealed endplate rabbets for added protection
  • Labyrinth seals on both drive-end (DE) and opposite drive-end (ODE)
  • Includes a 3-year warranty for peace of mind

Applications

  • Ideal for pumps and wastewater systems
  • Suitable for food processing environments
  • Perfect for wet conditions
  • Great for packaging applications
Electrical Data
Rated Motor Output Power
7 1/2 HP
5.625 kW
Rated Motor Speed
1770 RPM
Rated Motor Voltage
575V
Rated Motor Current
7.6 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
J
Nominal Efficiency
91.7
Nominal Power Factor
82
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
213TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
139lb
Double Drilled
Yes
Frame Material
Stainless Steel
C-Dimension
20.07"
NEMA Design
A
Degree of Protection (IP)
IP56
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
63 °C
Temp Code
-
Mechanical Data
DE Bearing
6307
NDE Bearing
6206
Shaft Diameter
1.375"
Shaft Length
3.12"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA EEV, UR
Country of Origin
USA
Warranty
3-Year
