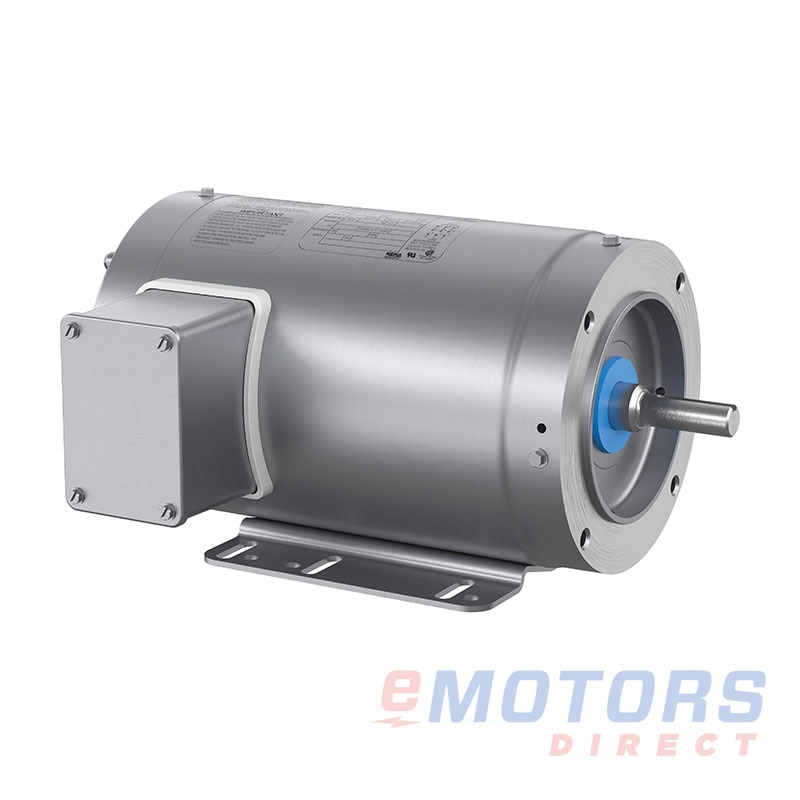

Baldor CESSWDM3546-H

Baldor · Stainless Steel, three phase, C-face foot mounted
1 HP 1770 56HC TENV 230V|460V Washdown Motors
Catalog Number: CESSWDM3546-H
HP
1
RPM
1800
Voltage
230V,460V
Frame
56HC
Phase
3
Enclosure
TENV
Material
Stainless Steel
Mounting
C-Face / Rigid

Product-line overview

The Baldor stainless steel three-phase, C-face foot-mounted motor is designed for durability and performance in demanding environments. Made from high-quality 300 series stainless steel, this motor features corrosion-resistant construction with a stainless steel frame, endplates, conduit box, shaft, base, and hardware. It is equipped with four condensate drains in each endplate and sealed endplate rabbets for added protection. Labyrinth seals on both the drive-end (DE) and opposite drive-end (ODE) ensure superior sealing, providing long-lasting performance in harsh conditions. Backed by a 3-year warranty, this motor is ideal for applications such as pumps, wastewater systems, food processing, and packaging, where reliability and resistance to wet environments are essential.

Availability: Factory Order (2-3 weeks)

Available for Delivery

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: Stainless Steel, three phase, C-face foot mounted (62)

CSSWDM34571/33450208V, 230V, 460V56C $1,674.54
CSSWDM35341/31755208V, 230V, 460V56C $1,761.34
CSSWDM3538-51/21755575V56C $2,122.11
CSSWDM3542-53/41740575V56C $2,196.38
CESSWDM3546-511775575V56C $2,232.09
CESSWDM3546-H11770230V, 460V56HC $2,232.09
CESSWDM354611745230V, 460V56C $2,232.09
CESSWDM3545-H13450230V, 460V56HC $2,240.75
CESSWDM354513450230V, 460V56C $2,240.75
CESSWDM3550-51 1/23450575V56C $2,254.26
CESSWDM35501 1/23500230V, 460V56C $2,254.26
CESSWDM3546T-511765575V143TC $2,264.86
CESSWDM3546T11760230V, 460V143TC $2,264.86
CESSWDM3550T1 1/23500230V, 460V143TC $2,272.57
CESSWDM3554-H1 1/21770230V, 460V56HC $2,274.51
CESSWDM35541 1/21760230V, 460V56C $2,274.51
CSSWDM3539-H1/21175208-230V, 460V56HC $2,288.97
CESSWDM3554T-51 1/21760575V145TC $2,308.27
CESSWDM3554T1 1/21760230V, 460V145TC $2,308.27
CSSWDM3543-H3/41170230V, 460V56HC $2,483.83
CESSWDNM3556-H11180230V, 460V56HC $2,527.24
CESSWDM3558-H21765230V, 460V56HC $2,740.40
CESSWDM355821750230V, 460V56C $2,740.40
CESSWDM3555T23450208V, 230V, 460V145TC $2,753.91
CESSWDM3558T-521750575V145TC $2,773.22
CESSWDM3558T21750230V, 460V145TC $2,773.22
CESSWDNM3555-H23450230V, 460V56HC $3,003.76
CESSWDM3611T-531760575V182TC $3,241.99
CESSWDM3559T-533470575V145TC $3,318.20
CESSWDM3559T33470208V, 230V, 460V145TC $3,318.20
CESSWDNM3610T-533500575V182TC $3,543.92
CESSWDM3610T33500230V, 460V182TC $3,543.92
CESSWDM3615T-551750575V184TC $3,648.09
CESSWDM3613T-553480575V184TC $3,770.61
CESSWDM3709T-57 1/23500575V213TC $4,425.54
CESSWDM3710T-57 1/21770575V213TC $4,563.49
CESSWDM3711T-5103500575V215TC $4,937.75
CESSWDM3714T-5101770575V215TC $5,033.24
CESSWDM3713T153500230V, 460V215TC $7,410.00
CESSWDM23933T-5151765575V254TC $9,918.90
CESSWDM23933T151800230V, 460V254TC $9,918.90
CESSWDM23934T201800230V, 460V256TC $11,502.77
CESSWDM41906T203600230V, 460V256TC $11,568.35
CESSWDNM3555T-523475575V143TC Contact for Pricing
CESSWDNM3611T-531750575V182TC Contact for Pricing
CESSWDM3550-H1 1/23500230V, 460V56HC Contact for Pricing
CSSWDM3542-H3/41765208-230V, 460V56HC Contact for Pricing
CSSWDM3541-H3/43450230V, 460V56HC Contact for Pricing
CSSWDM3538-H1/21770208-230V, 460V56HC Contact for Pricing
CSSWDM3537-H1/23450208-230V, 460V56HC Contact for Pricing

Stainless Steel, three phase, C-face foot mounted

Features

  • Motor frame, endplates, conduit box, shaft, base, and hardware made from durable 300 series stainless steel
  • Four condensate drains located in each endplate
  • Sealed endplate rabbets for added protection
  • Labyrinth seals on both drive-end (DE) and opposite drive-end (ODE)
  • Includes a 3-year warranty for peace of mind

Applications

  • Ideal for pumps and wastewater systems
  • Suitable for food processing environments
  • Perfect for wet conditions
  • Great for packaging applications
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1770 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
3.34/1.67 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
3.3
Service Factor
1.15
KVA Code
M
Nominal Efficiency
85.5
Nominal Power Factor
66
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56HC
Enclosure
TENV
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
41lb
Double Drilled
Yes
Frame Material
Stainless Steel
C-Dimension
11.97"
NEMA Design
B
Degree of Protection (IP)
IP56
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
26 °C
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
2.06"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cURus EEV
Country of Origin
USA
Warranty
3-Year
