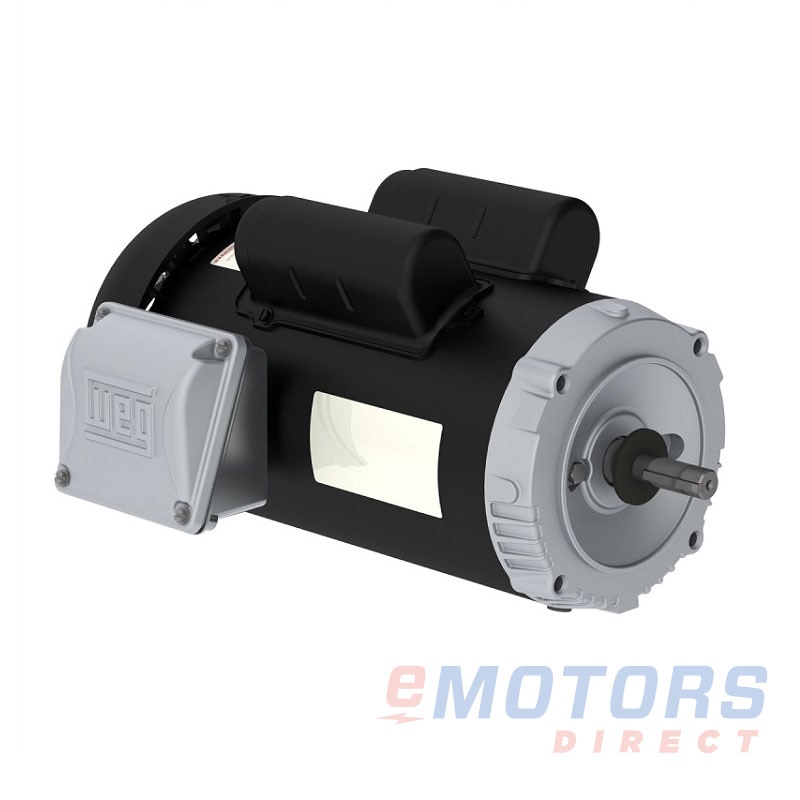

WEG KT000102W01

WEG · W01 Single Phase Jet Pump TEFC
1 HP 3600 56C TEFC 115V,208-230V Pump Motors
Catalog Number: KT000102W01
HP
1
RPM
3600
Voltage
115V,208-230V
Frame
56C
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Round Body

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications.

Feature

  • Single phase, 2 & 4 pole, 60Hz
  • Voltage: 115/208-230V
  • Start capacitor
  • Die cast aluminum squirrel cage rotor
  • Totally Enclosed Fan Cooled (IP55)
  • Insulation class “F” (Δt 80°C)
  • Continuous duty (S1), 40ºC ambient
  • Automatic thermal overload protection
  • Keyed shaft
  • Rotation: Non-reversible
  • Stainless steel shaft end
  • WEG paint plan: 207N
  • Color: Munsell N1 - Flat Black
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
3500 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
10.1/5.06 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
5.64
Service Factor
1.15
KVA Code
-
Nominal Efficiency
70
Nominal Power Factor
92
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
28.7lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
13.144"
NEMA Design
L
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
CCWNDE
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6203-2RS
NDE Bearing
6202-ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cULus
Country of Origin
BRAZIL
Warranty
2-Year
