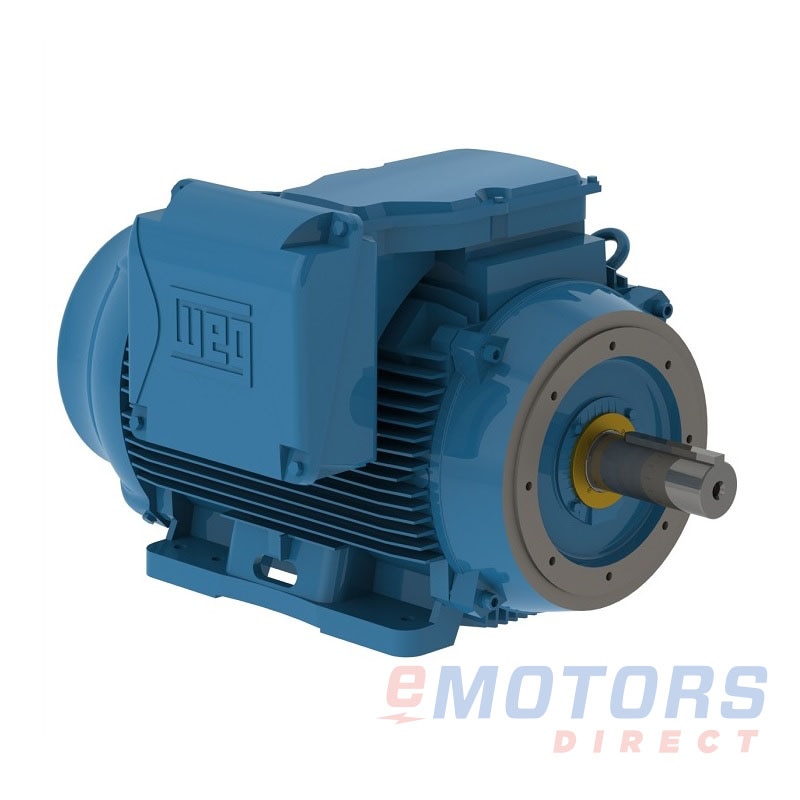

WEG IE350404W22587TCIS

WEG · W22 IEEE 841 Severe Duty
350 HP 1800 586TC,587TC TEFC 460V Severe Duty IEEE 841 Motors
Catalog Number: IE350404W22587TCIS
HP
350
RPM
1800
Voltage
460V
Frame
586TC,587TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

WEG: W22 IEEE 841 Severe Duty (642)

IE300504W22449TDIS3001780575V449TD $47,083.67
IE300504W22587TCIS3001790575V586TC, 587TC $53,365.10
IE300404W22587TCIS3001790460V586TC, 587TC $53,365.10
IE300504W22587TDIS3001790575V586TD, 587TD $53,898.16
IE300404W22587TDIS3001790460V586TD, 587TD $53,898.16
IE350504W22587TCIS3501790575V586TC, 587TC $57,204.81
IE350404W22587TCIS3501790460V586TC, 587TC $57,204.81
IE350504W22587TDIS3501790575V586TD, 587TD $57,777.87
IE350404W22587TDIS3501790460V586TD, 587TD $57,777.87
IE350502W22587TSCIS3503578575V586TSC, 587TSC $61,224.55
IE350402W22587TSCIS3503578460V586TSC, 587TSC $61,224.55
IE200508W22587TCIS2003570575V586TC, 587TC $61,784.67
IE200408W22587TCIS2003570460V586TC, 587TC $61,784.67
IE350502W22587TSDIS3503578575V586TSD, 587TSD $61,836.45
IE350402W22587TSDIS3503578460V586TSD, 587TSD $61,836.45
IE200508W22587TDIS2003570575V586TD, 587TD $62,402.46
IE200408W22587TDIS2003570460V586TD, 587TD $62,402.46
IE400502W22587TSCIS4003575575V586TSC, 587TSC $62,611.92
IE400402W22587TSCIS4003575460V586TSC, 587TSC $62,611.92
IE400504W22587TCIS4001790575V586TC, 587TC $62,926.11
IE400404W22587TCIS4001790460V586TC, 587TC $62,926.11
IE400502W22587TSDIS4003575575V586TSD, 587TSD $63,237.94
IE400402W22587TSDIS4003575460V586TSD, 587TSD $63,237.94
IE400504W22587TDIS4001790575V586TD, 587TD $63,555.67
IE400404W22587TDIS4001790460V586TD, 587TD $63,555.67
IE300506W22L449TDIS3001190575V449TD $67,555.40
IE250508W22587TCIS2503570575V586TC, 587TC $68,001.38
IE250408W22587TCIS2503570460V586TC, 587TC $68,001.38
IE250508W22587TDIS2503570575V586TD, 587TD $68,681.54
IE250408W22587TDIS2503570460V586TD, 587TD $68,681.54
IE350504W22L449TDIS3501790575V449TD $69,288.74
IE250506W22587TCIS250895575V586TC, 587TC $70,299.56
IE250406W22587TCIS250895460V586TC, 587TC $70,299.56
IE250506W22587TDIS250895575V586TD, 587TD $71,002.06
IE250406W22587TDIS250895460V586TD, 587TD $71,002.06
IE400502W22L449TSDIS4003580575V449TSD $72,723.64
IE350506W22587TCIS3501190575V586TC, 587TC $77,552.97
IE350406W22587TCIS3501190460V586TC, 587TC $77,552.97
IE350506W22587TDIS3501190575V586TD, 587TD $78,328.45
IE350406W22587TDIS3501190460V586TD, 587TD $78,328.45
IE350506W22L449TDIS3501190575V449TD $81,875.13
IE400504W22L449TDIS4001790575V449TD $84,840.53
IE350508W22587TCIS350895575V586TC, 587TC $103,869.56
IE350408W22587TCIS350895460V586TC, 587TC $103,869.56
IE350508W22587TDIS350895575V586TD, 587TD $104,908.62
IE350408W22587TDIS350895460V586TD, 587TD $104,908.62
IE300508W22587TCIS300895575V586TC, 587TC $112,723.35
IE300408W22587TCIS300895460V586TC, 587TC $112,723.35
IE300508W22587TDIS300895575V586TD, 587TD $113,850.66
IE300408W22587TDIS300895460V586TD, 587TD $113,850.66

Description

WEG's W22 NEMA Premium motors meet or exceed all NEMA Premium® requirements for energy efficiency. These WEG IEEE 841 W22 NEMA Premium Efficiency Mill and Chemical Duty Motors are specially suited for Pulp and Paper Mills, Petrochemical, Steel Mills and applications requiring Severe Duty long life motors. WEG IEEE 841 motors come with an extended 60 month warranty.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4 and 6 pole, 60Hz, 1.25 (up to 100HP) / 1.15 (from 125HP and up) Service Factor
  • Voltage: 230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “B”
  • Continuous duty (S1)
  • 104ºF (40ºC) ambient temperature
  • Altitude: 3300 ft (1000m)
  • Double Gasketed terminal box
  • Re-configurable Terminal Box for frames 445/7T and up
Electrical Data
Rated Motor Output Power
350 HP
260 kW
Rated Motor Speed
1790 RPM
Rated Motor Voltage
460V
Rated Motor Current
394 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
96.2
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
6:1
10
General Data
Frame
586TC,587TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
2674lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
61.902"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6322-ZZ
NDE Bearing
6319-ZZ
Shaft Diameter
3.875"
Shaft Length
11.625"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
BRAZIL
Warranty
5-Year
