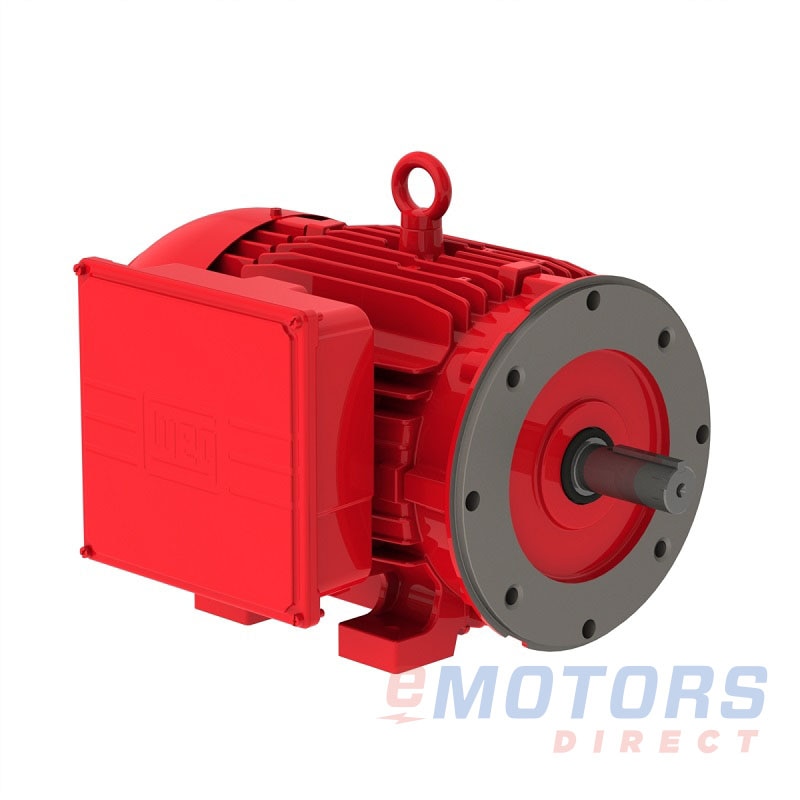

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

WEG FD010104W22C

WEG · Single Phase Farm Duty
10 HP 4P 213/5TC 1PH 230V TEFC
Catalog Number: FD010104W22C
HP
10
RPM
1800
Voltage
230V
Frame
215TC
Phase
1
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

WEG: Single Phase Farm Duty (85)

FD.33104W011/31735115V, 230V56 $249.12
FD.50104W011/21730115V, 230V56 $261.59
FDAD.33104W011/31800115-208V, 230V56Z $278.00
FD.33104W01C1/31735115V, 230V56C $283.20
FDAD.33104W01FT1/31800115-208V, 230V56Z $286.42
FD.75104W013/41745115V, 230V56 $288.00
FD.50104W01C1/21800115-208V, 230V56C $297.25
FDAD.50104W011/21800115-208V, 230V56Z $299.66
FD000104W0111745115V, 230V56 $304.48
FDAD.50104W01FT1/21800115-208V, 230V56Z $309.29
FD000104SW0111745115V, 230V143T, 145T $320.12
FD.75104W01C3/41800115-208V, 230V56C $321.32
FD000104W01C11745115V, 230V56C $333.36
FDAD.75104W013/41800115-208V, 230V56Z $336.97
FDAD.75104W01FT3/41800115-208V, 230V56Z $349.01
FD001104W011 1/21800115-208V, 230V56H $352.62
FD000104SW01C11800115-208V, 230V143TC, 145TC $356.22
FDAD000104W0111800115-208V, 230V56Z $367.06
FD001104SW011 1/21745115V, 230V143T, 145T $367.06
FD001104W01C1 1/21745115V, 230V56HC $377.89
FDAD000104W01FT11800115-208V, 230V56Z $380.29
FD001104SW01C1 1/21800115-208V, 230V143TC, 145TC $394.74
FD002104W0121745115V, 230V56H $417.59
FDAD001104W011 1/21800115-208V, 230V56Z $424.82
FDAD001104W01FT1 1/21800115-208V, 230V56Z $440.46
FD002104W01C21800115-208V, 230V56HC $456.12
FD002104SW01C21800115-208V, 230V143TC, 145TC $487.41
FDGD003102W0133600230V143TZ, 145TZ $683.56
FDGD005102W014 1/23600230V143TZ, 145TZ $754.57
FD002104W01182T21800115-208V, 230V182T, 184T $765.40
FD003104W0131800230V182T, 184T $797.90
FD003104W01C31800230V182TC, 184TC $878.53
FD005104W0151800230V182T, 184T $932.69
FDGD007102W01Z7 1/23600230V182TZ, 184TZ $960.37
FDGD007102W017 1/23600230V182TZ, 184TZ $960.37
FD005104W01C51800230V182TC, 184TC $1,028.96
FD005104W22C51730230V182TC, 184TC $1,054.23
FD003104W22C31745230V184TC $1,090.67
FD005104SW0151800230V213T, 215T $1,132.46
FDGD010102W01103600230V182TZ, 184TZ $1,133.66
FD005104SW01C51800230V213TC, 215TC $1,187.81
FD007104W01Z7 1/21800230V213T, 215T $1,362.33
FD007104W017 1/21800230V213T, 215T $1,362.33
FD007104W01C7 1/21800230V213TC, 215TC $1,424.91
FD010104W01101800230V213T, 215T $1,492.29
FD007104W22C7 1/21750230V213TC, 215TC $1,507.95
FD010104W01C101800230V213TC, 215TC $1,590.99
FDGD015102W01153600230V215TZ, 213TZ $1,746.23
FD010104W22C101740230V215TC $1,945.71
FD012104W22C12 1/21740230V213TC, 215TC $2,102.45

Description

WEG Compressor Duty Motors are designed for compressors| pumps and other applications requiring high starting and breadkdown torque.

Feature

  • Single-phase| 4 poles| 60HZ| Service Factor 1.15
  • Voltage: 115/230V (up to frame G145T)| 230V (above frame G145T)
  • Totally Enclosed Fan Cooled (IP55)
  • Capacitor Start
  • Run capacitor for 2HP and up
  • V Ring in both endshields
  • Manual thermal overload protection
  • High starting torque
  • Insulation class:
    • ‘B’ up to frame G145T
    • ‘F’ for frame W182/4T and up
  • Ball bearings
  • Continuous Duty (S1)| 40°C ambient
  • Paint: RAL 3002 (Red)
  • WEG paint plan: 207A
Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
1740 RPM
Rated Motor Voltage
230V
Rated Motor Current
40.5 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
84
Nominal Power Factor
95
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
215TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
185lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
19.5"
NEMA Design
-
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6308-2RS
NDE Bearing
6206-2RS
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
