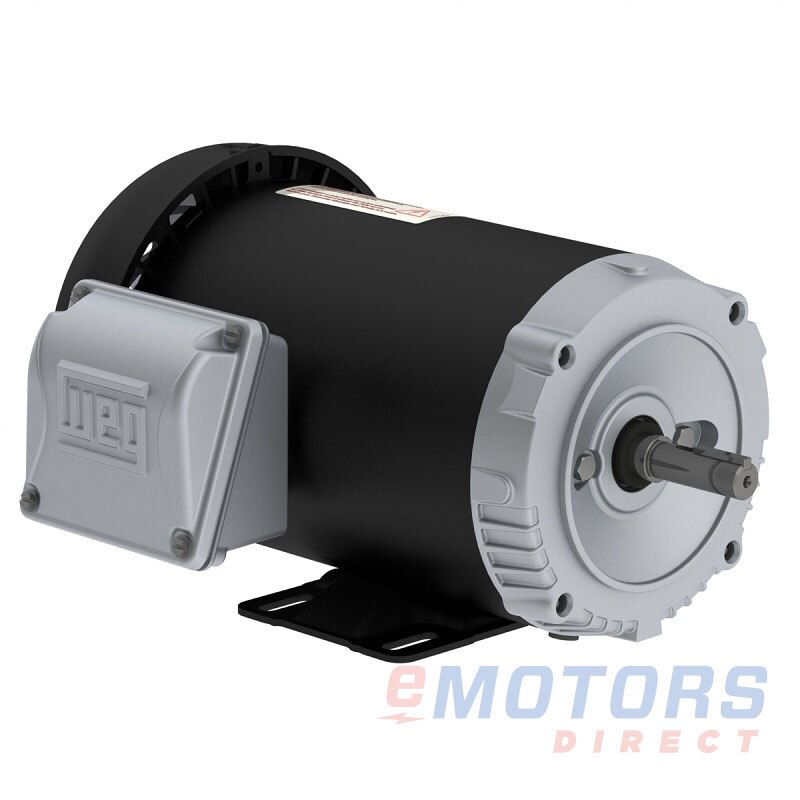

WEG · W01 NEMA Premium TEFC 3PH 56 Frame
1 HP 1800 56C TEFC 575V General Purpose AC Motors
Catalog Number: FC000504W01DOE
Alternative Number: FC000504
HP
1
RPM
1800
Voltage
575V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid
USD$727.91

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

WEG: W01 NEMA Premium TEFC 3PH 56 Frame (102)

TF.50504FW01DOE1/21800575V48 $208.62
TF.50404FW01DOE1/21800208-230V, 460V48 $208.62
FC.25504SW01DOE1/41740575V56C $218.26
FC.33404SW01DOE1/31800208-230V, 460V56C $233.94
FC.33504SW01DOE1/31740575V56C $233.94
FC.50204W01DOE1/21800200V, 400V56C $254.44
FC.50504SW01DOE1/21730575V56C $254.44
FC.50404SW01DOE1/21730208-230V, 460V56C $254.44
FC.75204W01DOE3/41800200V, 400V56C $270.12
FC.75504SW01DOE3/41760575V56C $270.12
FC.75404SW01DOE3/41760208-230V, 460V56C $270.12
FC.25504W01DOE1/41740575V56C $270.95
FC.75502SW01DOE3/43600575V56C $278.55
FC.33504W01DOE1/31740575V56C $290.40
FC.25502W01DOE1/43460575V56C $290.40
FC.33502W01DOE1/33450575V56C $302.38
FC.50504W01DOE1/21730575V56C $315.85
FC.50506SW01DOE1/21200575V56C $324.38
FC000504SW01DOE11765575V56C $324.38
FC000404SW01DOE11765230V, 460V56C $324.38
FC000204W01DOE11765208V56C $324.38
FC.50502W01DOE1/23435575V56C $329.33
FC.25506W01DOE1/41160575V56C $330.83
FC.75504W01DOE3/41760575V56C $335.31
FC.33506W01DOE1/31160575V56C $336.81
FC.75502W01DOE3/43440575V56C $345.80
FC001204W01DOE1 1/21800200V, 400V56HC $383.46
FC001504SW01DOE1 1/21750575V56C $383.46
FC001404SW01DOE1 1/21750230V, 460V56C $383.46
FC000502W01DOE13435575V56C $389.20
FC000504W01DOE11765575V56C $402.67
FC.50506W01DOE1/21160575V56C $402.67
FC002204W01DOE21800200V, 400V56HC $411.20
FC002504SW01DOE21745575V56C $411.20
FC002404SW01DOE21745230V, 460V56C $411.20
FC.75506W01DOE3/41160575V56HC $431.11
FC001502W01DOE1 1/23520575V56HC $447.58
FC001402W01DOE1 1/23520230V, 460V56HC $447.58
FC001504W01DOE1 1/21750575V56HC $476.03
FC001404W01DOE1 1/21750230V, 460V56HC $476.03
TF003502W01DOE33500575V56H $482.01
TF003402W01DOE33500208-230V, 460V56H $482.01
FC002502W01DOE23520575V56HC $486.50
FC002402W01DOE23520230V, 460V56HC $486.50
FC000506W01DOE11145575V56HC $505.97
FC000406W01DOE11145230V, 460V56HC $505.97
FC002504W01DOE21750575V56HC $510.46
FC002404W01DOE21750230V, 460V56HC $510.46
FC003502W01DOE33500575V56HC $525.43
FC003402W01DOE33500208-230V, 460V56HC $525.43

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and Premium efficiency, these versatile motors provide torque and durability for the severest applications.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4 and 6 poles, 60HZ, Service Factor 1.15
  • Voltage:230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine"
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “A”
  • Continuous Duty (S1)
  • 104°F (40°C) ambient temperature
  • Double Gasketed terminal box
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1765 RPM
Rated Motor Voltage
575V
Rated Motor Current
1.18 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
85.5
Nominal Power Factor
.71
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
5:1
12
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
37.9lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
13.504"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6303-ZZ
NDE Bearing
6202-ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, cULus
Country of Origin
BRAZIL
Warranty
2-Year

Product Line Review

Reviews for this product are combined with others in the same product line, as they share the same design but differ in specifications like HP or RPM.

5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0

There are no reviews for this product yet.

Be the first to write a review
