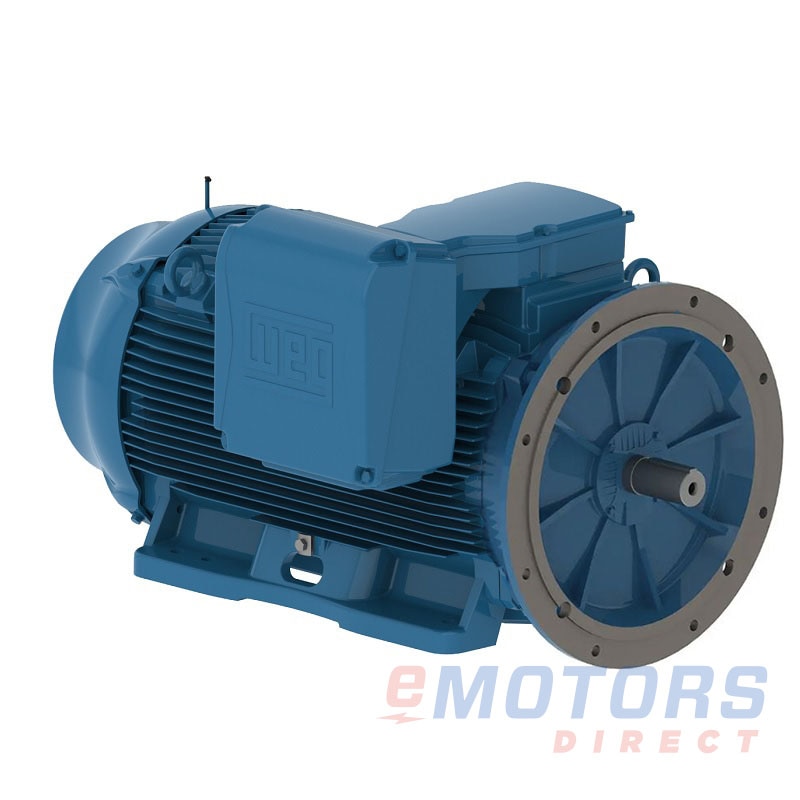

WEG DT650502NPBBW22

WEG · W22 NEMA Premium TEFC
5.0
650 HP 1800 588TSD,589TSD TEFC 575V General Purpose AC Motors
Catalog Number: DT650502NPBBW22
HP
650
RPM
1800
Voltage
575V
Frame
588TSD,589TSD
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
D-Flange / Rigid

Availability: Factory Order

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

WEG: W22 NEMA Premium TEFC (1297)

CT300502NPRBW22587TS3003580575V586TSC, 587TSC $52,425.49
CT300502NPBBW22587TS3003580575V586TSC, 587TSC $52,425.49
CT300402NPRBW22587TS3003580230V, 460V586TSC, 587TSC $52,425.49
CT300402NPBBW22587TS3003580230V, 460V586TSC, 587TSC $52,425.49
CT350502NPRBW22587TS3503580575V586TSC, 587TSC $58,675.80
CT350502NPBBW22587TS3503580575V586TSC, 587TSC $58,675.80
CT350402NPRBW22587TS3503580230V, 460V586TSC, 587TSC $58,675.80
CT350402NPBBW22587TS3503580230V, 460V586TSC, 587TSC $58,675.80
CT400502NPRBW22587TS4003580575V586TSC, 587TSC $62,925.21
CT400502NPBBW22587TS4003580575V586TSC, 587TSC $62,925.21
CT400402NPRBW22587TS4003580230V, 460V586TSC, 587TSC $62,925.21
CT400402NPBBW22587TS4003580230V, 460V586TSC, 587TSC $62,925.21
DT500504NPRBW22587T5001789575V586TD, 587TD $65,591.11
DT500504NPBBW22587T5001789575V586TD, 587TD $65,591.11
CT450502NPRBW22587TS4503575575V586TSC, 587TSC $65,900.03
CT450502NPBBW22587TS4503575575V586TSC, 587TSC $65,900.03
CT450402NPRBW22587TS4503575230V, 460V586TSC, 587TSC $65,900.03
CT450402NPBBW22587TS4503575230V, 460V586TSC, 587TSC $65,900.03
DT550504NPRBW225501790575V586TD, 587TD $66,211.31
DT550504NPBBW225501790575V586TD, 587TD $66,211.31
DT550502NPRBW225503585575V588TSD, 589TSD $68,346.63
DT550502NPBBW225503585575V588TSD, 589TSD $68,346.63
CT500502NPRBW225003580575V586TSC, 587TSC $69,019.89
CT500502NPBBW225003580575V586TSC, 587TSC $69,019.89
CT500402NPRBW225003580230V, 460V586TSC, 587TSC $69,019.89
CT500402NPBBW225003580230V, 460V586TSC, 587TSC $69,019.89
DT600504NPRBW226001790575V586TD, 587TD $69,605.89
DT600504NPBBW226001790575V586TD, 587TD $69,605.89
DT500502NPRBW225003580575V586TSD, 587TSD $69,710.83
DT500502NPBBW225003580575V586TSD, 587TSD $69,710.83
DT600502NPRBW226003585575V588TSD, 589TSD $69,791.01
DT600502NPBBW226003585575V588TSD, 589TSD $69,791.01
DT650504NPRBW226501790575V588TD, 589TD $73,493.32
DT650504NPBBW226501790575V588TD, 589TD $73,493.32
DT650502NPRBW226501790575V588TSD, 589TSD $73,740.92
DT650502NPBBW226501790575V588TSD, 589TSD $73,740.92
DT700504NPRBW227001790575V588TD, 589TD $75,572.04
DT700504NPBBW227001790575V588TD, 589TD $75,572.04
DT700502NPRBW227003585575V588TSD, 589TSD $76,852.52
DT700502NPBBW227003585575V588TSD, 589TSD $76,852.52
DT450508NPRBW22450895575V588TD, 589TD $77,409.05
DT450508NPBBW22450895575V588TD, 589TD $77,409.05
DT500506NPRBW225001190575V586TD, 587TD $77,688.49
DT500506NPBBW225001190575V586TD, 587TD $77,688.49
DT750504NPRBW227501790575V588TD, 589TD $78,138.90
DT750504NPBBW227501790575V588TD, 589TD $78,138.90
DT550506NPRBW225501190575V588TD, 589TD $79,172.95
DT550506NPBBW225501190575V588TD, 589TD $79,172.95
DT600506NPRBW226001190575V588TD, 589TD $82,515.65
DT600506NPBBW226001190575V588TD, 589TD $82,515.65

Description

High performance with maximum energy efficiency is the goal of the new WEG W22 electric motor. High efficiency and low cost of ownership throughout the entire motor lifetime has been the basis of development. A design created to maximize performance and energy savings.New Cooling System Redesigned to provide improved airflow through all motor frames keeping low operational temperatures and assuring reliability and extended lifetime.

Feature

  • Motors are compliant with DOE and NRCAN
  • Three-phase, 2, 4, 6 and 8 pole, 60Hz, 1.25 (up to 100HP) / 1.15 (from 125HP and up) Service Factor
  • Voltage: 230/460V, 575V
  • Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
  • Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
  • NEMA design “B”
  • Continuous duty (S1)
  • 104ºF (40ºC) ambient temperature
  • Altitude: 3300 ft (1000m)
  • Double Gasketed terminal box
  • Re-configurable Terminal Box for frames 445/7T and up
Electrical Data
Rated Motor Output Power
650 HP
480 kW
Rated Motor Speed
1790 RPM
Rated Motor Voltage
575V
Rated Motor Current
548 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
96.6
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
1000:1
0.06
Constant Torque
6:1
10
General Data
Frame
588TSD,589TSD
Enclosure
TEFC
Mounting
D-Flange / Rigid
Number of Speeds
-
Approximate Weight
4635lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
62.506"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6314-ZZ
NDE Bearing
6314-ZZ
Shaft Diameter
2.375"
Shaft Length
4.75"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
BRAZIL
Warranty
2-Year
