Nidec 1877

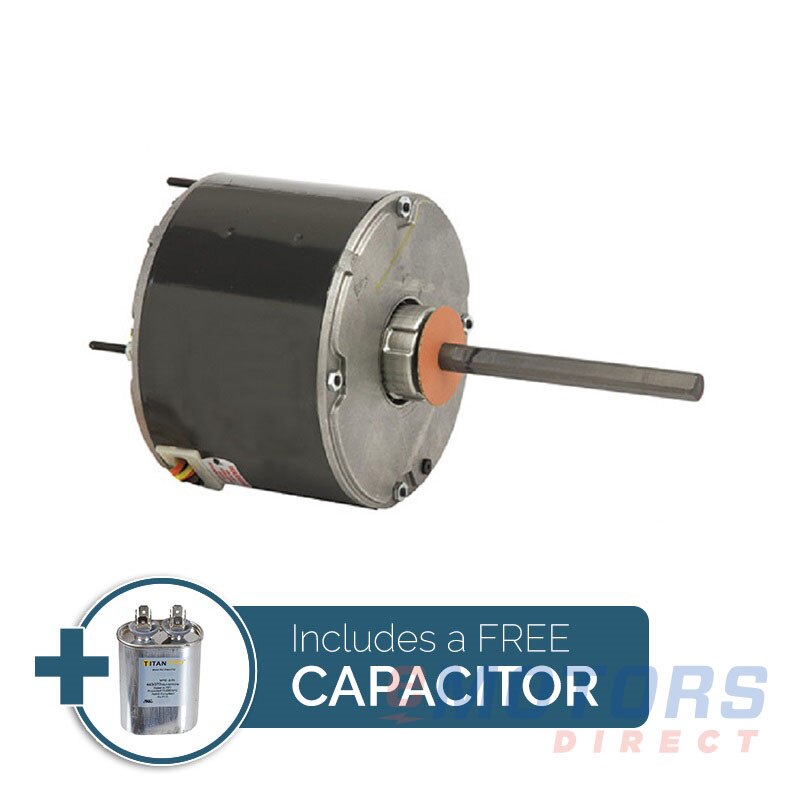

Nidec · Permanent Split Capacitor Condenser Fan 5.6" Diameter TEAO
1/3 HP 1075 48Y Fr TEAO 208-230V Permanent Split Capacitor Capacitor Included: TOCF7.5
Catalog Number: 1877
Model Number: K055MAE0216012B
HP
1/3
RPM
1200
Voltage
208-230V
Frame
48Y
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Band,Stud

Product-line overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

NO STOCKING INFORMATION AVAILABLE

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (12)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
CENTURY ORM5458B, FE1036SF, F1036S, FE1036SC, FE1036S
PACKARD43733
US MOTORS1861PEP
A1 F2804
AO SMITH 323P131, 323P531, 323P377
EMERSON K055TEF8592012B, K1877, K55LMZ-0160, K055LMZ0160003H, K55MAE-0216
FASCO D-7748
GENERAL ELECTRIC 5KCP39HG7915, 5KCP39LGL786, 5KCP39FG9723, 5KCP39EG7884, 5KCP39CG7151, 5KCP39HG9433, 5KCP39KGA276, 5KCP39EG9443, 5KCP39GG7020, 5KCP39JGL115, 5KCP39HG9758, 5KCP39EG9743, 5KCP39EG3296, 3733, 5KCP39HGA275, 5KCP39KGA380
GENTEQ 3733
GLOBAL IND WBB465909
GRAINGER/DAYTON 4MB61
MARATHON 48A11T529
MARS 3733, 10734
PENTAIR 473074
ROTOM CF3733
SMART SE3733
SMITH FE1036SF
TRANE M0T-10152
UNIVERSAL U-676
WAGNER WG840729

Permanent Split Capacitor Condenser Fan 5.6" Diameter

Applications

Residential and commercial condensing unit fan motors to meet manufacturer’s requirements

Features

  • 140°F (60°C) Ambient Design
  • Bearings have All Angle Thrust System
  • Class B Insulation
  • Designed for use with 370V Capacitors
  • Extended Studs
  • 36" Leads
  • Hubless Lead End
  • Drain Holes Both Ends
  • Reversible Rotation
  • Automatic Reset Thermal Overload Protector
  • Continuous Duty
Electrical Data
Rated Motor Output Power
1/3 HP
.25 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
2 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
2.22
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
7.5
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
TEAO
Mounting
Band,Stud
Number of Speeds
1 Speed
Approximate Weight
14lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.1"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
60°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
