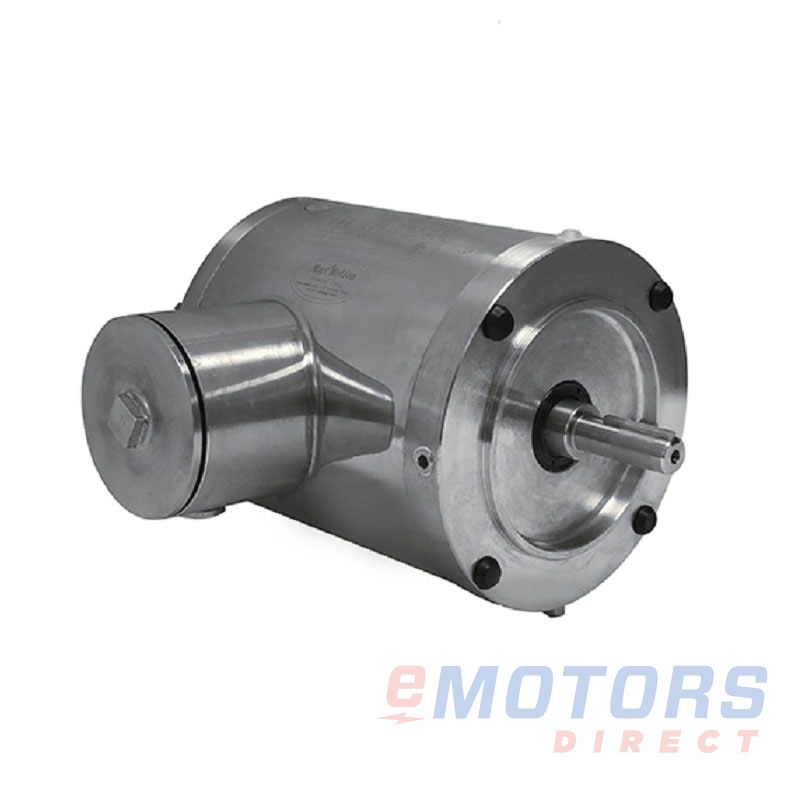

Max Motion MPS-346RB

Max Motion · Premium Design B Nema 12-12
3/4 HP 1155 56C TENV 575V Washdown
Catalog Number: MPS-346RB
HP
3/4
RPM
1200
Voltage
575V
Frame
56C
Phase
3
Enclosure
TENV
Material
Stainless Steel
Mounting
C-Face / Round Body

Product-line overview

Max Motion’s stainless steel washdown duty motors are ideal for food production or other applications where regular washing and the use of corrosive products occur. TEFC or TENV enclosed models are available with a range of HP, RPM, and Voltage ratings and frame size options. All models are 3-phase.

Availability: Factory Order

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Max Motion: Premium Design B Nema 12-12 (156)

MQS-124RB1/21725208-230V, 460V56C $565.54
MQS-134RB1/31725208-230V, 460V56C $565.54
MPS-134RB1/31725575V56C $565.54
MQS-134RBFC1/31725208-230V, 460V56C $595.25
MPS-134RBFC1/31725575V56C $595.25
MQS-122RB1/23460208-230V, 460V56C $607.12
MPS-122RB1/23460575V56C $607.12
MQS-124RBFC1/21725208-230V, 460V56C $636.79
MPS-124RBFC1/21725575V56C $636.79
MQS-344RB3/41725208-230V, 460V56C $654.61
MPS-344RB3/41725575V56C $654.61
MQS-342RB3/43460208-230V, 460V56C $654.61
MPS-342RB3/43460575V56C $654.61
MQS-344RBFC3/41725208-230V, 460V56C $666.48
MPS-344RBFC3/41725575V56C $666.48
MQS-126RB1/21155208-230V, 460V56C $724.43
MPS-126RB1/21155575V56C $724.43
MQSP-102RB13470208-230V, 460V56C $744.92
MPSP-102RB13470575V56C $744.92
MQS-346RB3/41155208-230V, 460V56C $762.20
MPS-346RB3/41155575V56C $762.20
MQSP-104RBNV11765208-230V, 460V56C $783.32
MPSP-104RBNV11765575V56C $783.32
MQSP-104RB11765208-230V, 460V56C $783.32
MPSP-104RB11765575V56C $783.32
MQSP-152RB1 1/23470208-230V, 460V56C $813.05
MQSP-154RB1 1/21750208-230V, 460V56C $826.94
MPSP-152RB1 1/23470575V56C $905.94
MQSP-102RBNV13470208-230V, 460V56C $905.94
MPSP-102RBNV13470575V56C $905.94
MQSP-204RB21760208-230V, 460V56C $908.01
MPSP-154RB1 1/21750575V56C $921.39
MQSP-152RBNV1 1/23470208-230V, 460V56C $937.93
MPSP-152RBNV1 1/23470575V56C $937.93
MQSP-154RBNV1 1/21750208-230V, 460V56C $1,011.42
MPSP-154RBNV1 1/21750575V56C $1,011.42
MPSP-204RB21760575V56C $1,011.45
MPSP-204TRB21740575V145TC $1,034.46
MQSP-106RB11165208-230V, 460V56C $1,115.09
MPSP-106RB11165575V56C $1,115.09
MQSP-304TRB-56C31760208-230V, 460V56C $1,896.88
MPSP-304TRB-56C31760575V56C $1,896.88
MQSP-204RBNV21760208-230V, 460V56C $1,896.88
MPSP-204RBNV21760575V56C $1,896.88
MQSP-156RB1 1/21150208-230V, 460V56C $2,050.82
MPSP-156RB1 1/21150575V56C $2,050.82
MQSP-2004TL201765208-230V, 460V256TC $9,038.71
MPSP-2004TL201765575V256TC $9,038.71
MQSP-2002TL203530208-230V, 460V256TC $9,038.71
MPSP-2002TL203530575V256TC $9,038.71

Feature

  • Inverter Duty Magnet Wire
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque
  • Meets or exceeds MG1 Part 31.4.4.2
  • Meets or exceeds MEPS (Minimum Efficieny Performance Standards) as described by US Department of Energy in docket 10CFR431 and Natural Resources Canada’s Amendment 14
  • NEMA Design B Torque characteristics
  • Class F Insulation, with B Temperature Rise
  • At 60Hz : 575v
  • IP66 Inversion Protection
  • Round Terminal Box with encapsulated lead wires
  • VPI with additional dip and Bake
  • Viton Seal installed on both shaft ends with stainless steel shaft slinger
  • Four condensation plugs on each end shield for mounting flexibility
  • Bonded Stainless Steel Washers
  • 304 Grade Stainless Steel Construction
  • 1.15 Service Factor
  • CSAus & CE Certified
  • Three Year Warranty
Electrical Data
Rated Motor Output Power
3/4 HP
.56 kW
Rated Motor Speed
1155 RPM
Rated Motor Voltage
575V
Rated Motor Current
1.04 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
81.7
Nominal Power Factor
66
Leads (Qty, Size)
3 @ 16AWG
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
56C
Enclosure
TENV
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
34lb
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
10.78"
NEMA Design
B
Degree of Protection (IP)
IP66
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6205
Shaft Diameter
0.625"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSAus & CE
Country of Origin
CHINA
Warranty
3-Year
