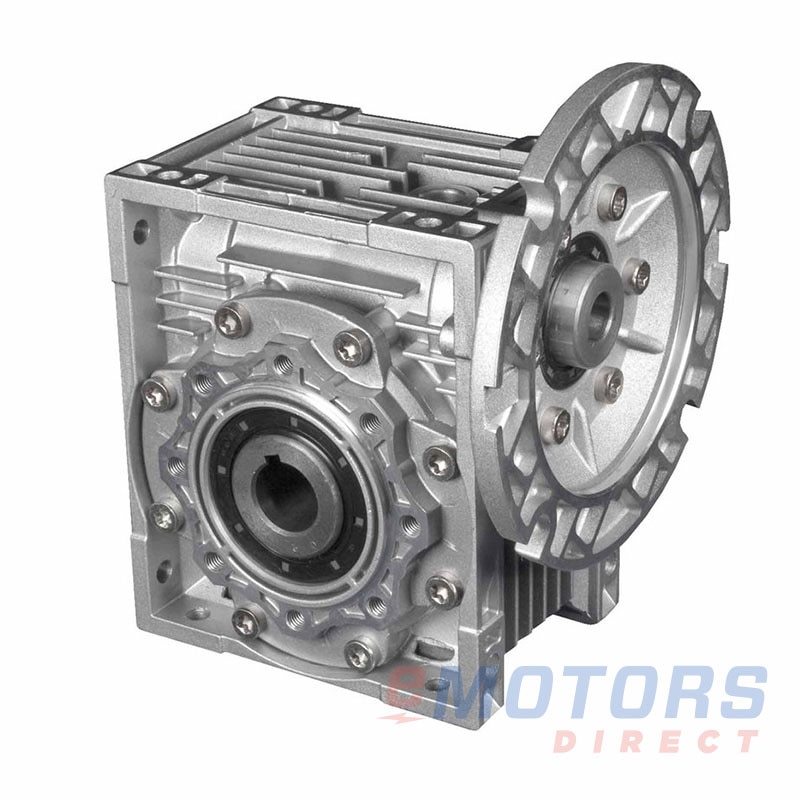

Max Motion MMR50-100-56C

Max Motion · Right Angle Gear Reducer (Aluminum)
100:1 0.28 MAX HP 56C INPUT HOLLOW MAXMOTION
Catalog Number: MMR50-100-56C
Ratio
100:1
Input Frame
56C
Max HP
0.28
Output Type
Hollow Bore
Output RPM
18
Max Output Torque
487 lb-in

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Max Motion: Right Angle Gear Reducer (Aluminum) (28)

MMR50-10-56C10:12.06Hollow Bore175637 lb-in $329.90
MMR50-100-56C100:10.28Hollow Bore18487 lb-in $330.85
MMR50-80-56C80:10.38Hollow Bore22575 lb-in $330.85
MMR50-60-56C60:10.47Hollow Bore29602 lb-in $330.85
MMR50-50-56C50:10.57Hollow Bore35648 lb-in $330.85
MMR50-40-56C40:10.7Hollow Bore44672 lb-in $330.85
MMR50-30-56C30:10.96Hollow Bore58743 lb-in $330.85
MMR50-20-56C20:11.14Hollow Bore88646 lb-in $330.85
MMR50-15-56C15:11.48Hollow Bore117655 lb-in $330.85
MMR50-7.5-56C7.5:12.64Hollow Bore233628 lb-in $330.85
MMR50-25-56C25:10.9Hollow Bore70619 lb-in $331.06
MMR50-5-56C5:13.43Hollow Bore350549 lb-in $347.40
MMR63-7.5-56C7.5:14.77Hollow Bore2331133 lb-in $432.89
MMR63-10-56C10:13.67Hollow Bore1751150 lb-in $432.89
MMR63-100-56C100:10.56Hollow Bore181044 lb-in $432.89
MMR63-80-56C80:10.66Hollow Bore221079 lb-in $432.89
MMR63-60-56C60:10.86Hollow Bore291150 lb-in $432.89
MMR63-50-56C50:11.01Hollow Bore351194 lb-in $432.89
MMR63-40-56C40:11.27Hollow Bore441283 lb-in $432.89
MMR63-30-56C30:11.77Hollow Bore581416 lb-in $432.89
MMR63-25-56C25:11.64Hollow Bore701150 lb-in $432.89
MMR63-20-56C20:12.05Hollow Bore881194 lb-in $432.89
MMR75-100-56C100:10.8Hollow Bore181593 lb-in $619.70
MMR75-80-56C80:10.97Hollow Bore221681 lb-in $619.70
MMR75-60-56C60:11.26Hollow Bore291770 lb-in $619.70
MMR75-50-56C50:11.5Hollow Bore351858 lb-in $619.70
MMR90-100-56C100:11.12Hollow Bore182389 lb-in $903.36
MMR90-80-56C80:11.39Hollow Bore222522 lb-in $903.36

Feature

  • Aluminum alloy Housing with heat sink design.
  • Two bearings on Input shaft.
  • Double-lip oil seals.
  • O-rings on input and output covers.
  • Hardened worm shaft.
  • Permanently sealed with synthetic lubrication.
Mechanical Data
Ratio
100:1
Input Type
56C
Input Frame
56C
Output Type
Hollow Bore
Output Size
1" Bore
Output RPM
18 RPM
Max HP
0.28HP
Max Output Torque
487 lb-in
Max Overhung Load
866 lbs
Type of Oil
Mobil Glygoyle 460 polyalkylene glycol (Mobil PAG 460)
Physical Data
Case Material
Aluminum
Case Size
50
Center Distance
50 mm
Weight
8lb
Performance Ratings
Service Factor 1
1.12 SF @ 1/4 HP
Service Factor 2
1.4 SF @ 1/5 HP
Service Factor 3
1.68 SF @ 1/6 HP
Additional Data
Country of Origin
CHINA
Warranty
1-Year
