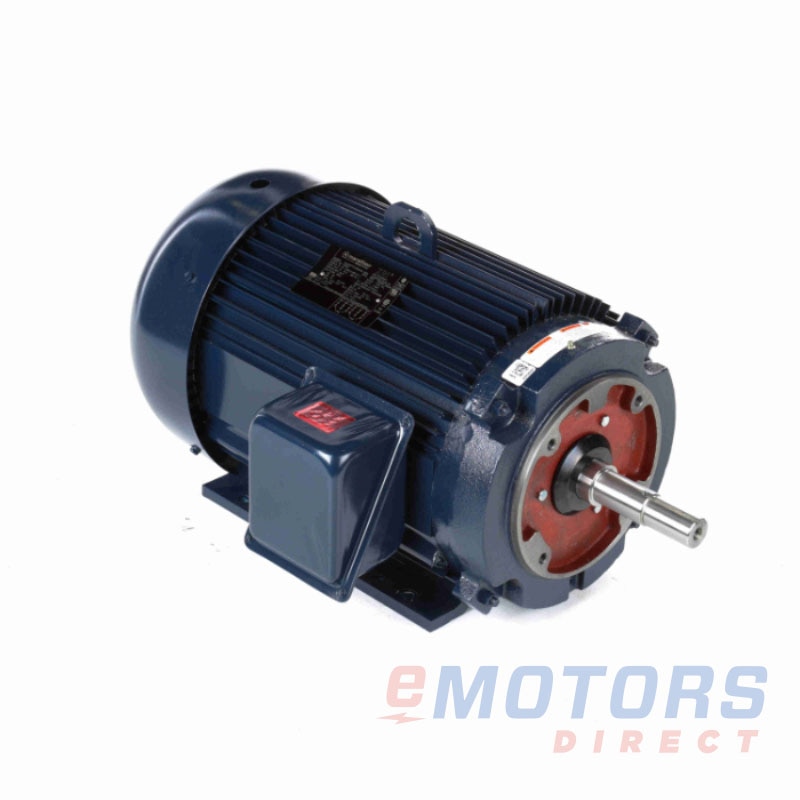

Marathon U348A

Marathon · Close-Coupled Pump
15 HP 1775 254JM TEFC 230V|460V Pump
Catalog Number: U348A
Model Number: 254TTFL16045
HP
15
RPM
1800
Voltage
230V,460V
Frame
254JM
Phase
3
Enclosure
TEFC
Material
Aluminum
Mounting
Rigid

Product-line overview

Marathon’s line of pump motors has models for all applications, from centrifugal or circular pump motors to close-coupled or vertical motors. Select your electric motor replacement from a range of ratings and features; frame size, mounting options, enclosure type, RPM, HP, voltage, and more.

Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Marathon: Close-Coupled Pump (210)

M316B53500208-230V, 460V182JMV $548.57
GT3515A7 1/23520575V213JP $1,033.27
GT3415A7 1/23520230V, 460V213JP $1,033.27
GT3511A31185575V213JP $1,036.26
GT3516A7 1/21768575V213JP $1,103.70
GT3416A7 1/21768230V, 460V213JP $1,103.70
GT3518A103518575V215JP $1,288.16
GT3514A51180575V215JP $1,288.16
GT3418A103518230V, 460V215JP $1,288.16
GT3519A101762575V215JP $1,303.67
GT3419A101762230V, 460V215JP $1,303.67
U210A151768230V, 460V254JPV $1,395.59
U344A153535230V, 460V254JM $1,538.42
U348A151775230V, 460V254JM $1,673.54
GT3521A153545575V254JP $1,775.83
GT3421A153545230V, 460V254JP $1,775.83
GT3517A7 1/21182575V254JP $1,784.19
GT3417A7 1/21182230V, 460V254JP $1,784.19
U354A201775230V, 460V256JM $1,833.62
GT3522A151772575V254JP $1,897.60
GT3422A151772230V, 460V254JP $1,897.60
U351A203537230V, 460V256JM $1,903.63
GT3525A201768575V256JP $2,079.66
GT3425A201768230V, 460V256JP $2,079.66
GT3524A203540575V256JP $2,158.46
GT3424A203540230V, 460V256JP $2,158.46
GT3520A101180575V256JP $2,219.35
GT3420A101180230V, 460V256JP $2,219.35
GT3527A253555575V284JP $2,631.22
GT3427A253555230V, 460V284JP $2,631.22
GT3528A251772575V284JP $2,715.38
GT3428A251772230V, 460V284JP $2,715.38
GT3523A151182575V284JP $2,840.73
GT3423A151182230V, 460V284JP $2,840.73
GT3531A301770575V286JP $2,980.42
GT3431A301770230V, 460V286JP $2,980.42
GT3530A303550575V286JP $3,299.77
GT3430A303550230V, 460V286JP $3,299.77
GT3526A201180575V286JP $3,586.88
GT3426A201180230V, 460V286JP $3,586.88
GT3534A401782575V324JP $3,871.62
GT3533A403565575V324JP $4,025.02
GT3433A403565230V, 460V324JP $4,025.02
GT3429A251184230V, 460V324JP $4,447.04
GT3537A501782575V326JP $4,737.73
GT3437A501782230V, 460V326JP $4,737.73
GT3532A301185575V326JP $4,781.92
GT3432A301185230V, 460V326JP $4,781.92
GT3536A503568575V326JP $4,815.34
GT3436A503568230V, 460V326JP $4,815.34

Feature

  • Meets or exceeds all USA mandated efficiencies
  • Division 2 / zone 2 class 1 (gases), groups A, B, C, D
  • NEMA JM pump shaft dimensions
  • Suitable for use on a VFD. 10:1 variable torque and 2:1 constant torque
  • Dual rated motors are nameplated 60/50 hertz, 190/380 volts at next lower HP
  • Ball bearings, mechanically locked on shaft end
  • Class F Insulation
  • UL recognized, CSA certified and CE mark
Electrical Data
Rated Motor Output Power
15 HP
11.25 kW
Rated Motor Speed
1775 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
37.5/18.8 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
92.4
Nominal Power Factor
81
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
254JM
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
251lb
Double Drilled
No
Frame Material
Aluminum
C-Dimension
25.52"
NEMA Design
B
Degree of Protection (IP)
IP43
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6208
NDE Bearing
6208
Shaft Diameter
1.25"
Shaft Length
5.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
USA
Warranty
3-Year
