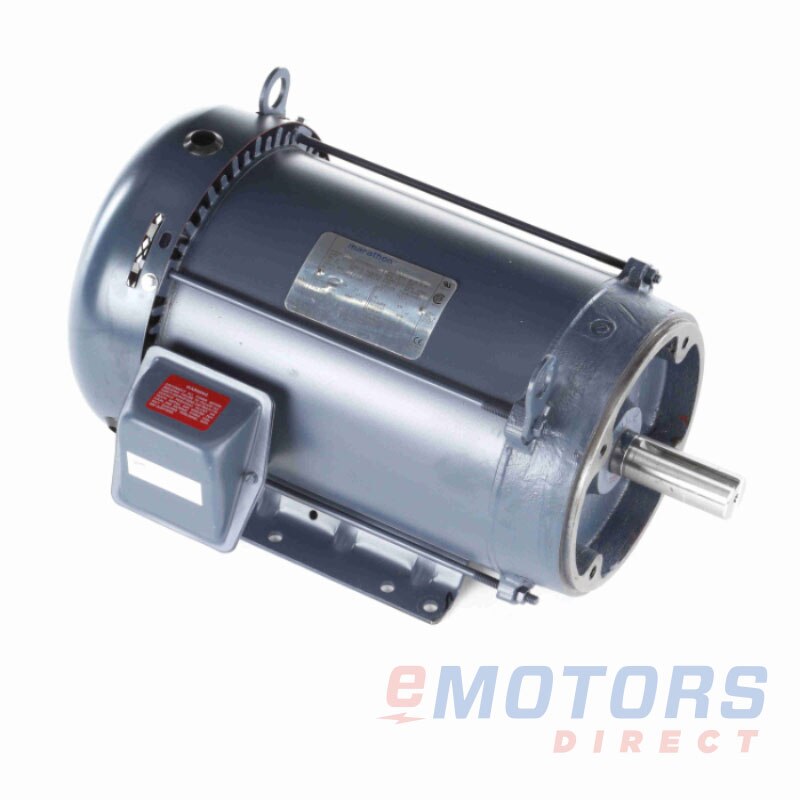

Marathon GT1419A

Marathon · Globetrotter
10 HP 1762 215TC TEFC 575V General Purpose
Catalog Number: GT1419A
Model Number: 215TTFBD6032
HP
10
RPM
1800
Voltage
575V
Frame
215TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

Marathon’s line of general purpose motors is designed to meet the demands of some of the toughest industries, aggregate, manufacturing, mining, and more. These electric motors meet or exceed NEMA Premium® efficiency standards. Select the HP, RPM, and voltage ratings to match your requirements.

Ships in 3 to 5 business days

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Marathon: Globetrotter (425)

GT191031762575V182TC $390.71
GT1210A31762230V, 460V182TC $399.14
GT1210A-P31762230V, 460V182TC $519.92
GT131927 1/23510230V, 460V184TC $530.06
GT1213A-P51765230V, 460V184TC $581.75
GT1216A-P7 1/21768230V, 460V213TC $778.87
GT13174153530230V, 460V215TC $819.41
GT12174153530230V, 460V215TC $861.47
GT1219A-P101762208-230V, 460V215TC $881.74
GT1218A-P103518230V, 460V215TC $914.17
GT1322151772230V, 460V254TC $1,084.52
GT1822151772200V254T $1,121.93
GT1325201768230V, 460V256TC $1,295.23
GT1022A-P151772230V, 460V254T $1,298.79
GT1825201768200V, 400V256T $1,333.75
GT1025A-P201768230V, 460V256T $1,517.20
GT1225A-P201768230V, 460V256TC $1,561.79
GT1223151182230V, 460V284TC $1,719.17
GT1028A-P251772230V, 460V284T $1,862.30
GT12127253555230V, 460V284TC $1,880.02
GT1031A-P301770230V, 460V286T $2,057.39
GT1228A-P251800230V, 460V284TC $2,137.97
GT1231A-P301770230V, 460V286TC $2,225.62
GT1011310880230V, 460V284T $2,500.80
GT1334401782230V, 460V324TC $2,506.42
GT1259401782230V, 460V324TSC $2,610.75
GT1034A-P401782230V, 460V324T $2,651.80
GT1234A-P401782230V, 460V324TC $2,866.67
GT1260501782230V, 460V326TSC $3,170.20
GT1037A-P501782230V, 460V326T $3,180.33
GT1237A-P501782230V, 460V326TC $3,426.12
GT1011720885230V, 460V324T $3,848.74
GT1235401188230V, 460V364TC $4,599.73
GT1238501188230V, 460V365TC $5,440.42
GT1243A-P751780230V, 460V365TC $5,859.50
GT12631001785230V, 460V405TSC $7,394.94
GT12641251790460V444TSC $9,684.43
GT101351501190460V445T $12,963.43
GT12692001790460V445TSC $13,672.69
GT1056A-P2001190460V449T $16,331.54
GT10702501790460V449T $16,799.66
GT10692501790460V449T $16,799.66
GT10733001790460V449T $19,135.67
GT10712501189460V449T $19,991.63
GT1073-P3001790460V449T $20,262.13
GT10793501789460V449T $22,962.39
GT10753001189460V449T $23,484.51
GT10854001788460V449T $27,514.18
GT10844001788460V449T $27,545.63
GT10773503580460V449TS $27,545.63

Description

The Globetrotter®motors are built tough to go the distance in many commercial and industrial applications around the world. The motors come in a variety of configurations and enclosures where variable speed, premium efficiency and reliability are required. The Globetrotter®motors were designed for applications such as cooling tower, HVAC, conveyors, packaging equipment, pumping, extruders, gear reducers, and machine tools.

Feature

  • Meets or exceeds NEMA Premium® efficiencies
  • NEMA Premium models are in compliance with EISA 2007
  • Inverter duty 10:1 variable torque and 10:1 constant torque, 1.0 SF
  • Division 2 / Zone 2 Class 1 (gases), Groups A, B, C, D
  • 1.15 Service factor on sinewave, 1.0 service factor on IGBT power
  • Meets temperature code T2B
  • Class F Insulation
  • Standard assembly F1, reversible to F2 assembly
  • UL recognized, CSA certified, CE mark
Electrical Data
Rated Motor Output Power
10 HP
7.5 kW
Rated Motor Speed
1762 RPM
Rated Motor Voltage
575V
Rated Motor Current
10 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
92.1
Nominal Power Factor
81.3
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
215TC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
186lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
20.7"
NEMA Design
B
Degree of Protection (IP)
IP43
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6206
NDE Bearing
6206
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
MEXICO
Warranty
3-Year
