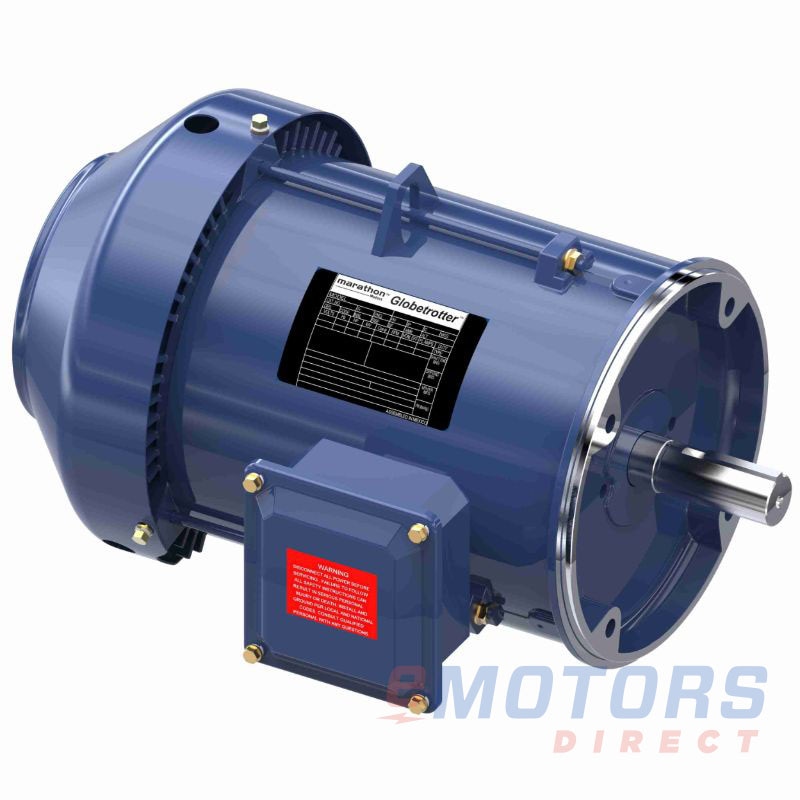

Marathon GT13192

Marathon · Globetrotter
7.5 HP 3600 184TC TEFC 230V/460V General Purpose
Catalog Number: GT13192
Model Number: 184TTFBD6005
HP
7 1/2
RPM
3600
Voltage
230V,460V
Frame
184TC
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Round Body

Product-line overview

Marathon’s line of general purpose motors is designed to meet the demands of some of the toughest industries, aggregate, manufacturing, mining, and more. These electric motors meet or exceed NEMA Premium® efficiency standards. Select the HP, RPM, and voltage ratings to match your requirements.

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Marathon: Globetrotter (425)

GT191031762575V182TC $390.71
GT1210A31762230V, 460V182TC $404.17
GT1210A-P31762230V, 460V182TC $519.92
GT131927 1/23510230V, 460V184TC $530.06
GT1213A-P51765230V, 460V184TC $581.75
GT1216A-P7 1/21768230V, 460V213TC $778.87
GT13174153530230V, 460V215TC $819.41
GT12174153530230V, 460V215TC $861.47
GT1219A-P101762208-230V, 460V215TC $881.74
GT1218A-P103518230V, 460V215TC $914.17
GT1322151772230V, 460V254TC $1,084.52
GT1822151772200V254T $1,121.93
GT1325201768230V, 460V256TC $1,295.23
GT1022A-P151772230V, 460V254T $1,298.79
GT1825201768200V, 400V256T $1,333.75
GT1025A-P201768230V, 460V256T $1,517.20
GT1225A-P201768230V, 460V256TC $1,561.79
GT1223151182230V, 460V284TC $1,719.17
GT1028A-P251772230V, 460V284T $1,862.30
GT12127253555230V, 460V284TC $1,880.02
GT1031A-P301770230V, 460V286T $2,057.39
GT1228A-P251800230V, 460V284TC $2,137.97
GT1231A-P301770230V, 460V286TC $2,225.62
GT1011310880230V, 460V284T $2,500.80
GT1334401782230V, 460V324TC $2,506.42
GT1259401782230V, 460V324TSC $2,610.75
GT1034A-P401782230V, 460V324T $2,651.80
GT1234A-P401782230V, 460V324TC $2,866.67
GT1260501782230V, 460V326TSC $3,170.20
GT1037A-P501782230V, 460V326T $3,180.33
GT1237A-P501782230V, 460V326TC $3,426.12
GT1011720885230V, 460V324T $3,848.74
GT1235401188230V, 460V364TC $4,599.73
GT1238501188230V, 460V365TC $5,440.42
GT1243A-P751780230V, 460V365TC $5,859.50
GT12631001785230V, 460V405TSC $7,394.94
GT12641251790460V444TSC $9,684.43
GT101351501190460V445T $12,963.43
GT12692001790460V445TSC $13,672.69
GT1056A-P2001190460V449T $16,331.54
GT10702501790460V449T $16,799.66
GT10692501790460V449T $16,799.66
GT10733001790460V449T $19,135.67
GT10712501189460V449T $19,991.63
GT1073-P3001790460V449T $20,262.13
GT10793501789460V449T $22,962.39
GT10753001189460V449T $23,484.51
GT10854001788460V449T $27,514.18
GT10844001788460V449T $27,545.63
GT10773503580460V449TS $27,545.63

Description

The Globetrotter®motors are built tough to go the distance in many commercial and industrial applications around the world. The motors come in a variety of configurations and enclosures where variable speed, premium efficiency and reliability are required. The Globetrotter®motors were designed for applications such as cooling tower, HVAC, conveyors, packaging equipment, pumping, extruders, gear reducers, and machine tools.

Feature

  • Meets or exceeds NEMA Premium® efficiencies
  • NEMA Premium models are in compliance with EISA 2007
  • Inverter duty 10:1 variable torque and 10:1 constant torque, 1.0 SF
  • Division 2 / Zone 2 Class 1 (gases), Groups A, B, C, D
  • 1.15 Service factor on sinewave, 1.0 service factor on IGBT power
  • Meets temperature code T2B
  • Class F Insulation
  • Standard assembly F1, reversible to F2 assembly
  • UL recognized, CSA certified, CE mark
Electrical Data
Rated Motor Output Power
7 1/2 HP
5.625 kW
Rated Motor Speed
3510 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
17.6/8.8 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
89.5
Nominal Power Factor
89
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:01
6
Constant Torque
2:01
30
General Data
Frame
184TC
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
1 Speed
Approximate Weight
120lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
16.85"
NEMA Design
B
Degree of Protection (IP)
IP43
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1/F2
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
1.125"
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
MEXICO
Warranty
3-Year
