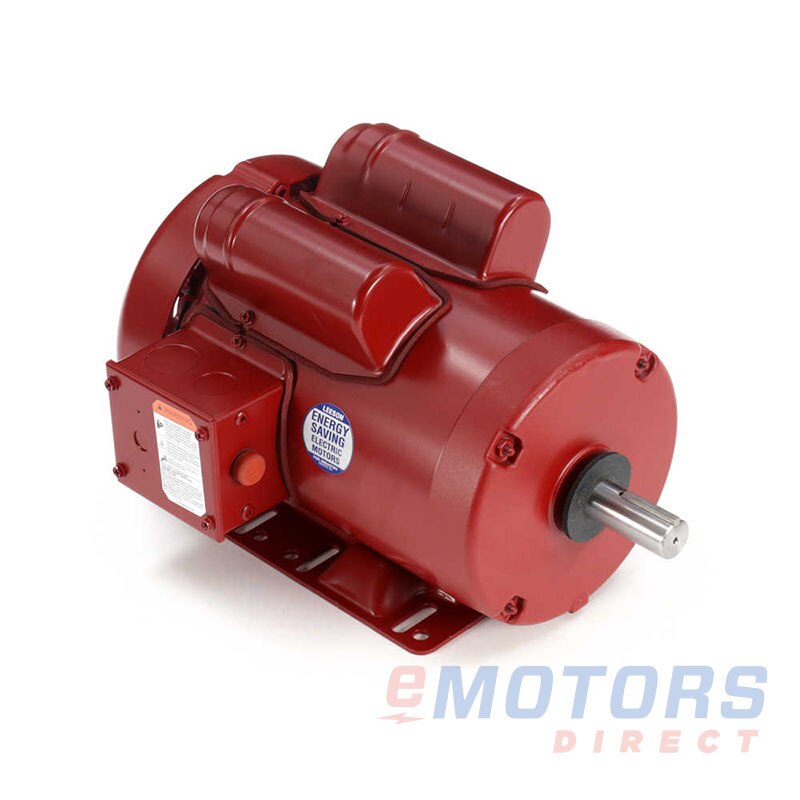

Leeson 113938.00

Leeson · Hi-Torque and Extra Hi-Torque Motors
1 1/2 HP 1725 56HZ TEFC 115V|230V Farm Duty
Catalog Number: 113938.00
Model Number: M6K17FB39F
HP
1 1/2
RPM
1800
Voltage
115V,230V
Frame
56HZ
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

Built for the severe duty applications of the agricultural industry, Leeson’s farm duty motors are designed to handle harsh environments and high starting loads. Find the correct motor for your grain dryer, auger, barn fan and more by matching essential ratings like HP, RPM, phase, and voltage.

NO STOCKING INFORMATION AVAILABLE

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

Our complete line of single-phase and three phase Farm Duty/Agricultural Duty series of motors are designed and built for the tough applications found in the agricultural industry.

Feature

  • 1/3 to 10 HP, TEFC, High Torque (HT): Feeders, conveyors, fans, compressors, spray washers, grinders, elevators, pumps and other demanding applications that require high starting torque.
  • 2 to 10 HP, TEFC, Extra High Torque (EHT): Silo unloaders, barn cleaners, bunk feeders, conveyors and other machinery requiring extra high starting torque. Motors have 300% and greater LRT.
  • Manual overload protector
Electrical Data
Rated Motor Output Power
1 1/2 HP
1.12 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
17.2/8.6 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
8.8
Service Factor
1.15
KVA Code
J
Nominal Efficiency
79
Nominal Power Factor
73
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56HZ
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
42lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
14.25"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
F
Rotation
CWNDE
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
