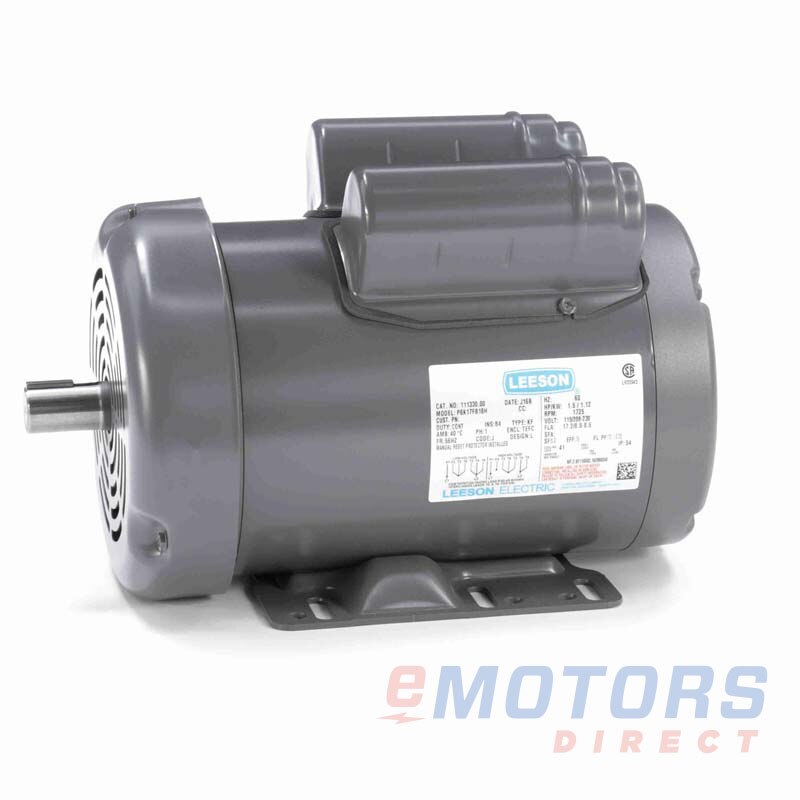

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson 111330.00

Leeson
1 1/2 HP 1800 56HZ TEFC 115V|230V Farm Duty
Catalog Number: 111330.00
Part Number: 111330.00
Model Number: M6K17FB18J
HP
1 1/2
RPM
1800
Voltage
115V,208-230V
Frame
56HZ
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

NO STOCKING INFORMATION AVAILABLE

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
1 1/2 HP
1.1 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
17.2/8.8-8.6 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
J
Nominal Efficiency
79
Nominal Power Factor
73
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56HZ
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
45lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.39"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
