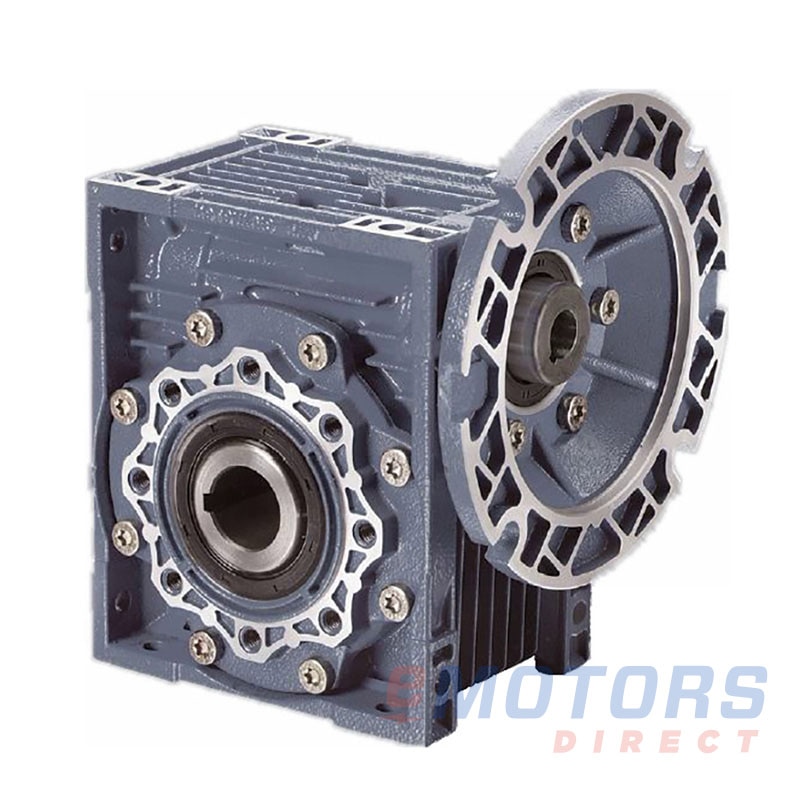

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Kuma JNWM-130B-180TC-80

Kuma · Right Angle Gear Reducers
80:1 3.55 MAX HP 180TC INPUT HOLLOW KUMA
Catalog Number: JNWM-130B-180TC-80
Alternative Number: 4175087, NWM-130B-80-180TC, NMRV130-0800-180TC, NMRV130-80-180TC
Ratio
80:1
Input Frame
180TC
Max HP
3.55
Output Type
Hollow Bore
Output RPM
22
Max Output Torque
7061 lb-in

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Kuma: Right Angle Gear Reducers (70)

JNWM-63B-56C-100100:10.53Hollow Bore18992 lb-in $416.30
JNWM-63B-56C-8080:10.61Hollow Bore221025 lb-in $416.30
JNWM-63B-56C-6060:10.8Hollow Bore291093 lb-in $416.30
JNWM-63B-56C-5050:10.94Hollow Bore351135 lb-in $416.30
JNWM-63B-56C-4040:11.19Hollow Bore441219 lb-in $416.30
JNWM-63B-56C-3030:11.66Hollow Bore581345 lb-in $416.30
JNWM-63B-56C-2525:11.54Hollow Bore701093 lb-in $416.30
JNWM-63B-56C-2020:11.92Hollow Bore881135 lb-in $416.30
JNWM-63B-56C-1515:12.59Hollow Bore1171177 lb-in $416.30
JNWM-63B-140TC-4040:11.19Hollow Bore441219 lb-in $416.30
JNWM-63B-140TC-3030:11.66Hollow Bore581345 lb-in $416.30
JNWM-63B-140TC-2525:11.54Hollow Bore701093 lb-in $416.30
JNWM-63B-140TC-2020:11.92Hollow Bore881135 lb-in $416.30
JNWM-63B-140TC-1515:12.59Hollow Bore1171177 lb-in $416.30
JNWM-63B-140TC-1010:13.49Hollow Bore1751093 lb-in $416.30
JNWM-75B-56C-100100:10.75Hollow Bore181513 lb-in $536.10
JNWM-75B-56C-8080:10.91Hollow Bore221597 lb-in $536.10
JNWM-75B-56C-6060:11.18Hollow Bore291681 lb-in $536.10
JNWM-75B-56C-5050:11.4Hollow Bore351765 lb-in $536.10
JNWM-75B-56C-4040:11.76Hollow Bore441849 lb-in $536.10
JNWM-75B-140TC-5050:11.4Hollow Bore351765 lb-in $536.10
JNWM-75B-140TC-4040:11.76Hollow Bore441849 lb-in $536.10
JNWM-75B-140TC-3030:12.32Hollow Bore581933 lb-in $536.10
JNWM-75B-140TC-2525:12.31Hollow Bore701681 lb-in $536.10
JNWM-75B-140TC-2020:12.95Hollow Bore881765 lb-in $536.10
JNWM-75B-180TC-1515:13.62Hollow Bore1171681 lb-in $536.10
JNWM-75B-180TC-1010:15.17Hollow Bore1751639 lb-in $536.10
JNWM-75B-180TC-7.57.5:16.47Hollow Bore2331555 lb-in $536.10
JNWM-90B-56C-100100:11.05Hollow Bore182270 lb-in $818.86
JNWM-90B-56C-8080:11.3Hollow Bore222396 lb-in $818.86
JNWM-90B-140TC-6060:11.96Hollow Bore292959 lb-in $818.86
JNWM-90B-140TC-5050:12.39Hollow Bore353144 lb-in $818.86
JNWM-90B-140TC-4040:13.04Hollow Bore443329 lb-in $818.86
JNWM-90B-180TC-3030:14.26Hollow Bore583631 lb-in $818.86
JNWM-90B-180TC-2525:14.21Hollow Bore703144 lb-in $818.86
JNWM-90B-180TC-2020:15.37Hollow Bore883287 lb-in $818.86
JNWM-90B-180TC-1515:17.08Hollow Bore1173329 lb-in $818.86
JNWM-90B-180TC-1010:18.94Hollow Bore1752866 lb-in $818.86
JNWM-110B-140TC-100100:11.76Hollow Bore184060 lb-in $1,337.25
JNWM-110B-140TC-8080:12.21Hollow Bore224329 lb-in $1,337.25
JNWM-110B-140TC-6060:13.26Hollow Bore295178 lb-in $1,337.25
JNWM-110B-180TC-5050:13.58Hollow Bore355548 lb-in $1,337.25
JNWM-110B-180TC-4040:15.19Hollow Bore445901 lb-in $1,337.25
JNWM-110B-180TC-3030:17.05Hollow Bore586094 lb-in $1,337.25
JNWM-110B-180TC-2525:17.46Hollow Bore705707 lb-in $1,337.25
JNWM-130B-140TC-100100:12.66Hollow Bore186220 lb-in $1,802.65
JNWM-130B-180TC-8080:13.55Hollow Bore227061 lb-in $1,802.65
JNWM-130B-180TC-6060:14.8Hollow Bore297565 lb-in $1,802.65
JNWM-130B-180TC-5050:16.02Hollow Bore358238 lb-in $1,802.65
JNWM-130B-180TC-4040:17.76Hollow Bore448826 lb-in $1,802.65

Feature

  • Aluminum alloy housing with patented heat sink design provides greater thermal capacity
  • Two bearings along the input shaft prevent leaks and contribute to flexibility in mounting.
  • Double-lip oil seals aid the reducer’s thermal capacity and extended the reducer’s oil life
  • Use of O-rings on the input/output cover prevents leaks more effectively than a paper gasket
  • Hardened worm shaft gives increased durability versus forged worm shafts
Mechanical Data
Ratio
80:1
Input Type
180TC
Input Frame
180TC
Output Type
Hollow Bore
Output Size
1.75" Bore
Output RPM
22 RPM
Max HP
3.55HP
Max Output Torque
7061 lb-in
Max Overhung Load
2339 lbs
Type of Oil
Shell Omala 460 or 220
Physical Data
Case Material
Cast Iron
Case Size
130B
Center Distance
130 mm
Weight
105lb
Performance Ratings
Service Factor 1
1.18 SF @ 3 HP
Service Factor 2
-
Service Factor 3
-
Additional Data
Country of Origin
CHINA
Warranty
1-Year
  • BrochureRegister or log in to download
  • Warranty PolicyRegister or log in to download
  • ManualRegister or log in to download

Downloads unlock once you're signed in.

Product Line Review

Reviews for this product are combined with others in the same product line, as they share the same design but differ in specifications like HP or RPM.

5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0

There are no reviews for this product yet.

Be the first to write a review

About Kuma

Kuma Worm Gear Reducers are manufactured under the NIDEC-SHIMPO group of companies, a company at the forefront of gearing technology development. Their products are designed and manufactured for OEM customers.

Due to their durability, the Kuma right-angle gearboxes are a perfect fit for heavy industrial applications and extreme environments. They're manufactured and inspected with the most modern equipment and procedures.
