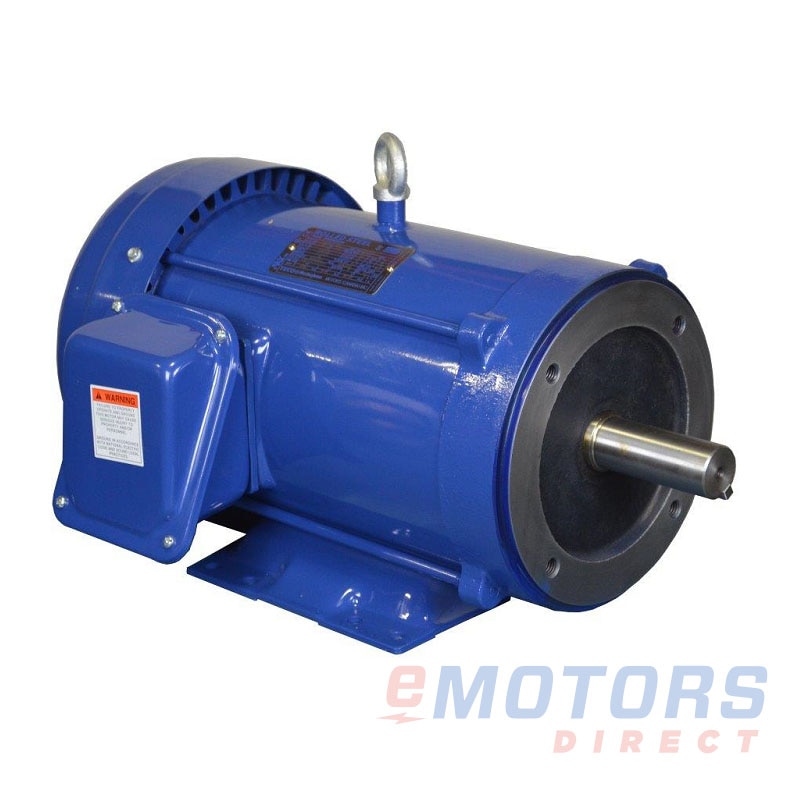

TECO-Westinghouse RF00125-56-C

TECO Westinghouse · Rolled Steel TEFC Premium
1 HP 3600 56C TEFC 575V General Purpose W/C-Flange
Catalog Number: RF00125-56-C
HP
1
RPM
3600
Voltage
575V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid

Product-line overview

The Rolled Steel TEFC is a durable, lightweight, feature-packed machine designed to tackle all your commercial duty requirements. From Process and Manufacturing to HVAC and Compressors this NEMA premium efficient inverter duty motor has you covered.

Final Sale Product

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

TECO Westinghouse: Rolled Steel TEFC Premium (156)

RF0/22-C1/43600230V, 460V56C $321.86
RF0/24-C1/41800230V, 460V56C $325.46
RF0/32-C1/33600230V, 460V56C $330.84
RF0/34-C1/31800230V, 460V56C $336.22
RF0/52-C1/23600230V, 460V56C $343.40
RF0/54-C1/21800230V, 460V56C $349.69
RF0/72-C3/43600230V, 460V56C $353.27
RF0/26-C1/41200230V, 460V56C $353.27
RF0/74-C3/41800230V, 460V56C $355.96
RF00125-56-C13600575V56C $368.52
RF0012-56-C13600230V, 460V56C $368.52
RF0/36-C1/31200230V, 460V56C $370.32
RF0/56-C1/21200230V, 460V56C $408.01
RF00145-56-C11800575V56C $410.70
RF0014-56-C11800230V, 460V56C $410.70
RF1/525-56-C1 1/23600575V56C $442.13
RF1/52-56-C1 1/23600230V, 460V56C $442.13
RF00225-56-C23600575V56C $469.95
RF0022-56-C23600230V, 460V56C $469.95
RF0/76-C3/41200230V, 460V56C $471.75
RF0012-C13600230V, 460V143TC $490.95
RF0014-C11800230V, 460V143TC $499.92
RF1/545-56-C1 1/21800575V56C $500.46
RF1/54-56-C1 1/21800230V, 460V56C $500.46
RF1/54-C1 1/21800230V, 460V145TC $504.42
RF1/52-C1 1/23600230V, 460V143TC $511.59
RF00325-56-C33600575V56C $512.13
RF0032-56-C33600230V, 460V56C $512.13
RF00165-56-C11200575V56C $516.60
RF0016-56-C11200230V, 460V56C $516.60
RF00245-56-C21800575V56C $528.28
RF0024-56-C21800230V, 460V56C $528.28
RF0024-C21800230V, 460V145TC $538.52
RF0022-C23600230V, 460V145TC $547.48
RF0016-C11200230V, 460V145TC $571.70
RF1/56-C1 1/21200230V, 460V182TC $628.69
RF1/565-C1 1/21200575V182TC $628.69
RF0034-C31800230V, 460V182TC $637.67
RF0032-C33600230V, 460V182TC $637.67
RF0026-C21200230V, 460V184TC $687.02
RF0054-C51800230V, 460V184TC $699.58
RF0052-C53600230V, 460V184TC $722.01
RF7/52-C7 1/23600230V, 460V213TC $989.99
RF7/525-C7 1/23600575V213TC $989.99
RF7/54-C7 1/21800230V, 460V213TC $990.89
RF7/545-C7 1/21800575V213TC $990.89
RF0036-C31200230V, 460V213TC $995.37
RF0102-C103600230V, 460V215TC $1,110.23
RF0104-C101800230V, 460V215TC $1,123.68
RF0056-C51200230V, 460V215TC $1,127.28

Description

The Rolled Steel TEFC is a durable, lightweight, feature-packed machine designed to tackle all your commercial duty requirements. From Process and Manufacturing to HVAC and Compressors this NEMA premium efficient inverter duty motor has you covered.

Feature

  • Available from 1/4-10HP; 2, 4 & 6 Pole
  • 56/56C Frame Available 1/4-3HP
  • NEMA Premium Efficiency
  • Rolled Steel Frame with Cast-Iron End Brackets
  • Inverter Duty Speed Range 10:1 CT and 20:1 VT
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
575V
Rated Motor Current
1.2 AMP
Phase
3
Poles
2
Locked Rotor Current
8.8 AMP
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
77
Nominal Power Factor
79.5
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
Wye
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
1 Speed
Approximate Weight
40lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
12.86"
NEMA Design
B
Degree of Protection (IP)
IP44
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6204ZZ
NDE Bearing
6203ZZ
Shaft Diameter
-
Shaft Length
-
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
CHINA
Warranty
3-Year
