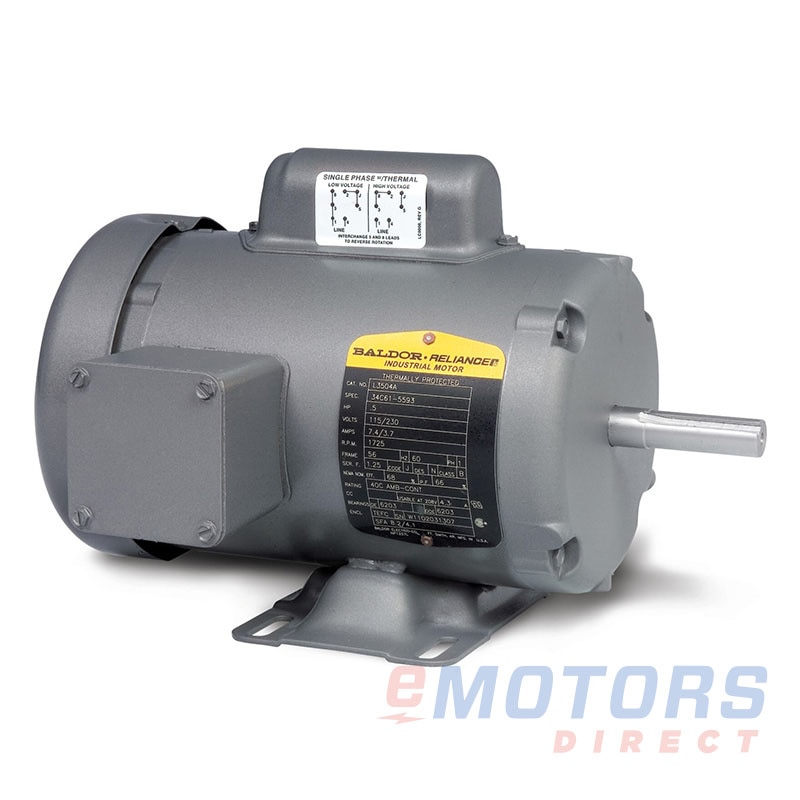

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor L3510A-D

Baldor · General purpose, single phase, TEFC, foot mounted
1 HP 1800 56HD TEFC 115V|208-230V General Purpose
Catalog Number: L3510A-D
HP
1
RPM
1800
Voltage
115V,208-230V
Frame
56HD
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
D-Flange / Rigid

Product-line overview

The Baldor general purpose, single-phase, TEFC, foot-mounted motor is engineered for reliability and versatility across a wide range of industrial applications. It features a low-noise, vibration-dampening base that ensures quiet operation, while the dynamically balanced rotor enhances performance and extends bearing life. A superior switch design delivers optimized torque profiles, contributing to smoother startups and efficient operation. Built with heavy-gauge steel, this motor offers exceptional durability and strength. Ideal for use in fans, air handling systems, conveyors, pumps, material handling equipment, and machine tools, it’s a dependable choice for demanding environments.
Final Sale Product

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Baldor: General purpose, single phase, TEFC, foot mounted (193)

L3405-C1/33600115V, 208-230V48C $428.35
L3400-C1/61800115V, 208-230V48C $447.98
L3403-C1/41800115V, 208-230V48C $456.02
L3408-C1/23600115V, 208-230V48C $472.10
L3406-C1/31800115V, 208-230V48C $477.20
L3403M-C1/41800115V, 208-230V48C $504.59
L3409-C1/21800115V, 208-230V48C $515.33
L3406M-C1/31800115V, 208-230V48C $530.27
EL3403-C1/41800115V, 230V48C $534.59
L3401-C1/61200115V, 208-230V48C $585.02
L3409M-C1/21800115V, 208-230V48C $593.19
L3404-C1/41200115V, 208-230V48C $609.01
L3509-C13600115V, 208-230V56HC $653.99
L3407-C1/31200115V, 208-230V48C $663.96
L3509M-C13600115V, 230V56HC $720.07
L3510-C11800115V, 208-230V56HC $729.17
L3514-C1 1/21800115V, 208-230V56HC $809.18
L3513-C1 1/23600115V, 208-230V56HC $811.85
L3510M-C11800115V, 208-230V56HC $841.80
L3510A-C11800115V, 208-230V56HC $862.70
L3509-D13600115V, 208-230V56HD $882.02
L3513M-C1 1/23600115V, 230V56HC $888.66
L3514M-C1 1/21800115V, 208-230V56HC $922.78
EL3510-C11800115V, 208-230V56HC $942.36
L3509M-D13600115V, 230V56HD $950.86
L3510-D11800115V, 208-230V56HD $957.20
L3505-C1/21200115V, 208-230V56HC $958.42
L3515-C23600115V, 208-230V56HC $966.52
L3514A-C1 1/21800115V, 230V56HC $984.19
L3515M-C23600115V, 230V56HC $1,003.24
L3514-D1 1/21800115V, 208-230V56HD $1,037.21
L3513-D1 1/23600115V, 208-230V56HD $1,042.16
EL3514-C1 1/21800115V, 230V56HC $1,055.94
L3510M-D11800115V, 208-230V56HD $1,072.59
L3508-C3/41200115V, 208-230V56HC $1,090.71
L3510A-D11800115V, 208-230V56HD $1,092.97
L3513M-D1 1/23600115V, 230V56HD $1,116.69
L3514M-D1 1/21800115V, 208-230V56HD $1,153.57
EL3510-D11800115V, 208-230V56HD $1,170.39
L3505-D1/21200115V, 208-230V56HD $1,186.06
L3515-D23600115V, 208-230V56HD $1,194.54
L3514A-D1 1/21800115V, 230V56HD $1,214.98
L3516TM-C21800208-230V56HCZ $1,223.50
L3515M-D23600115V, 230V56HD $1,231.56
EL3514-D1 1/21800115V, 230V56HD $1,286.72
L3508-D3/41200115V, 208-230V56HD $1,321.50
L3516TM-D21800208-230V56HDZ $1,451.82
L3609T-D31800115V, 208-230V184TD $1,528.28
L3609TM-D31800115V, 230V184TD $1,606.79
L3613T-D1 1/21200115V, 208-230V184TD $2,086.04

General purpose, single phase, TEFC, foot mounted

Features

  • Quiet operation with vibration-dampening base
  • Rotor is dynamically balanced to extend bearing lifespan
  • Advanced switch design ensures efficient torque performance
  • Durable construction using heavy-duty steel

Applications

  • Ventilation and fan systems
  • Air movement and handling equipment
  • Conveyor systems
  • Pumping solutions
  • Material transport mechanisms
  • Industrial machinery and tools
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
13.0/6.5 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
67
Nominal Power Factor
73
Leads (Qty, Size)
3
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56HD
Enclosure
TEFC
Mounting
D-Flange / Rigid
Number of Speeds
-
Approximate Weight
48lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
12.91"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205ZZ
NDE Bearing
6203ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
USA
Warranty
-
