KB Electronics KBWT-110

KB Electronics · KBWT - DC Drive

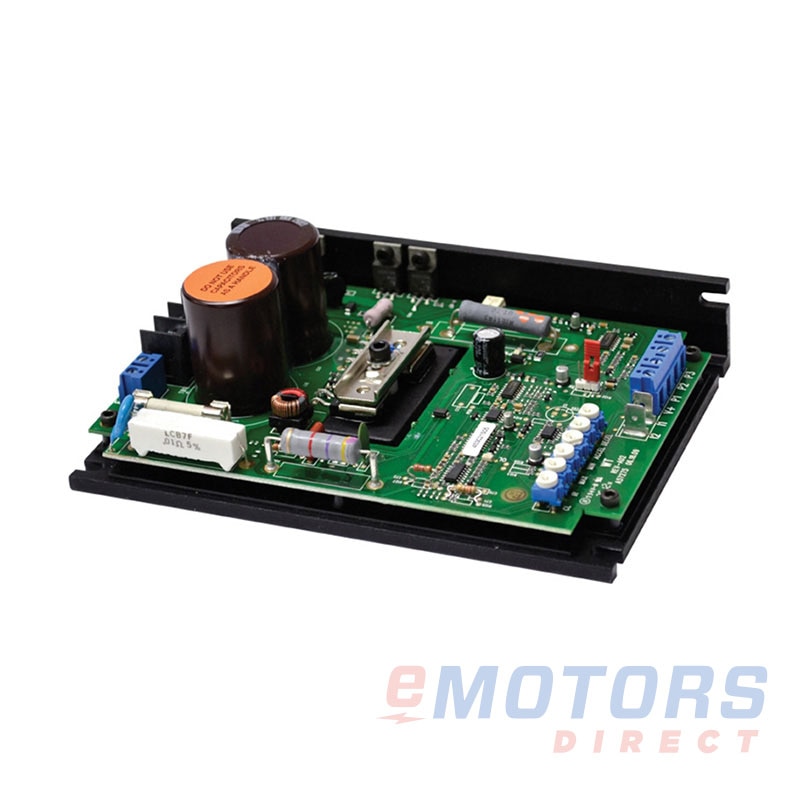

KBWT PWM Drive - Chassis 1-1/5 HP 130V (No.8603)
Catalog Number: KBWT-110
Part Number: 8603
HP
1 1/5
Input Voltage
115V
Output Voltage
130V, 90V
Input Phase
1
Enclosure
Chassis

Product-line overview

Our selection of KB Electronics DC drives offers a wide variety of drives for DC motor variable speed control. Select a drive rated for fractional HP up to 5 HP rated motors and a large selection of input and output voltage ratings. They feature enclosures from chassis to NEMA 1 and NEMA 4X.

This product requires a resistor and fuse. Please include the HP and voltage of the motor that the drive will use with. This will be included with your drive.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

KB Electronics: KBWT - DC Drive (1)

KBWT-1101 1/5115V 90V, 130V 1Chassis $234.97

Description

The KBWT series Pulse-Width Modulated (PWM) DC Drives are rated for 1/2 to 2.2 horsepower. This chassis drive series is designed for high current applications. Several models are offered, which provide the user a choice of input voltage and output current. An important feature of these chassis drives is its active bridge circuitry, which limits inrush current during AC line start-up and prevents control runaway due to a shorted output transistor. A 5k ohm potentiometer is included. An optional Potentiometer Safety Circuit requires the pot to be at zero for start up

Electrical Data
HP CT Rating
1 1/5 HP
HP VT Rating
-
Input
Output
Voltage
115V
130V,90V
Max CT Current
15
8.5
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
3 lb
Height
7"
Width
6.75"
Depth
3.25"
Enclosure
Chassis
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
