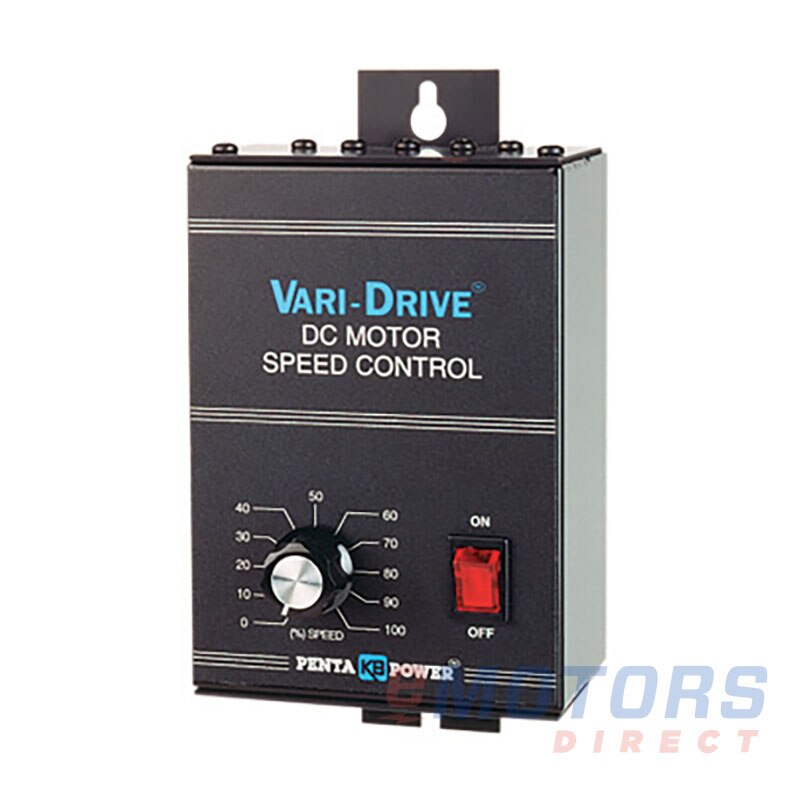

KB Electronics KBWM-120

KB Electronics · KBWM - DC Drive
KBWM SCR Drive - NEMA 1 1/3 HP 90V (No.9380)
Catalog Number: KBWM-120
Part Number: 9380
HP
1/3
Input Voltage
115V
Output Voltage
90V
Input Phase
1
Enclosure
NEMA 1

Product-line overview

Our selection of KB Electronics DC drives offers a wide variety of drives for DC motor variable speed control. Select a drive rated for fractional HP up to 5 HP rated motors and a large selection of input and output voltage ratings. They feature enclosures from chassis to NEMA 1 and NEMA 4X.

This product requires a resistor and fuse. Please include the HP and voltage of the motor that the drive will use with. This will be included with your drive.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

KB Electronics: KBWM - DC Drive (2)

KBWM-1201/3115V 90V 1NEMA 1 $178.24
KBWM-2403/4230V 90V, 180V 1NEMA 1 $189.39

Description

The KBWM Series of DC Drives are rated for 1/100 to 3/4 horsepower motors and are housed in a NEMA 1 enclosure. These drives are the compact version of the Multi Drive™ (KBMD). This unidirectional SCR drive utilizes the KBMM speed control module, which prevents motor failure due to demagnetization. It requires a Plug-in Horsepower Resistor to operate and includes an AC line fuse and an Armature fuse holder.

Electrical Data
HP CT Rating
1/3 HP
HP VT Rating
-
Input
Output
Voltage
115V
90V
Max CT Current
5
3.5
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
1 lb
Height
6.8"
Width
3.7"
Depth
2.9"
Enclosure
NEMA 1
Degree of Protection (IP)
IP50
Frame
-
Ambient Temp
45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
