KB Electronics KBWD-16

KB Electronics · KBWD - DC Drive

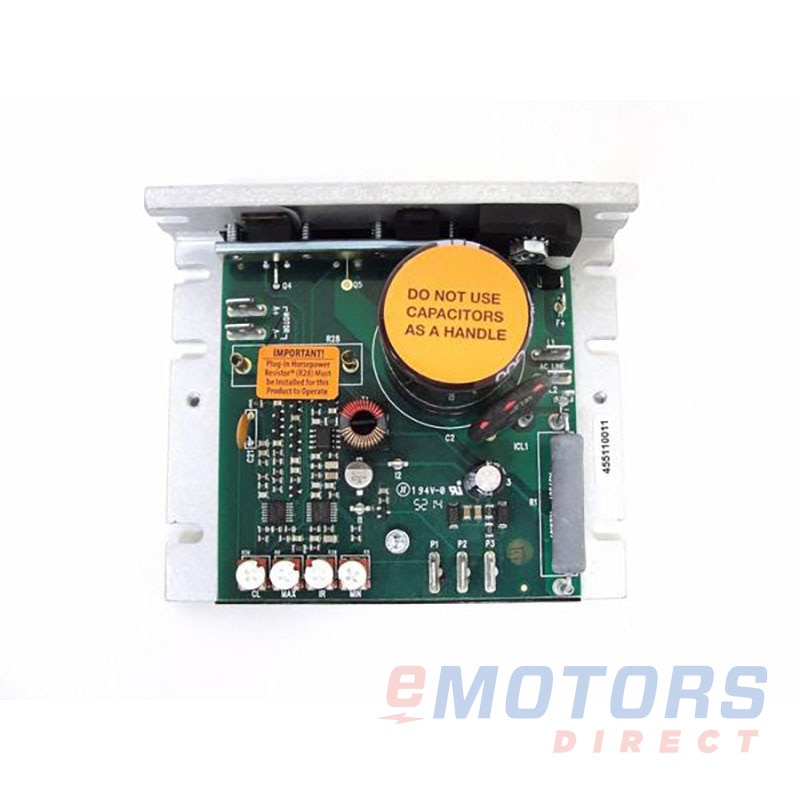

KBWD PWM Drive - Chassis 1/2 HP 130V (No.8607)
Catalog Number: KBWD-16
Part Number: 8607
HP
1/2
Input Voltage
115V
Output Voltage
130V
Input Phase
1
Enclosure
Chassis

Product-line overview

Our selection of KB Electronics DC drives offers a wide variety of drives for DC motor variable speed control. Select a drive rated for fractional HP up to 5 HP rated motors and a large selection of input and output voltage ratings. They feature enclosures from chassis to NEMA 1 and NEMA 4X.

This product requires a resistor and fuse. Please include the HP and voltage of the motor that the drive will use with. This will be included with your drive.

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

KB Electronics: KBWD - DC Drive (1)

KBWD-161/2115V 130V 1Chassis $164.45

Description

The KBWD Series of DC Drives provide a low cost solution for pulse-width-modulated (PWM) control applications. Their compact size allows for direct replacement of SCR drives. Features include instantaneous short circuit and under voltage protection. A 5k ohm potentiometer is included. This drive requires a Plug-in Horsepower Resistor, which eliminates the need for IR Comp and CL calibration.

Electrical Data
HP CT Rating
1/2 HP
HP VT Rating
-
Input
Output
Voltage
115V
130V
Max CT Current
10
5
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
1 lb
Height
3.63"
Width
4.3"
Depth
2.5"
Enclosure
Chassis
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
