KB Electronics KBRG-225D

KB Electronics · KBRG - DC Drive

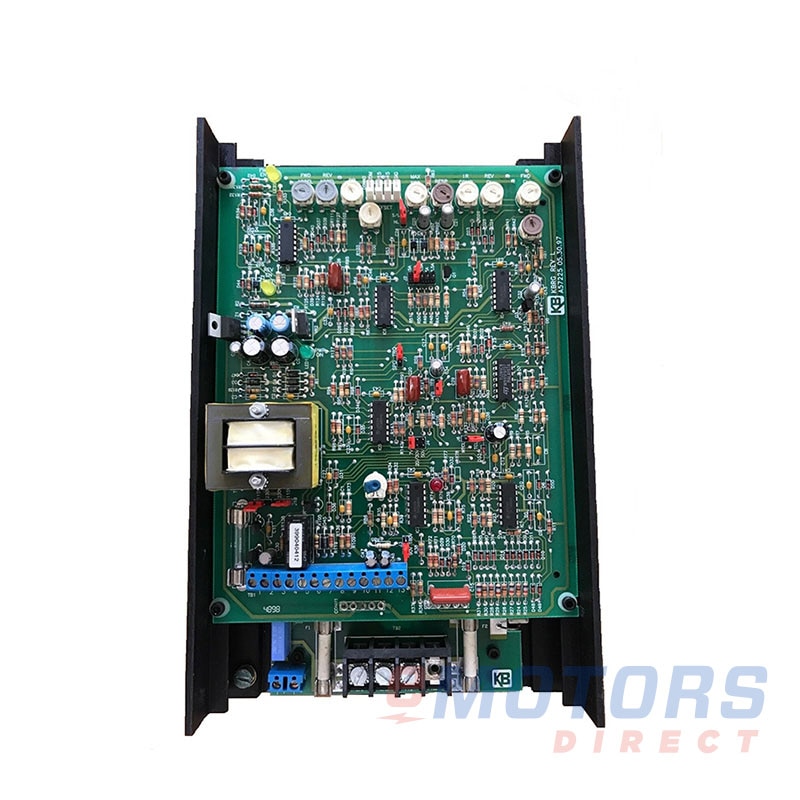

KBRG SCR Regen Reversing Drive - Chassis 3 HP 180V (No.8800)
Catalog Number: KBRG-225D
Part Number: 8800
HP
1 1/2, 3
Input Voltage
115V, 230V
Output Voltage
180V, 90V
Input Phase
1
Enclosure
Chassis

Product-line overview

Our selection of KB Electronics DC drives offers a wide variety of drives for DC motor variable speed control. Select a drive rated for fractional HP up to 5 HP rated motors and a large selection of input and output voltage ratings. They feature enclosures from chassis to NEMA 1 and NEMA 4X.

This product requires a resistor and fuse. Please include the HP and voltage of the motor that the drive will use with. This will be included with your drive.

Availability: Factory Order

Need it Now?

See our for equivalent alternatives

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

KB Electronics: KBRG - DC Drive (3)

KBRG-240D1, 2115V, 230V 90V, 180V 1Chassis $557.58
KBRG-225D1 1/2, 3115V, 230V 90V, 180V 1Chassis $622.49
KBRG-2555230V 180V 1Chassis $763.64

Description

The KBRG Series of DC Drives are rated for 1/8 to 5 horsepower Permanent Magnet and Shunt wound motors. These are full-wave regenerative controls, which allow forward and reverse torque in both speed directions.

Electrical Data
HP CT Rating
1 1/2,3 HP
HP VT Rating
-
Input
Output
Voltage
115V,230V
180V,90V
Max CT Current
24
16
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
5 lb
Height
10"
Width
7.7"
Depth
3.4"
Enclosure
Chassis
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
