KB Electronics KBIC-125

KB Electronics · KBIC - DC Drive

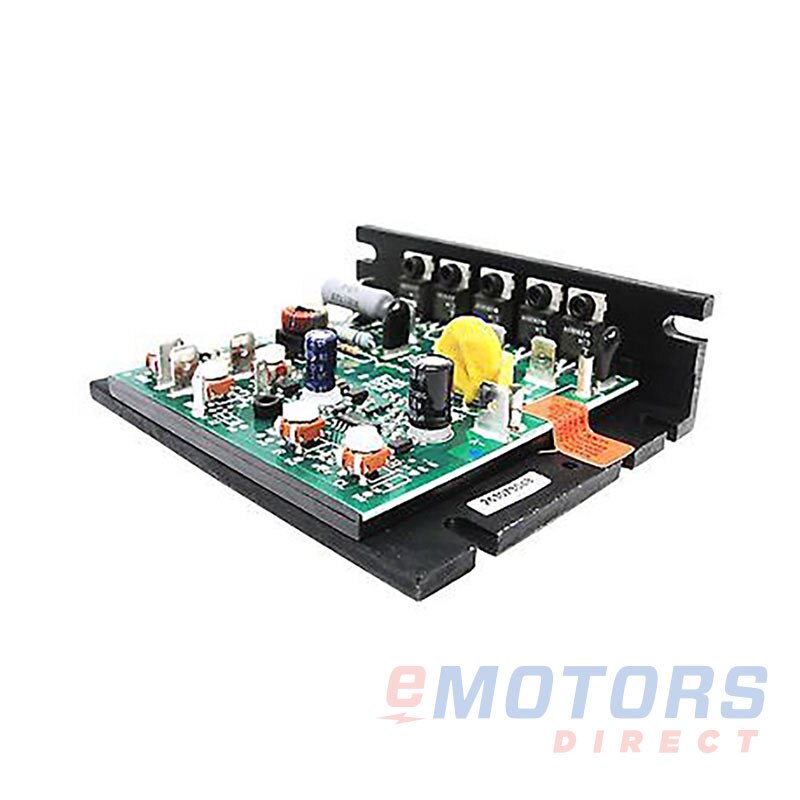

KBIC SCR Drive - Chassis 3/4 HP 90V (No.9433)
Catalog Number: KBIC-125
Part Number: 9433
HP
3/4
Input Voltage
115V
Output Voltage
90V
Input Phase
1
Enclosure
Chassis

Product-line overview

Our selection of KB Electronics DC drives offers a wide variety of drives for DC motor variable speed control. Select a drive rated for fractional HP up to 5 HP rated motors and a large selection of input and output voltage ratings. They feature enclosures from chassis to NEMA 1 and NEMA 4X.

This product requires a resistor and fuse. Please include the HP and voltage of the motor that the drive will use with. This will be included with your drive.

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Description

The KBIC Series of DC Drives are rated for 1/100 to 3 horsepower. All models can be used on a wide range of motor horsepower by inserting a Plug-In Horsepower Resistor, which is required to operate the drive. Speed range is 50:1 with load regulation of 1% of base speed. A 5k ohm potentiometer is included.

Electrical Data
HP CT Rating
3/4 HP
HP VT Rating
-
Input
Output
Voltage
115V
90V
Max CT Current
12
8
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
1 lb
Height
3.63"
Width
4.3"
Depth
1.25"
Enclosure
Chassis
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
