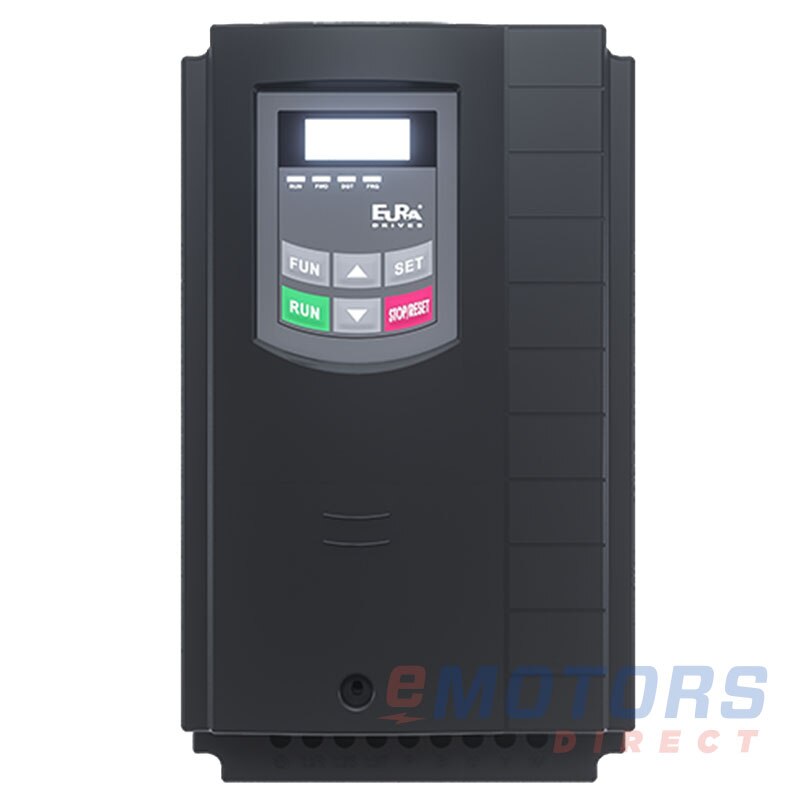

EURA Drives E2100-1100T3C61

EURA Drives · E2100
150 HP (220 amps) 480V Three Phase IP20 EURA Drive
Catalog Number: E2100-1100T3C61
Alternative Number: E2100-1100T3C61U5F15A603B1R3
HP
150
Input Voltage
460V
Output Voltage
460V
Input Phase
3
Enclosure
IP20

Availability: Factory Order

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

EURA Drives: E2100 (52)

E2100-0007S2E11230V 230V 1IP20 $160.51
E2100-0002S2E11/4230V 230V 1IP20 $174.55
E2100-0004S2E11/2230V 230V 1IP20 $177.06
E2100-0007S1E21115V 230V 1IP20 $189.41
E2100-0007T2E11230V 230V 3IP20 $201.91
E2100-0004S1E21/2115V 230V 1IP20 $213.50
E2100-0015T2E12230V 230V 3IP20 $226.86
E2100-0004T2E11/2230V 230V 3IP20 $243.99
E2100-0015S1E42115V 230V 1IP20 $255.29
E2100-0022S2E23230V 230V 1IP20 $281.39
E2100-0015S2E12230V 230V 1IP20 $289.25
E2100-0040T2E45230V 230V 3IP20 $307.78
E2100-0015T3E12460V 460V 3IP20 $340.54
E2100-0022T2E23230V 230V 3IP20 $351.75
E2100-0022S1E43115V 230V 1IP20 $351.75
E2100-0022T3E23460V 460V 3IP20 $375.86
E2100-0004T3E11/2460V 460V 3IP20 $379.25
E2100-0040T3E25460V 460V 3IP20 $389.77
E2100-0007T3E11460V 460V 3IP20 $403.76
E2100-0007T5E2U81575V 575V 3IP20 $467.56
E2100-0007T5E2U51575V 575V 3IP20 $467.64
E2100-0015T5E2U52575V 575V 3IP20 $486.09
E2100-0030T3E24460V 460V 3IP20 $487.21
E2100-0022T5E2U83575V 575V 3IP20 $519.63
E2100-0015T5E2U82575V 575V 3IP20 $519.63
E2100-0022T5E2U53575V 575V 3IP20 $519.63
E2100-0075T3E410460V 460V 3IP20 $538.23
E2100-0055T3E47 1/2460V 460V 3IP20 $538.24
E2100-0040T5E4U55 1/2575V 575V 3IP20 $558.79
E2100-0055T2E57 1/2230V 230V 3IP20 $648.01
E2100-0055T5E4U87 1/2575V 575V 3IP20 $681.52
E2100-0040T5E4U85 1/2575V 575V 3IP20 $681.52
E2100-0055T5E4U17 1/2575V 575V 3IP20 $681.52
E2100-0075T2E610230V 230V 3IP20 $791.33
E2100-0030T2E24230V 230V 3IP20 $822.61
E2100-0075T5E4U810575V 575V 3IP20 $837.07
E2100-0075T5E4U510575V 575V 3IP20 $837.07
E2100-0110T2E615230V 230V 3IP20 $876.55
E2100-0110T3E515460V 460V 3IP20 $905.23
E2100-0220T3E630460V 460V 3IP20 $1,285.48
E2100-0150T3E520460V 460V 3IP20 $1,318.05
E2100-0185T3E625460V 460V 3IP20 $1,426.38
E2100-0300T3E640460V 460V 3IP20 $3,906.64
E2100-0370T3E750460V 460V 3IP20 $4,275.45
E2100-0450T3E760460V 460V 3IP20 $5,031.00
E2100-0900T3C61120460V 460V 3IP20 $7,062.61
E2100-1320T3C61175460V 460V 3IP20 $8,732.81
E2100-1100T3C61150460V 460V 3IP20 $8,825.93
E2100-1850T3C8250460V 460V 3IP20 $13,455.01
E2100-1600T3C7215460V 460V 3IP20 $13,455.01
Electrical Data
HP CT Rating
150 HP
HP VT Rating
150 HP
Input
Output
Voltage
460V
460V
Max CT Current
220
-
Max VT Current
220
-
Phase
3
3
Hz Range
50-60
0.5-590
Physical Data
Weight
138.89 lb
Height
37.01"
Width
20.87"
Depth
18.5"
Enclosure
IP20
Degree of Protection (IP)
IP20
Frame
C61
Ambient Temp
-10°C to + 50°C
Additional Data
Agency Approvals
UL & CE
Country of Origin
CHINA
Warranty
2-YEAR
