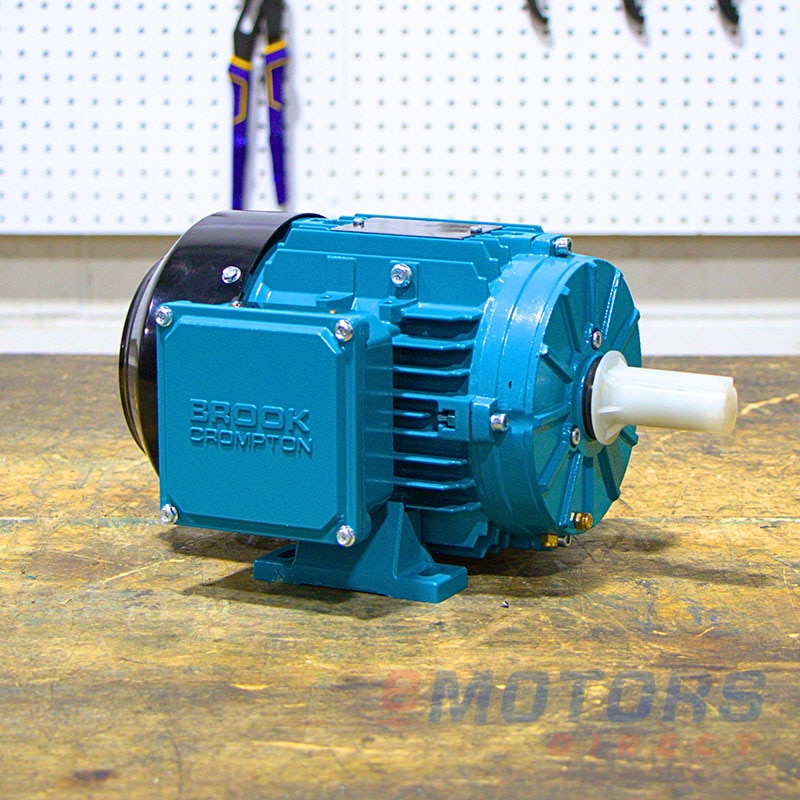

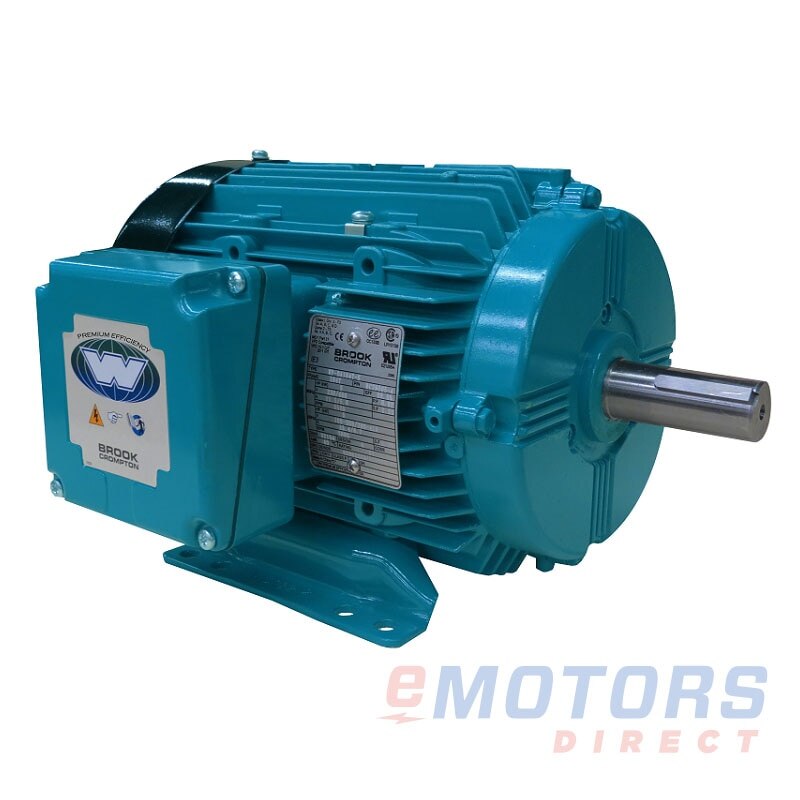

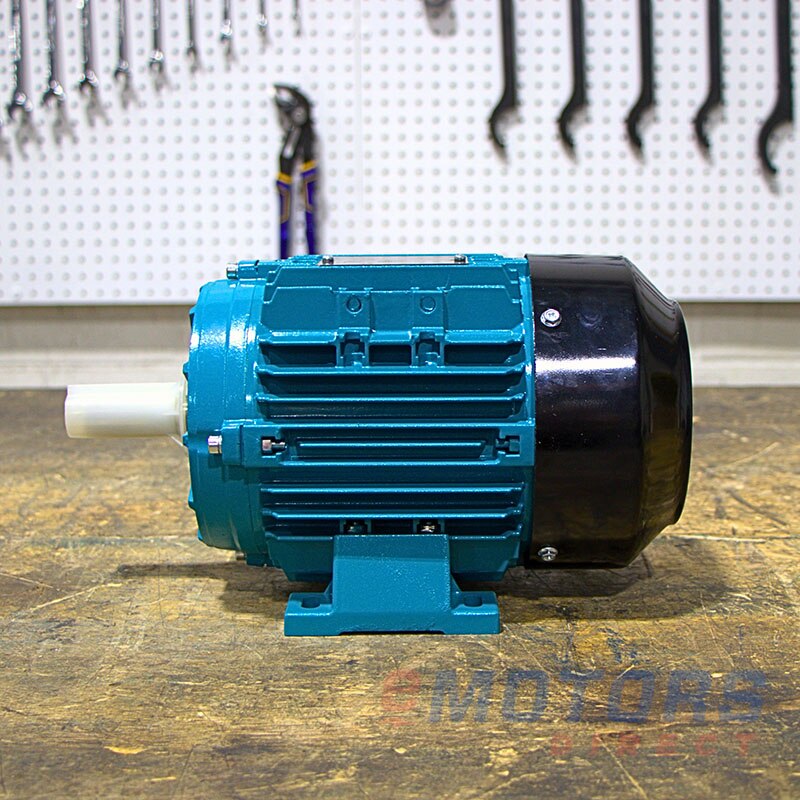

Brook Crompton PF4N001-5

Brook Crompton · PE III Premium Aluminum
5.0
1 HP 1745 RPM 575 V 56 TEFC Severe Duty Motors
Catalog Number: PF4N001-5
Model Number: -
HP
1
RPM
1800
Voltage
575V
Frame
56
Phase
3
Enclosure
TEFC
Material
Aluminum
Mounting
Rigid,Round Body

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1745 RPM
Rated Motor Voltage
575V
Rated Motor Current
1.28 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
L
Nominal Efficiency
85.5
Nominal Power Factor
69
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
30:1
2
Constant Torque
15:1
4
General Data
Frame
56
Enclosure
TEFC
Mounting
Rigid,Round Body
Number of Speeds
-
Approximate Weight
26lb
Double Drilled
No
Frame Material
Aluminum
C-Dimension
11.5"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1/F2/F3
Removable Feet
No
Orientation
Horizontal / Vertical
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
80
Temp Code
T3
Mechanical Data
DE Bearing
6204ZZ
NDE Bearing
6204ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
LITHIUM TYPE
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1, Div 2, Groups A,B,C,D Zone 2, Groups IIA & IIB T3
Temp Code (Sine Wave Power)
T3
Temp Code (VFD Power)
T3
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
1-Year
