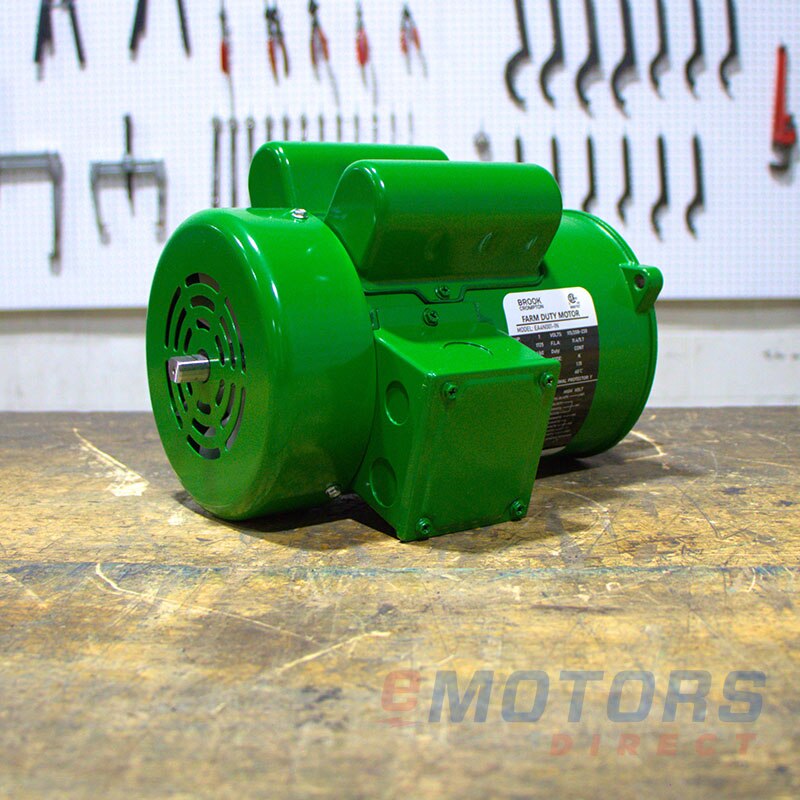

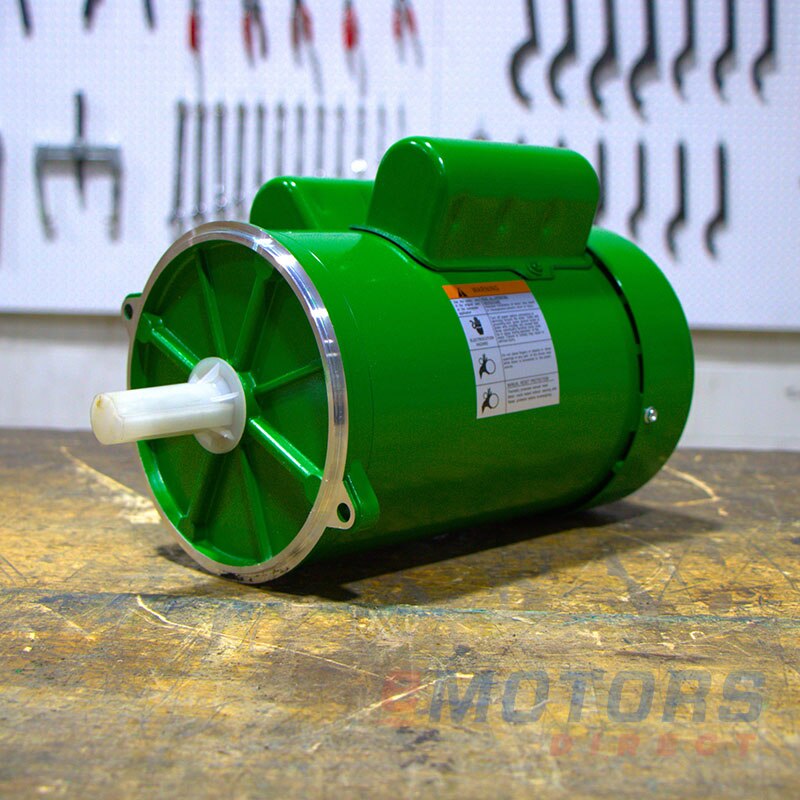

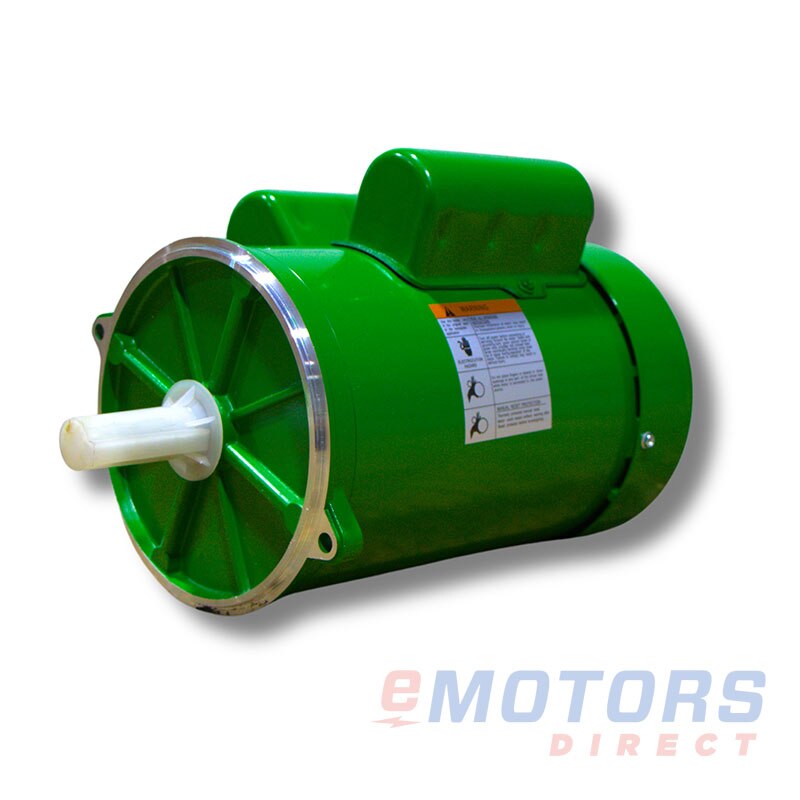

Brook Crompton EA4N1.5-1N

Brook Crompton · NEMA Farm Duty & Auger Duty Motors
1 1/2 HP 1725 RPM 115/208-230 V 56Y TEFC Farm Duty
Catalog Number: EA4N1.5-1N
Model Number: EA4N1.5-1N
HP
1 1/2
RPM
1800
Voltage
115V,208-230V
Frame
56Y
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
N-Flange

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your zip code.

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
1 1/2 HP
1.125 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
14.6/7.3 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
77
Nominal Power Factor
87
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56Y
Enclosure
TEFC
Mounting
N-Flange
Number of Speeds
-
Approximate Weight
32lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.2"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.705"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
1-Year
